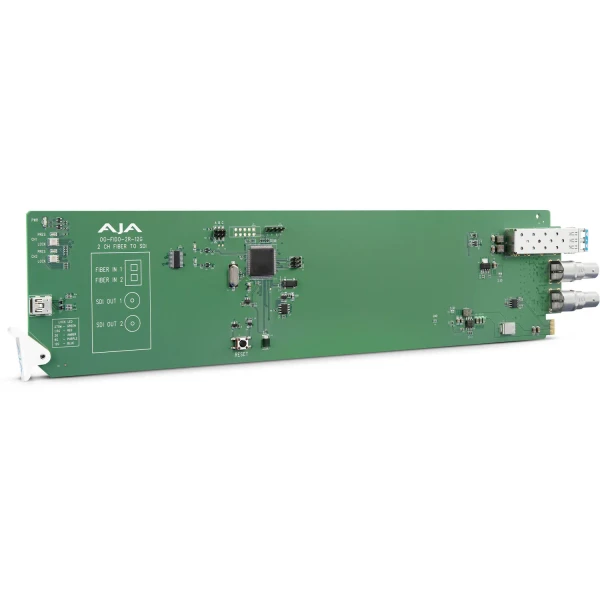

This AJA OG-FiDO-2R-12G openGear 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver is a state of the art, openGear compatible, 2-channel Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable.
The two fiber inputs are completely independent allowing different 12G-SDI rates to be carried on each channel.
AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows, macOS and Linux, offering remote control and monitoring over a PC or local network.
READ MORE
AJA OG-FiDO-2R-12G openGear 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver Features:
- Video Formats: 270 Mbps - 12 Gbps, format agnostic
- Inputs: 2x Independent Single-Mode LC Fiber Connectors
- Outputs: 2x Independent 12G-SDI, BNC connectors
- Support for HDR - High Dynamic Range video
- Supports pass-through of SDI metadata, including HDR
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- Nominal Wavelength; Rx :1260-1620 nm
- Hot-swappable
- Remote Ethernet Monitor through Ross DashBoard software
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Power: 3 watts Max
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-FiDO-2R-12G openGear 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver from HDTV Supply today?
AJA OG-FiDO-2R-12G openGear 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver Specifications:
- Video Formats: 270 Mbps - 12 Gbps, format agnostic
- Video Input Digital
- 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
- Optical Sensitivity: -9 dBm (Max) for 12 Gbps, -10 dBm (Max) for 270 Mbps, 1.5 Gbps, 3 Gbps & 6 Gbps
- Overload Power: -2 dBm (Min)
- Video Output Digital
- 2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
- Reclocking:
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.967 Gbps
- 2.970 Gbps
- 5.934 Gbps
- 5.940 Gbps
- 11.868 Gbps
- 11.880 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
- Size:
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight: 0.5 lb (0.3 kg)
- Power: openGear frame compatible, 3.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
