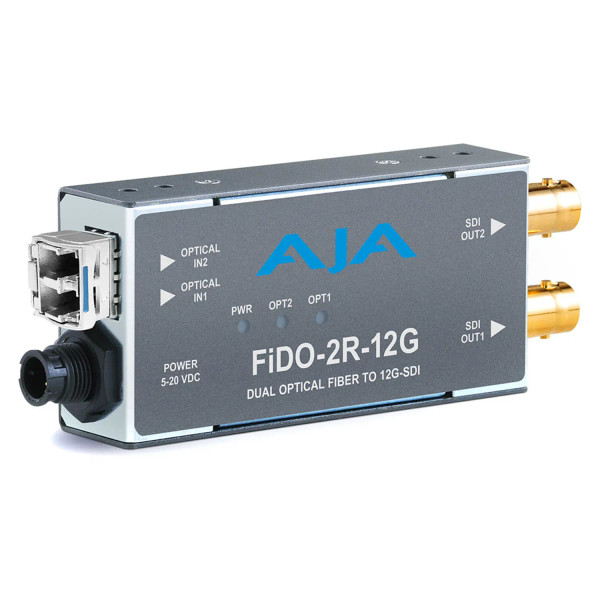

This AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver offers unmatched flexibility and cost efficiency for 12G/6G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single mode fiber optic cable.
FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver Features:
- 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver
- 2 simplex or 1 duplex connection (LC connector)
- 2 independent channels of 12G-SDI output, which also support 6G/3G/HD/SD-SDI
- Both Fiber-to-SDI paths are completely independent
- Supports pass-through of SDI metadata, including HDR
- Uses 5-20VDC power (Universal power supply included)
- Five year warranty
Why not buy this AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver from HDTV Supply today?
AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver Specifications:
- Video Formats
- 270 Mbps - 12 Gbps, format agnostic
- Video Input Digital
- 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
- Optical Sensitivity: -9 dBm (Max) for 12 Gbps, -10 dBm (Max) for 270 Mbps, 1.5 Gbps, 3 Gbps & 6 Gbps
- Overload Power: -2 dBm (Min)
- Video Output Digital
- 2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
- Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
- Size (w x d x h)
- 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
- Weight
- 0.4 lb (0.2 kg)
- Power
- 2 watts, max
- Uses 5-20VDC power, universal power supply included
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
