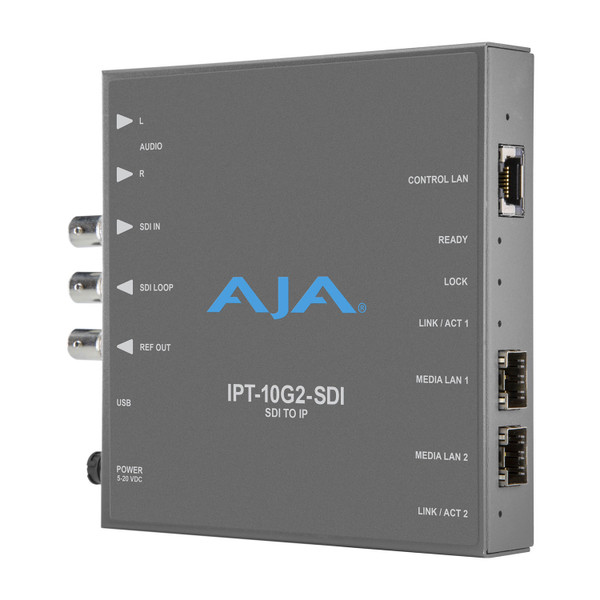

This AJA IPT-10G2-SDI 3G-SDI to SMPTE ST 2110 IP Mini-Converter supporting upto 1080p60 video, this mini-converter provides two interfaces for use with separately available 10 GbE SFP+ modules.
Hitless SMPTE ST 2022-7 switching for critical transmissions is offered via the redundant interface design.
The IPT-10G2-SDI Mini-Converter processes up to 16 channels of SDI-embedded audio or analog stereo audio input via its RCA inputs.
Control options include a 1 GbE RJ45 LAN socket for customizable, browser-based control on any platform and on REST clients and a USB Mini-B port for initial configuration and updates.
Versatile power features include a universal power supply with a locking power connector and international plug adapters and a separately available D-Tap cable for powering the unit via battery on remote locations.
The AJA IPT-10G2-SDI Mini-Converter features a durable, fan-less housing that is compact enough to fit directly on your monitor or camera rig.
AJA IPT-10G2-SDI 3G-SDI to SMPTE ST 2110 IP Mini-Converter Features:
- Converts an 3G-SDI source to highly efficient SMPTE ST 2100 IP transmission
- Two 10 GbE SFP+ cages for media LAN enable redundant, hitless switching
- Single 3G-SDI input supports up to 1080p60, 4:2:2, 10-bit YCbCr video
- Single 1 GbE RJ45 LAN control socket
- Status lights on SFP+ and RJ45 sockets
- Compact and durable fanless design
- 3G-SDI loop-out
- Full 10-bit pixel processing pipeline
- Dual RCA analog audio inputs
- Single USB Mini-B port for initial configuration and updates
- Built-in server enables complete control from any web browser
- Customizable control via AJA REST API
Why not buy this AJA IPT-10G2-SDI 3G-SDI to SMPTE ST 2110 IP Mini-Converter from HDTV Supply today?
AJA IPT-10G2-SDI 3G-SDI to SMPTE ST 2110 IP Mini-Converter Specifications:
- Inputs/Outputs
- Video I/O
- Input
- 1x BNC (3G-SDI) Female
- Output
- 1x BNC (3G-SDI) Female (Loop Output)
- Input
- Audio I/O
- Input
- 2x RCA Analog Female
- Input
- Other I/O
- Input/Output
- 1x RJ45 (LAN)
- Input/Output
- Expansion Slots
- 2x SFP+ Slot
- Video I/O
- Format Support
- Video Resolution
- SDI Input (10-Bit 4:2:2)
- 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
- 1920 x 1080i at 50 fps
- 1280 x 720 at 50/59.94/60 fps
- SDI Input (10-Bit 4:2:2)
- Audio Format
- AES/EBU Input: 48 kHz / 24-Bit
- Embedded Audio
- SDI Input: 16-Channel
- Reclocking
- No
- Video Resolution
- Standards
- Video Standard Compliance
- SMPTE: ST-2022-7/ST-2110
- Broadcast System Compatibility
- NTSC
- Video Standard Compliance
- Hardware
- Wireless
- No
- Wireless
- Power
- Power I/O
- 1x Proprietary (5 to 20 VDC ) Input
- Power Consumption
- Power Supply: 100 to 240 VAC (13 W)
- Power I/O
- General
- Operating Conditions
- 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
- Storage Conditions
- -40 to 140°F / -40 to 60°C
- Dimensions
- 5.07 x 5.06 x 0.94" / 128.78 x 128.52 x 23.88 mm
- Weight
- 0.6 lb / 0.27 kg
- Operating Conditions
- Packaging Info
- Package Weight
- 2.4 lb
- Box Dimensions (LxWxH)
- 7.2 x 5.6 x 4.2"
