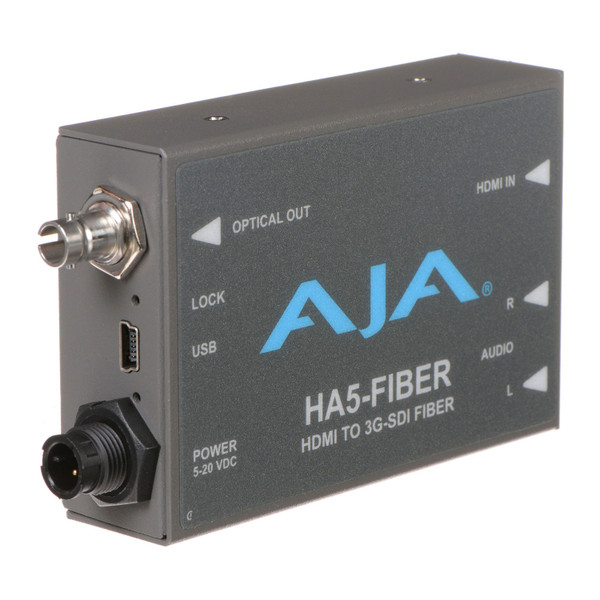

This AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter accepting HDMI signals up to 1080p60 along with embedded multichannel audio or analog RCA audio, the HA5-Fiber converts incoming video and audio to a studio-standard 3G-SDI signal, and sends it out through the single-mode ST terminal.
Single-mode fiber offers long transmission distances, up to six miles, without degradation or signal loss, and since the HA-5 Fiber converts to 3G-SDI at the source, no extra conversion equipment is necessary.
As with AJA's other converters, the HA-5 Fiber is compatible with the Mini-Config software (available for free on AJA's website) for advanced configuration.
AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter Features:
- Converts HDMI to 3G-SDI over Fiber
- Supports up to 1080p60 Resolution
- Up to 6 mi Transmission Distance
- Supports Embedded HDMI Audio
- Analog Audio Input
- AJA Mini-Config Compatible
Why not buy this AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter from HDTV Supply today?
AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter Specifications:
- Inputs
- 1 x HDMI
- 1 x Stereo RCA analog audio
- Outputs
- 1 x ST single-mode fiber
- Format Support
- Input:
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 625p
- 625i
- 576p
- 525p
- NTSC
- PAL
- Output:
- 1080p 23.98/24/25/29.97/30
- 1080i 25/29.97/30
- 720p 50/59.94/60
- NTSC
- PAL
- Input:
- Optical Output
- Wavelength: 1310 nm
- Output Power: -2 dBm, typical
- Power Supply
- Input: 100-240 VAC, 50/60 Hz
- Output: 5 VDC, 4.5 W
- Dimensions
- 4.4 x 2.4 x 1.0" / 112 x 61 x 25 mm
- Weight
- 0.3 lb / 0.2 kg
- Packaging Info
- Package Weight
- 1.405 lb
- Box Dimensions (LxWxH)
- 12.2 x 5.7 x 3.8"
- Package Weight
