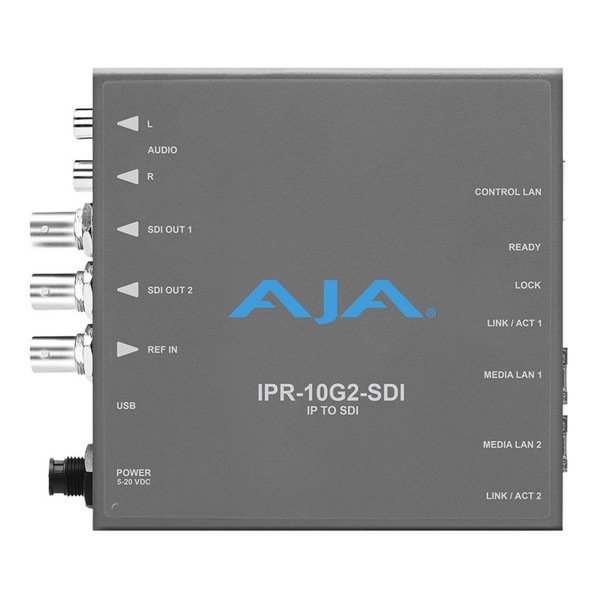

This AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI Mini-Converter enables you to monitor and output SMPTE ST 2110 video (RTP) and audio (AES67) over 10 GigE network connectivity.
Featuring two 10 GigE SFP+ cages that support optional SFP+ modules of your choice, the converter allows you to connect an IP signal, which it decodes and formats for source monitoring and dual 3G-SDI output.
Audio is output embedded as well as over L/R analog RCA jacks.
The two SFP+ cages allow "hitless switching" so there's no loss of frame synchronization in critical applications.
The converter has a compact, rugged, and fanless design suitable for use in studio and in the field.
AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI Mini-Converter Features:
- SMPTE ST 2110 audio and video receiver
- 2 x 3G-SDI outputs with mirrored source video
- Supports up to 1080p60, 10-bit, YCbCr 4:2:2 uncompressed
- Rugged, fanless design
- 2 x 10 GigE SFP+ cages with status lights for media LAN, allowing hitless switching (SFPs not included)
- 1 x 1 GigE RJ-45 port (with a status light) for control LAN — IEC 60603-7 for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- Full 10-bit pixel processing pipeline
- Embedded SDI audio output (up to 8 channels)
- L/R RCA analog audio output
- 1 x mini-USB 2.0 port (IEC 62680-1) for initial network configuration with AJA eMini-Setup software
- Complete control interface accessible on any Web browser from a built-in Web server
- Customizable control with AJA REST API
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
Why not buy this AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI Mini-Converter from HDTV Supply today?
AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI Mini-Converter Specifications:
- Inputs/Outputs
- Video I/O
- Output: 2x BNC (3G-SDI)
- Audio I/O
- Output: 1x 2RCA Stereo Analog
- Other I/O
- Input
- 1x RJ45
- 1x BNC (Reference)
- 1x Mini-USB (Firmware)
- Input
- Expansion Slots: 2x SFP+ Slot
- Latency: No
- Video I/O
- Format Support
- Video Resolution
- SDI Output
- 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
- 1920 x 1080i at 50/59.94 fps
- 1280 x 720 at 50/59.94/60 fps
- SDI Output
- Reclocking: No
- Video Resolution
- Standards
- Video Standard Compliance: SMPTE: ST-2110
- HDR Support: No
- Broadcast System Compatibility: NTSC
- IP Streaming
- IP Video
- Decoding via RTP
- 640 x 480 to 1920 x 1080 at 23.98/24/25/29.97/30/50/29.97p/59.94/60/59.94pfps
- IP Audio: Decoding
- IP Video
- Hardware
- Wireless: No
- Power
- Power Consumption
- Device: 5 to 20 VDC (13 W)
- Power Consumption
- General
- Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
- Storage Conditions: -40 to 140°F / -40 to 60°C
- Dimensions: 5.07 x 5.06 x 0.94" / 128.8 x 128.5 x 23.9 mm
- Weight: 0.6 lb / 0.27 kg
- Packaging Info
- Package Weight: 2.3 lb
- Box Dimensions (LxWxH): 7.8 x 5.8 x 4"
