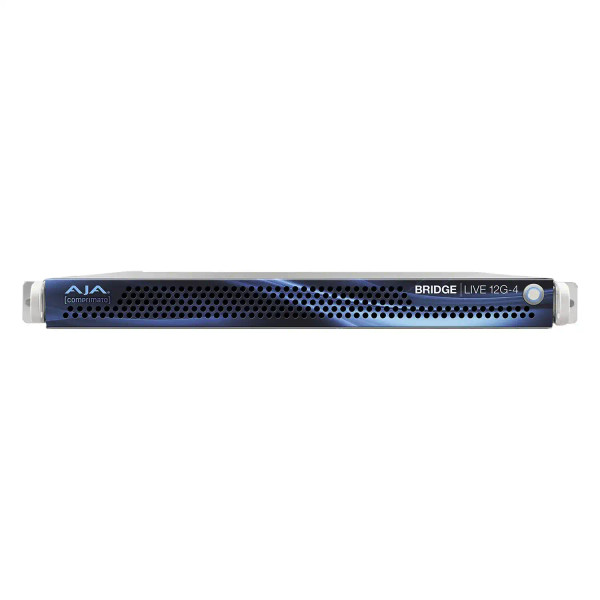

This AJA BLVE-12G-4 High Density SDI/IP Streaming Solutions is a broadcast quality, low-latency turnkey system that enables Remote Production (REMI), Synchronous Multi-Channel Video Contribution, Remote Collaboration, Direct to Audience Streaming, and Multi-Bit Rate/Multi-Format Delivery via a diverse range of IP video standards, SDI, or both.
New to the BRIDGE LIVE family is the BRIDGE LIVE 12G-4, a high-density multi-channel UHD version of BRIDGE LIVE that supports up to 4x bidirectional 12G-SDI I/O.
BRIDGE LIVE, a collaborative effort between AJA and Comprimato, is designed to provide the performance, reliability, and user-friendly interface required for critical live encode, decode, or transcode applications.
Via two models equipped with either 12G-SDI or 3G-SDI I/O, BRIDGE LIVE offers the necessary power and flexibility to enable real-time, bidirectional encoding, decoding, and transcoding for demanding UHD or HD workflows.
BRIDGE LIVE is an indispensable component of any contemporary video production toolkit.
BRIDGE LIVE, with its compact and robust 1RU form factor, offers redundant power supplies and a comprehensive three-year warranty (with an option to extend it to five-years), providing steadfast reliability for demanding applications such as global live concerts and sporting events.
BRIDGE LIVE empowers reliable and secure workflows across a wide range of productions, encompassing REMI, interviews, live event streaming, synchronous multi-camera backhaul with HDR, cloud contribution, program return, confidence monitoring, collaborative production, and ABR ladder profiles tailored for OTT packaging.
BRIDGE LIVE provides simultaneous, dependable, and secure operations via dedicated lines or the public internet.
AJA BLVE-12G-4 High Density SDI/IP Streaming Solutions Features:
- BRIDGE LIVE 12G-4: 12G-SDI I/O supports multi-channel UHD (up to 4x channels)
- BRIDGE LIVE 3G-8: 3G-SDI I/O supports multi-channel HD (up to 8x channels) and multiple-frame-rate families simultaneously
- Bidirectional Encode/Decode/Transcode; H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2), NDI*, JPEG 2000* (TR-01), and JPEG XS* (TR-07)
- Synchronous Multi-Channel / Multi-System Transport for SDI Backhaul or Cloud Delivery
- Protocols: SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
- Transports: MPEG-TS, NDI, AVC-TS, Fragmented MP4
- NDI Multiple Discovery Server and NDI Groups support
- Multi-bit rate/format distribution, ABR Ladder Profiles for OTT hand-off
- Selectable profiles for 12, 10, and 8-bit, 4:2:2 and 4:2:0 depending on the codec
- Unmatched metadata capabilities including MPEG-2 ANC, SMPTE 2038, Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21, H.264 SEI)
- Hitless Redundancy via ST 2022-7 and SRT bonding
- HDR/SDR from SDI source to SDI destination in BRIDGE LIVE end-to-end configurations
- Remote WebUI or local GUI for easy administration, control, and operation
- Monitoring, Control, and Automation supported via REST API or SNMP
- Turnkey 1RU rackmountable, enterprise class form factor
- Dual 10 GigE interface for control and transport
- Dual power supplies for critical application redundancy
- Three-year warranty
Why not buy this AJA BLVE-12G-4 High Density SDI/IP Streaming Solutions from HDTV Supply today?
AJA BLVE-12G-4 High Density SDI/IP Streaming Solutions Specifications:
- Input Video Formats
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 525i, 625i
- Video Codec Support
- H.264/MPEG-4 (Part 10) Encoder, producing progressive output
- Video Encoding Parameters
- 100 kbps to 20 Mbps
- Bit rate may be set independently for Encoder 1 and Encoder 2
- Up to 1080p60
- Supports Baseline, Main, and High Profiles
- Audio Encoding Parameters
- 32 kbps to 256 kbps
- 48 kHz 2-channel stereo
- MPEG-4 AAC-LC
- Protocols
- RTMP, RTMPS, RTMPT, RTMPE, RTMPTE, RTMPTS
- RTSP
- HLS
- RTP-TS/UDP-TS Unicast and Multicast
- SRT (caller mode and listener mode)
- RTSP and HLS client sessions combined limited to a total of 10
- RTSP limited to a single server session
- Storage
- 1x USB port (USB 2.0 and USB 3.0 media, exFAT or FAT32)
- 1x SD card slot, SD, SDHC, SDXC cards (exFAT)
- Mounted Network Share (SMB or NFS)
- Video Input Digital
- 1x 3G-SDI, SMPTE-259/292/296/424, 10-bit
- Single Link 4:2:2 (1x BNC)
- 1x HDMI Standard Type A connector
- HDMI v1.4a, RGB or YCbCr
- Video Output Digital
- 1x 3G-SDI, SMPTE-259/292/296/424, 10-bit
- Single Link 4:2:2 (1x BNC)
- 1x HDMI Standard Type A connector
- HDMI v1.4a, RGB or YCbCr
- Audio Input Digital
- 2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
- 2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
- Audio Input Analog
- 2-channel, Analog (-10dBV Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
- Audio Output Digital
- 2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
- 2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
- Audio Output Analog
- 2-channel, Analog (Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
- Network Interface
- 10/100/1000 Ethernet (RJ-45)
- Embedded web server for Configuration and Control
- User Interface
- Stream Button
- Record Button
- Web UI
- Simple Web Configuration via AJA eMini-Setup (macOS and Windows)
- Integrated calendar
- Control and Automation
- Integrated calendar scheduler
- Support remote ICS calendars
- Scriptable REST control API
- Closed Captioning supported
- Size (w x d x h)
- 8.50" x 5.5" x 1.02" (215.9 x 139.7 x 25.91 mm)
- Weight
- 1.2 lb (0.52 kg)
- Power
- External power supply required
- Enclosure: 12Vdc 4-pin mini XLR
- AC adapter included: 100-240 VAC 50/60 Hz, universal input, 12V– 60W Max
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
