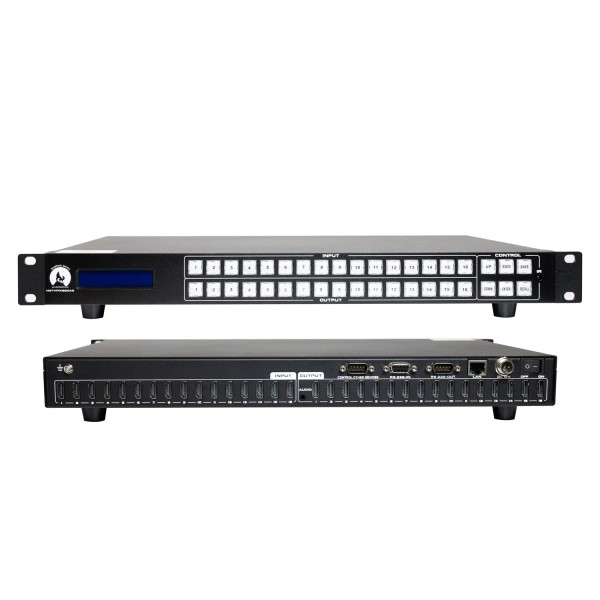

WolfPack 16x16 4K30 HDMI Matrix Switcher – Apps & WEB GUI, RS232/TCP/IP Control
16x16 HDMI matrix switcher for commercial AV routing, video distribution, and multi-display setups, sold exclusively by HDTV Supply.
Overview
The WolfPack 16x16 HDMI matrix switcher from HDTV Supply routes 16 HDMI input sources to 16 displays at resolutions up to 4K30. Designed for professional AV applications, this fixed 1U unit features smart EDID management, web GUI control, and iOS/Android app control. All HDMI ports are HDCP compliant, and OUT1 includes a 3.5mm audio output. It supports Blu-ray players, set-top boxes, gaming consoles, and home theater systems for sports bars, corporate AV, hospitality, and educational venues.
What Is the WolfPack 16x16 HDMI Matrix Switcher?
The WolfPack 16x16 HDMI matrix switcher from HDTV Supply is a 1U fixed-height AV device that allows routing 16 HDMI inputs to 16 outputs simultaneously. It provides professional-grade video distribution for commercial installations such as sports bars, hotels, corporate meeting rooms, and broadcast applications. With multiple control options including IR remote, front panel push buttons, RS232, TCP/IP, web GUI, and iOS/Android app control, it simplifies integration while offering smart EDID management and HDCP compliance.
Key Features
16x16 HDMI Matrix
Supports 16 HDMI input and 16 HDMI output ports with OUT1 providing 3.5mm audio output, ideal for distributing video and audio across multiple displays.
Resolution & Compatibility
Supports resolutions up to 4K30 along with 480p, 576p, 720p, 1080i, and 1080p at various frame rates. Fully HDCP 1.4 compliant.
Control Methods
Multiple control options include IR remote, front panel push buttons with blue backlighting, RS232, TCP/IP, web GUI, and iOS/Android apps.
EDID Management
Smart EDID management allows selection of 8-output EDID or 15 internal presets, ensuring compatibility with all connected sources and displays.
Audio Support
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital, and DTS-HD Master Audio for high-quality multi-channel audio distribution.
Form Factor
Compact 1U rack-mountable chassis designed for commercial AV installations with included rack ears and 12V 5A power supply.
Why Choose WolfPack
WolfPack HDMI matrix switchers are designed and sold exclusively by HDTV Supply. With over 25 years of AV expertise, HDTV Supply provides direct technical support from specialists familiar with WolfPack products. The 16x16 matrix switcher delivers commercial-grade reliability, simplified integration, and flexible control options, ensuring peace of mind for professional AV installers and hospitality integrators.
Ideal Applications
- Sports Bars: Distribute multiple HDMI sources to displays throughout the venue.
- Hotels/Hospitality: Route live TV, media content, or presentations to guest rooms and conference areas.
- Corporate AV: Facilitate meeting room and boardroom video routing with HDCP-compliant HDMI sources.
- Universities & Classrooms: Stream educational content to multiple screens across lecture halls.
- Broadcast & Studios: Distribute HDMI signals for multi-display monitoring and control.
- Retail & Showrooms: Showcase high-resolution video content across multiple screens seamlessly.
Control and Integration
The WolfPack 16x16 HDMI matrix supports IR remote, front panel push buttons, RS232, TCP/IP, WEB GUI, and iOS/Android app control. Integration with existing networks is simplified through LAN or Wi-Fi connections, and the unit supports smart EDID management for seamless compatibility with commercial AV systems.
Technical Specifications
| Inputs | 16 HDMI ports |
| Outputs | 16 HDMI ports, OUT1 3.5mm audio |
| Resolution | 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 4K30 |
| HDCP | 1.4 |
| Control | IR, Front Panel, RS232, TCP/IP, WEB GUI, iOS/Android app |
| Power | AC 100-260V, 50/60Hz, DC 12V5A |
| Form Factor | 1U Rack Mountable |
| Dimensions | 480 x 252 x 44 mm |
| Weight | 3.5 kg |
| Operating Temp | 0–40°C / 32–104°F |
| Storage Temp | −20–60°C / −4–140°F |
What's Included
- WolfPack 16x16 HDMI Matrix Switcher (HDTVFIX1600E)
- DC 12V5A power adapter
- IR Remote Control
- Rack Mounting Ears (2 pcs)
FAQ
What resolution does the WolfPack 16x16 HDMI matrix support?
The WolfPack 16x16 HDMI matrix switcher from HDTV Supply supports resolutions up to 4K30, as well as 480p, 576p, 720p, 1080i, and 1080p at 24/30/50/60Hz.
What control options are available for the WolfPack 16x16 HDMI matrix?
WolfPack HDMI matrix switchers from HDTV Supply can be controlled via IR remote, front panel push buttons, RS232, TCP/IP, WEB GUI, and iOS/Android apps.
Does the WolfPack 16x16 matrix support EDID management?
Yes, the WolfPack 16x16 HDMI matrix from HDTV Supply supports smart EDID management including 8-output EDID and 15 internal EDID presets via the web interface.
What audio formats are supported by the WolfPack 16x16 HDMI matrix?
The WolfPack 16x16 HDMI matrix switcher supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital, and DTS-HD Master Audio.
