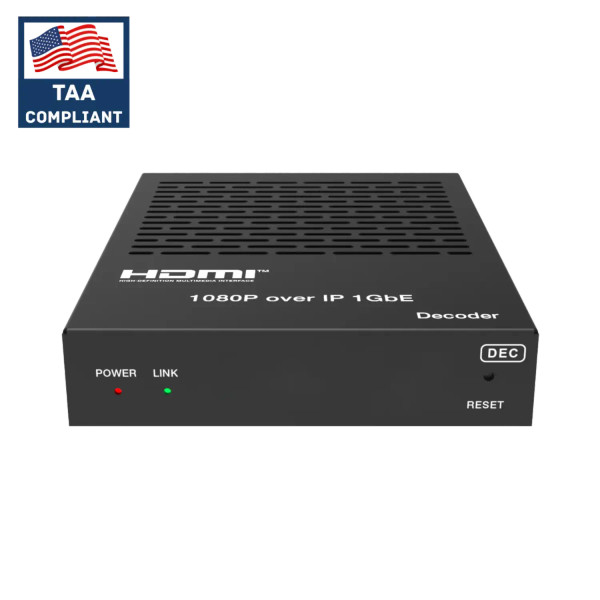

This Zenty ZT-491 1080P H.265 AV over IP with Video Wall Processing (IP260) Decoder - TAA-compliant enables the distribution of multiple HD video streams to multiple HD displays over a standard 100Mbps or 1Gbps network switch. It features configurable, high-quality H.265/H.264 video compression with low bandwidth requirements and supports resolutions up to 1920×1200@60Hz (4:4:4). Video signals can be transmitted up to 328 feet (100 meters) using CAT5e/6/6A/7 cables. The system also supports analog audio embedding and extraction, RS-232 control (including pass-through and guest modes), and matrix switching via RS-232—without the need for a controller box.
Zenty ZT-491 1080P H.265 AV over IP with Video Wall Processing (IP260) Decoder - TAA-compliant Features:
- HDMI 1.3 and HDCP 1.4 compliant
- Video resolution up to 1920x1200@60Hz 4:4:4
- Support 4.95Gbps video bandwidth
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
- Support point-to-point signal extension
- Support signal distribution, multicast mode, distributed matrix and video wall (up to 9x9) functions over a 1G Network Switch
- Intelligent video wall management makes it achievable of novel layout of wall configurations
- Support LPCM 2.0CH (32/44.1/48KHz) audio format
- Support audio embedding and extracting
- Support RS-232 control (pass-through & Guest mode)
- Support main stream and sub stream encoding modes
- Stream parameters can be configured via Web GUI or Controller Box
- Controlled via RS-232, TCP/IP, Web GUI and Controller Box
- Support POE function (802.3af Class 3, PD mode)
- Smart networking design for easy and flexible installation
