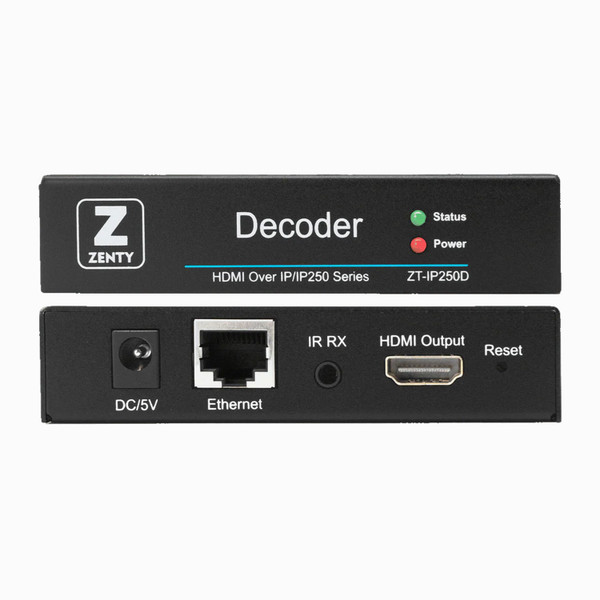

This Zenty ZT-101 IP250 AV Over IP System Decoder can extender an HDMI signal over a single ethernet cable up to 400ft. It is the most advanced TCP/IP HDMI extender matrix on the market. Use it within a point-point setup, or through a network switch for a one-many or many-many setup. Send an audio/video signal up to full HD 1080P at 60Hz to long distances without any hassle.
These units work best when used with the Zenty 24 port switch or Zenty 48 port switch. Take advantage of the Zenty control mobile app to control your input/output routing with ease.
Zenty ZT-101 IP250 AV Over IP System Decoder Features:
- Extend 1080P 60Hz signals up to 400ft. over a single UTP Cat5e/6 cable
- TCP/IP protocol allows usage with Zenty AV over IP switch in order to create an AV over IP Matrix system
- Broadcast architecture allows for adding more displays without adding LAN bandwidth
- Supports point – point, one – many, and many – many configurations
- Wideband IR (38-56kHz) to control the source
- Can be cascaded for many layers by adding Zenty ethernet switches
Why not buy this Zenty ZT-101 IP250 AV Over IP System Decoder from HDTV Supply today?
Zenty ZT-101 IP250 AV Over IP System Decoder Specification:
- Operating Temperature Range: -5°C ~ 35°C
- Operating Humidity Range: 5% – 90% RH (No Condensation)
- Input Video Signal: 0.5 – 1.0 Volts P-P
- Input DDC Signal: 5 Volts p-p (TTL)
- Video Resolutions: Up to 1080P @ 60Hz
- Video Output: HDMI
- Transmission Distance: 1080P 8-bit up to 400 ft over single Cat5e/6
- Power Consumption: Encoder: 3W, Decoder: 3W
- IR Frequency: 38 – 56 kHz
- Dimensions (L x W x H): 103.5mm x 93.5mm x 24.6mm (4.07” x 3.68” x 0.97”)
- Net Weight: Encoder / Decoder: 220g | 0.49 lbs
- Encoder Default IP Address: IP: 192.168.168.55, MAC: 00:0b:78:00:60:01
- Decoder Default IP Address: IP: 192.168.168.56, MAC: 00:0b:89:00:60:02
