Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0

Zenty

Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0
$560.00

25% Discount. Apply Code 25percentOff at Checkout!

Part Number:
ZT-339
Condition:
New
Availability:
In Stock
1:
Supports USB 3.2 Gen 1 Standard
2:
Provides 4 USB 3.2 & 3.0 Device Ports
3:
Built-in Two-Way PoH + Modules
4:
Industrial Camera Control
5:
Free USA Shipping
6:
International Shipping w/Wire Transfer
7:
Hassle-free Warranty
8:
5-Year Zenty Warranty
9:
Free Returns within 60 Days
10:
Lifetime Technical Support
11:
Save 5% with Wire Transfer or Check

This Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0 is a new generation of USB 3.2 and USB 3.0 extender. It supports USB 3.2 Gen 1 standard with up to 5Gbps USB data transmission rate, and is backwards compatible with USB 3.0, USB 2.0, and USB 1.1 specifications.

This USB extender can extend USB 3.2 and 3.0 data up to 100m / 328ft. via a single Cat 6a/7 F/FTP or U/FTP cable. It has a built in 4-port USB hub in the receiver which can be connected with multiple USB devices. It adopts advanced USB data transmission technology, and only occupies one USB tier. For multiple USB device scenarios, this extender can also be used with an external USB 3.2 and 3.0 hub. With two-way PoH + function, this extender only requires one power supply to be connected to the transmitter or receiver to power both units which is suitable for scenarios where the receiver can’t be connected to a power supply (such as outdoor monitoring scenario).

Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0 Features:

  • Supports USB 3.2 Gen 1 standard, and backward compatible with USB 3.0, USB 2.0, and USB 1.1 standards.
  • Supports up to 5Gbit/s data transmission rate.
  • Supports transmitting USB signal up to 100m/328ft. via a signal Cat 6a/7 F/FTP or U/FTP cable.
  • Pure hardware architecture is compatible with Control / Bulk / Interrupt / Isochronous transmission protocols.
  • Provides four USB 3.2 & 3.0 device ports on the receiver, includes one 1.5A port for connecting high-power USB devices.
  • Occupies one USB hub tier and supports connecting additional USB hub devices.
  • Supports RS232 and FSYNC GPIO pass-through for industrial camera control.
  • Plug and play, no driver is required, and compatible with multiple operating systems.
  • Support firmware upgrading via micro-USB port.
  • Built-in two-way PoH + modules, only needs to be connected to one power adapter to the transmitter or receiver to power both units.

Why not buy this Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0 from HDTV Supply today?

Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0 Specification:

  • Technical:

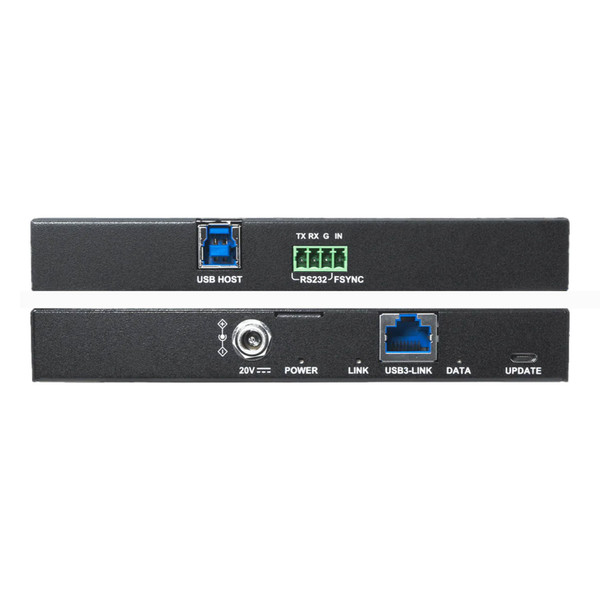

    • Transmitter: 1 x USB HOST (USB Type-B); 1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector); 1 X USB3-LINK (RJ45); 1 x POWER; 1 x FW (Micro-USB)
    • Input/Output Port:
    • Receiver: 4 x USB DEVICE (USB Type-A); 1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector); 1 X USB3-LINK (RJ45); 1 x POWER; 1 x FW (Micro-USB)
    • USB Standard: USB 3.2 Gen1, backward compatible with USB 3.0, USB 2.0, USB 1.1
    • Data Rate: Up to 5Gbit/s
  • General:
    • Operating Temperature: 0°C to 45°C (32°F to 113°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Humidity: 10% to 90%, non-condensing
    • ESD Protection: Human-body Model: ±8kV (Air-gap discharge)/+4kV (Contact discharge)
    • Power Supply: 20V 3A
    • Power Consumption (Max): 31.28W (Pair, USB fully loaded)
    • Device Dimension: Transmitter/Receiver: 150mm x 20.5mm x 100mm / 5.9" x 0.81" x 3.94"
    • Product Weight: Transmitter: 0.35kg/0.77lb; Receiver: 0.34kg/0.75lb

Why not buy this Zenty ZT-339 USB 3.2 / 3.0 Extender over HDBaseT 3.0 from HDTV Supply today?
