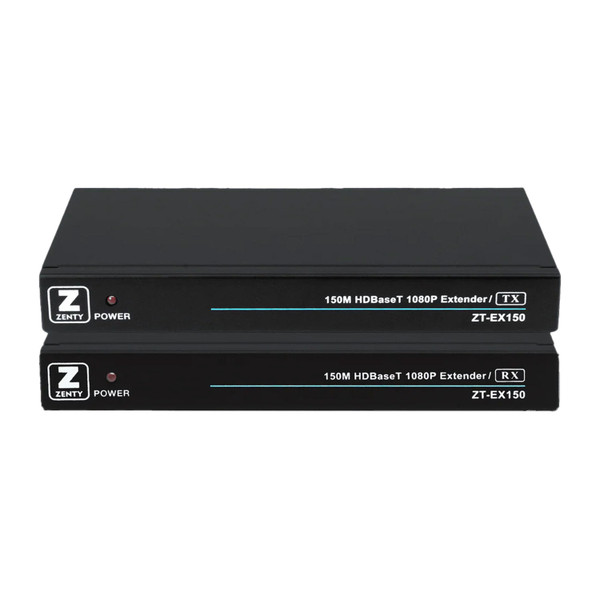

This Zenty ZT-107 1080P 60Hz HDBaseT HDMI Extender over Cat5e/6 (492ft) can transmit a full HD 1080P audio/video signal up to 492Ft. (150m). This extender is powered by bi-directional PoC, and only requires power to be connected to either the receiver or the transmitter, allowing for discreet installation. The ZT-EX150 uses an EDID pass-through that will automatically detect which resolutions and audio format are compatible with your display, set them to the highest options available. The extender passes CEC commands, allowing source devices and displays that support CEC to also be turned on or off through the extender. RS-232 commands are supported for serial communication transmission of data.
Zenty ZT-107 1080P 60Hz HDBaseT HDMI Extender over Cat5e/6 (492ft)132ft Features:
- 492ft. transmission distance over single CAT6 cable
- HDMI 1.4 | HDCP 1.4 compliant
- Video resolution up to 1080P 60Hz (YUV 4:4:4)
- HDMI High bit-rate (HBR) audio pass-through
- Power over cable (PoC) function; either the transmitter OR the receiver can be powered via one 24V 1A included power supply
- Bi-directional IR, bi-directional RS232, CEC
Why not buy this Zenty ZT-107 1080P 60Hz HDBaseT HDMI Extender over Cat5e/6 (492ft) from HDTV Supply today?
Zenty ZT-107 1080P 60Hz HDBaseT HDMI Extender over Cat5e/6 (492ft) Specification:
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 225 MHz
- Video Resolution: Up to 1080P @ 60Hz (YUV 4:4:4, RGB 4:4:4)
- Color Space: RGB, YUV 4:4:4, YUV 4:2:2
- Color Depth: 8-bit
- HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- ESD Protection: Human body model ±8kV (air-gap discharge), ±4kV (contact discharge)
- Inputs:
Transmitter: 1 x HDMI Type-A (19-pin female), 1 x IR Input (3.5mm stereo mini-jack), 1 x RS232 (Phoenix jack)
Receiver: 1 x HDBaseT In (RJ45), 1 x IR Input (3.5mm stereo mini-jack), 1 x RS232 (Phoenix jack) - Outputs:
Transmitter: 1 x HDBaseT Out (RJ45), 1 x IR Output (3.5mm stereo mini-jack)
Receiver: 1 x HDMI Type-A (19-pin female), 1 x IR Output (3.5mm stereo mini-jack) - Housing: Metal enclosure
- Color: Black
- Dimensions: 115mm (W) x 64.7mm (D) x 17mm (H)
- Weight: 406g
- Power Supply: Input AC 100–240V 50/60Hz, Output DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 5.76W (Max)
- Operating Temperature: 32°F – 104°F (0°C – 40°C)
- Storage Temperature: -4°F – 140°F (-20°C – 60°C)
- Relative Humidity: 20% – 90% RH (No Condensation)
