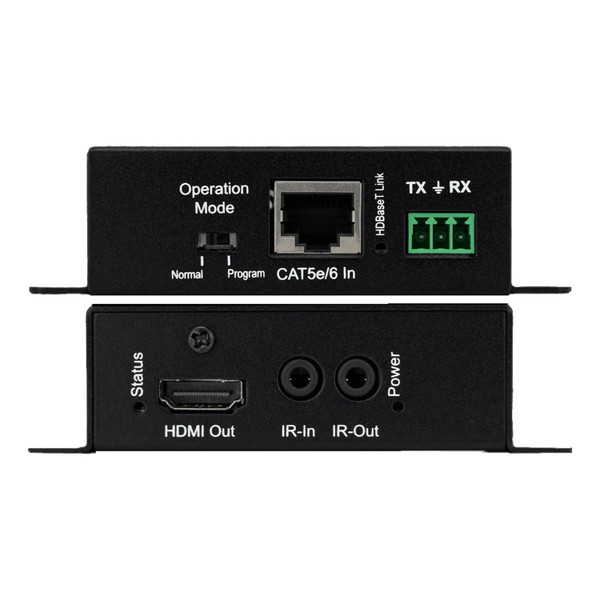

This Zenty ZT-132 4K 60Hz 4:2:0 HDBaseT HDMI Extender over Cat5e/6A 130ft | 230ft is a 4K HDBaseT extender, extends Ultra HD source over single Cable CAT5e/6A up to 230ft (1080P) and 130ft(4K) to the destination with Latest content protection version of HDCP 2.2. The 4K 60HZ HDMI 1.4 Extender provides popular functions, such as PoC (receiver powered by transmitter), Bi-Directional IR control together with HDMI signal, RS-232 for firmware update. The ZT-EXB130 is built on State-of-the-art embedded chipset with ESD protection inside and has been passed more than 1000 hours of tests under sophisticated applications, includes security systems, outdoor advertising screens, broadcasting stations, and public theaters etc.
Zenty ZT-132 4K 60Hz 4:2:0 HDBaseT HDMI Extender over Cat5e/6A 130ft | 230ft Features:
- Use single UTP/STP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission
- UTP/STP cable termination follows the standard of IEEE-568B
- Transmission distance reaches up to 230ft. under the video format of 1080P and 4K up to 130ft meters
- POC (power over cable function where the RX is powered by TX
- HDCP2.2/1.4 compliant
- Full HD support: 1080p@60Hz@48b/pixels, 3D and 4Kx2K
- With LED indicators to show the power status
- ESD protection inside.
- Transfer Bidirectional Infrared control signal together with the HDMI signal
- Phoenix RS232 Port for firmware update or RS232 control signal transmission
Why not buy this Zenty ZT-132 4K 60Hz 4:2:0 HDBaseT HDMI Extender over Cat5e/6A 130ft | 230ft from HDTV Supply today?
Zenty ZT-132 4K 60Hz 4:2:0 HDBaseT HDMI Extender over Cat5e/6A 130ft | 230ft Specification:
- Operating Temperature: -5°C ~ 35°C (-41°F ~ 95°F)
- Operating Humidity Range: 5% – 90% RH (no condensation)
- Input Video Signal: 0.5 – 1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Video Format Support: 4K, 1080P, 1080i, 720P, 576P, 480P, 576i, 480i
- Video Output: HDMI 2.0 + HDCP 1.4 / 2.2
- Audio Output: Supports DTS-HD, Dolby-HD
- Maximum Transmission Distance: 230 ft (1080P), 130 ft (4K)
- Power Supply: 12V / 2A
- PoC (Power over Cable): Power from Transmitter to Receiver over single Cat5e/6 cable
- Power Consumption: Transmitter: 2.5W, Receiver: 5W
- Dimensions (H x W x D): 105mm x 71mm x 25mm (4.13” x 2.80” x 0.98”)
- Weight: 0.7 kg / 1.54 lbs (Pair)
