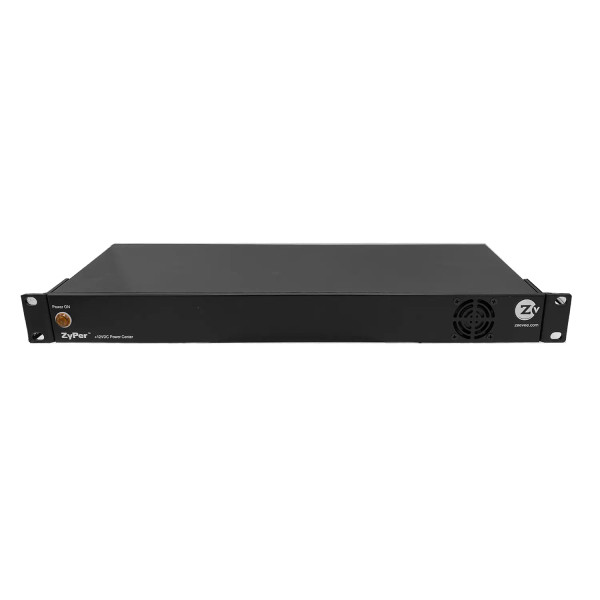

This ZeeVee Z4KPWRCTR12 ZyPer Power Center for use with up to 8 AVoIP ZyPer Encoder/Decoders (all models). 1 RU. Includes rack ears, eight 3−foot locking 12V DC power cables, AC power cord.
ZeeVee Z4KPWRCTR12 ZyPer Power Center Features:
- Centralizes power distribution for up to eight 12 V DC devices, eliminating the need for multiple power supplies
- Locking 12 V DC power connectors prevent devices from being accidentally unplugged due to cable stress
- Front–panel LED power indicator provides visual confirmation of power–on or power–off state
- Two internal fans maintain low enclosure temperatures
- Built–in circuit breaker
- Compact 1U form factor
- RoHS–compliant; built using environmentally–safe materials and construction
Why not buy this ZeeVee Z4KPWRCTR12 ZyPer Power Center from HDTV Supply today?
ZeeVee Z4KPWRCTR12 ZyPer Power Center Specifications:
- Output Cables:
- 8 x 3 ft (91.4 cm), locking connectors
- Cord Plug: 2.1mm I.D. x 5.5mm O.D., Female
- Input Voltage / Frequency: 110 ~ 240 V AC / 50 ~ 60 Hz
- Power Output Ports: 8 x 2.0 mm, 12 V DC
- Output Voltage: 12 V DC ± 5 %
- Output Current: 2.0 A (per port)
- Output Current / Power: 16 A / 192 W (max.)
- Fan:
- 2 x internal, 5200 rpm
- Current: 0.03 A (ea.)
- Power: 0.4 W (ea.)
- Operating Temperature: 32 ~ +113 ºF (0 ~ +45 ºC)
- Storage Temperature: –40 ~ +185 ºF (–40 ~ +85 ºC)
- Operating Humidity: 20 ~ 90% RH, non–condensing
- Storage Humidity: 10 ~ 95% RH, non–condensing
- Ambient Noise: 43.1 dB(A) continuous (Measured 1M distant, straight in front of unit, 10 degrees offset above horizontal)
- Product Weight: 2.4kg (5.3lbs) approx.
- Shipping Dimensions: 58.20cm x 25.40cm x 8.90cm (22.91" x 10.00" x 3.50") W, D, H
- Shipping Weight: 2.7kg (6.0lbs) approx.
