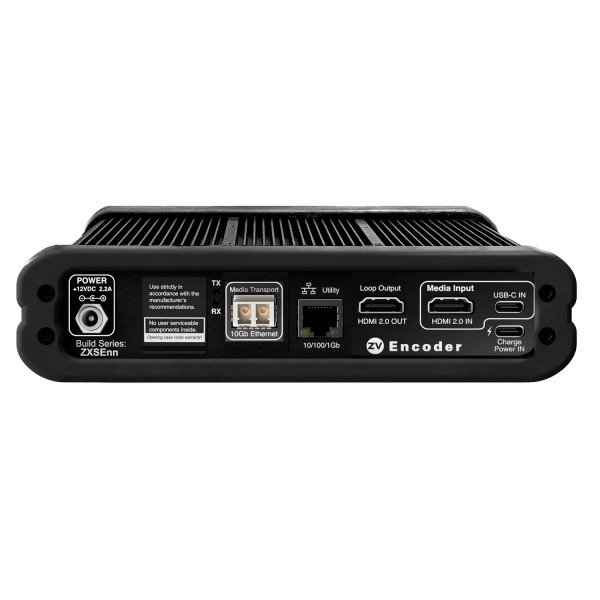

This ZeeVee Z4KF2XS-E/Z4KF2XS-E ZyPer4K-XSE Fiber Encoder is an HDMI 2.0 Encoder that is part of the ZyPer4K product line.
It supports IP streaming over 10Gbit/fiber up to 4KP60 4:4:4 resolution with embedded audio and HDCP 2.3 encryption at zero−frame latency.
USB supported between ZyPer4K−XS/XR devices. Video compatible with any ZyPer4K Decoder.
AC power supply is included but other cables are not.
ZeeVee Z4KF2XS-E/Z4KF2XS-E ZyPer4K-XSE Fiber Encoder Features:
- Uncompressed 4K
- Multiview
- Video Wall
- HDMI 2.0
- HDCP 2.3
- AES Encryption
- TAA Compliant
Why not buy this ZeeVee Z4KF2XS-E/Z4KF2XS-E ZyPer4K-XSE Fiber Encoder from HDTV Supply today?
ZeeVee Z4KF2XS-E/Z4KF2XS-E ZyPer4K-XSE Fiber Encoder Specifications:
- Video Input:
- HDMI 2.0 with HDCP pass–through and USB–C with DP Alt Mode 1.3 Support
- Video Output:
- HDMI 2.0 (loop–out of active video input)
- USB-C Charging Input:
- Input USB–C power to support charging on USB–C Input port to 60W
- Audio (Digital):
- Encoded audio formats and linear PCM up to 8 channels
- Audio (Analog):
- Balanced Stereo (Input/Output)
- USB:
- USB 2.0 (USB — C connector)
- Note: HID Support Only
- Ethernet:
- 10 Gb for Video/Audio/Control with 1 Gb Utility
- Formats:
- Supports all major VESA resolutions and variations including full HDMI 2.0 Support
- VGA: 640x480 (4:3)
- SXGA: 1280x1024 (5:4)
- 1080p/i: 1920x1080 (16:9)
- SVGA: 800x600 (4:3)
- WXGA: 1366x768 (16:9)
- QXGA: 2048x1536 (4:3)
- XGA: 1024x768 (4:3)
- SXGA+: 1440x1080 (4:3)
- Ultra HD: 3840x2160 (16:9)
- HDTV: 1280x720 (16:9)
- UXGA: 1600x1200 (4:3)
- 4K: 4096x2160 (17:9)
- Custom resolutions are supported at pixel clock rates up to 600 MHz
- Video Other:
- Color depth: 24 bit, 30 bit, 36 bit, 48 bit
- Video Wall and Multiview:
- Video Wall up to 15x15
- Multiview with up to 19 sources
- Signal Transmission Distance:
- Multimode Fiber: 300m
- Single Mode Fiber: 10km
- Copy Protection/Security:
- HDCP 2.3
- AES–128 Encryption
- 802.1X compatible
- Power Input (locking connector):
- 12V DC
- Power:
- Approximately 13 watts
- Temperature:
- Operating temperature: 32°F to 104°F (0°C to +40°C)
- Storage temperature: –4°F to +176°F (–20°C to +80°C)
- Humidity:
- Operating/Storage: 20% to 90% (Non–Condensing)
- Accessories:
- Z4KPWRCTR12: ZyPer 12V Power Center for use with up to 8 ZyPer Encoder/Decoders (all models). 1 RU. Includes rack ears, 8 3–foot locking 12V DC power cables, AC power cord
- Z4KRACKXSE: ZyPer4K–XSE Rack Mount Kit. Holds up to 8 ZyPer4K–XSE Encoders/Decoders in standard 6RU space. Includes rack assembly and 8 carrier units
- Z4KVESABRK: ZyPer4K VESA Bracket is a custom wall/desk/display mount bracket for ZyPer4K. Supports standard VESA parameters for mounting directly to rear of a display. 100x100, 100x200 and 200x200 VESA hole mounts are supported
- Product Dimensions:
- 19.50cm x 13.70cm x 4.82cm (7.68" x 5.39" x 1.90") W, D, H
- Product Weight:
- 1.0kg (2.2lbs) approx.
- Shipping Dimensions:
- 36.60cm x 174.00cm x 8.70cm (14.41" x 68.50" x 3.43") W, D, H
- Shipping Weight:
- 1.8kg (3.9lbs) approx.
