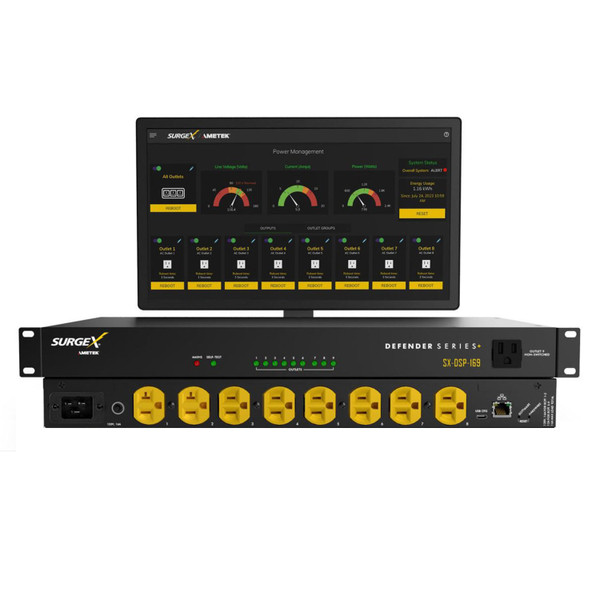

This Surgex SX-DSP-169 Defender Series IP Connected Multi-Stage Surge Suppressor with Detachable Power Cord - 120V/20A designed to exceed your expectations and redefine what's possible in control, protection, and automation. Advanced power filtration technology delivers pristine power to equipment and maintains peak performance for every project.
The SX-DSP-169 is a universally mountable unit enclosed in magnetic shielding steel. It operates at 120 volts AC and features a detachable line cord. The output consists of 9 AC receptacles with 8 individual switchable outlets. Additionally, a USB port is included for out-of-band control and configuration.
The Defender Series+ supports remote turn-on capabilities via wired Ethernet, with software activation for remote-on, turn-off, and reboot functions. A wide range of remote control features, including sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions. The supported protocols are wired Ethernet HTTP, HTTPS, SNMPv1, SNMPv3, NTP, mDNS, 802.1x, and LDAP. Measurement capabilities encompass voltage, current, power, frequency, energy, and temperature.
Events and measurements are recorded in the internal memory. The SX-DSP-169 has a load rating on 16 amps at 120 volts. EMI/RFI filtering and catastrophic over/under-voltage shutdown are available and will be able to withstand surge pulse voltages up to 6000 volts.
Surgex SX-DSP-169 Defender Series IP Connected Multi-Stage Surge Suppressor with Detachable Power Cord - 120V/20A Features:
- IP-controlled
- Multi-Stage Surge Protection
- Swappable power cord with lock
- 8 individually switchable outlets and 1 always ON outlet
- Remote turn on/off, power cycling, and power sequencing
- Advanced scheduling, AutoPing, and threshold triggered events
- Remote power management and analytics
- Seamless integration with third-party control systems using SurgeX's cloud-based platform, SurgeX CONNECT
- NEMA: 9 outlets, 8 Switchable (1 service outlet)
Why not buy this Surgex SX-DSP-169 Defender Series IP Connected Multi-Stage Surge Suppressor with Detachable Power Cord - 120V/20A from HDTV Supply today?
Surgex SX-DSP-169 Defender Series IP Connected Multi-Stage Surge Suppressor with Detachable Power Cord - 120V/20A Specifications:
- AC Load Rating: 16A @ 120V
- Number of Outlets Back: 8
- Number of Outlets Front: 1
- Measurement Accuracy:
- Voltage: ± 2%
- Current: ± 5%
- Power: ± 5%
- Energy: ± 5%
- Timestamp Accuracy: ± 1%
- Network Port:
- 10/100 Ethernet connection on Female RJ-45, Auto Negotiating with 10/100 network connections with Link and Activity LEDs
- USB RNDIS Device on micro-AB
- Weight: 7.5lbs (3.4kg)
- Dimensions:
- Height: 1.73" (44mm)
- Width: 17.4" (442mm)
- Depth: 9.85" (250mm)
- Temperature Range (100% Load): 32°F 113°F (0°C 45°C)
- Humidity Range: 5% 95% R.H. Non-condensing
- Altitude: 0ft 10000ft (0m 3048m)
- Agency Listings:
- Certified to UL 62368-1
- Certified to CAN/CSA C22.2 No
- RoHS: Compliant
- Prop 65
- FCC 47 CFR PART 15 SUBPART B (Using ANSI C63.4-2014)
- ICES-003 ISSUE 7
- Surge Protection: Multi Stage Surge Protection
- IP Protection Class: IPX0
- AC Power System Type: TN
- Pollution Rating: Pollution degree (PD) PD 2
