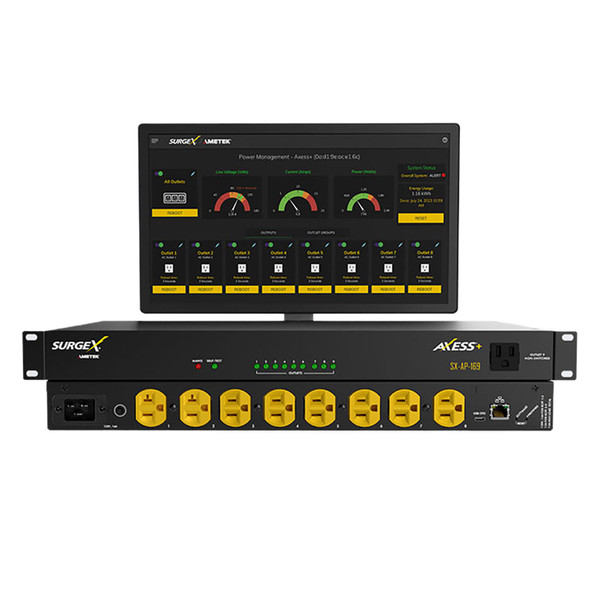

This SurgeX SX-AP-169 Axess Plus 9 Outlet Rackmount 16A Surge Eliminator/Power Conditioner - IP Connected advanced 1U rack solution caters to AV and IT professionals' needs. It features non-sacrificial surge protection with Advanced Series Mode, safeguarding your equipment without compromising performance. Integrated power filtration ensures clean, reliable power, enhancing device longevity and efficiency.
In addition to superior protection, the SX-AP-169 1U rack solution provides comprehensive IP controllability, inlet current monitoring, and advanced analytics. These features enable integrators to monitor and manage their equipment remotely, diagnose issues proactively, and automate control triggers for seamless operation.
SurgeX SX-AP-169 Axess Plus 9 Outlet Rackmount 16A Surge Eliminator/Power Conditioner - IP Connected Features:
- IP-controlled PDU
- Advanced Series Mode
- Individually switchable receptacles
- Swappable power cord with lock
- Remote turn on/off, power cycling, and power sequencing
- Advanced scheduling, AutoPing, and threshold triggered events
- Remote power management and analytics
- Seamless integration with third-party control systems using SurgeX's cloud-based platform, SurgeX CONNECT
- NEMA: 9 outlets, 8 Switchable (1 service outlet)
- Plug Config: 16A/5-20P
- Outlet Config: 7 Outlets/5-15R, 2 Outlets/5-20R
Why not buy this SurgeX SX-AP-169 Axess Plus 9 Outlet Rackmount 16A Surge Eliminator/Power Conditioner - IP Connected from HDTV Supply today?
SurgeX SX-AP-169 Axess Plus 9 Outlet Rackmount 16A Surge Eliminator/Power Conditioner - IP Connected Specifications:
- AC Load Rating: 16A @ 120V
- No of Outlets Back: 8
- No of Outlets Front: 1
- Measurement Accuracy:
- Voltage ± 2%
- Current ± 5%
- Power ± 5%
- Energy ± 5%
- Timestamp Accuracy: ± 1%
- Network Port:
- 10/100 Ethernet connection on Female RJ45, Auto Negotiating with 10/100 network connections with Link and Activity LEDs
- USB RNDIS Device on microAB
- Weight: 10.2lbs (4.6kg)
- Dimensions (HxWxD)(Enclosure): 1.73" x 17.4" x 9.85" (44mm x 442mm x 250mm)
- Temperature Range (100% Load): 32°F 113°F (0°C 45°C)
- Humidity Range: 5% 95% R.H. Noncondensing
- Altitude: 0ft 10,000ft (0m 3048m)
- Safety:
- Certified to UL 623681
- CAN/CSA C22.2 No
- RoHS: Compliant
- Prop 65
- EMC:
- FCC 47 CFR PART 15, SUBPART B (Using ANSI C63.42014)
- ICES003 ISSUE 7
- Surge Protection: Advanced Series Mode
- Surge Tested For: UL 1449 & UL1283
- IP Protection Class: IPX0
- AC Power System Type: TN
- Pollution Rating: Pollution degree (PD) PD 2
