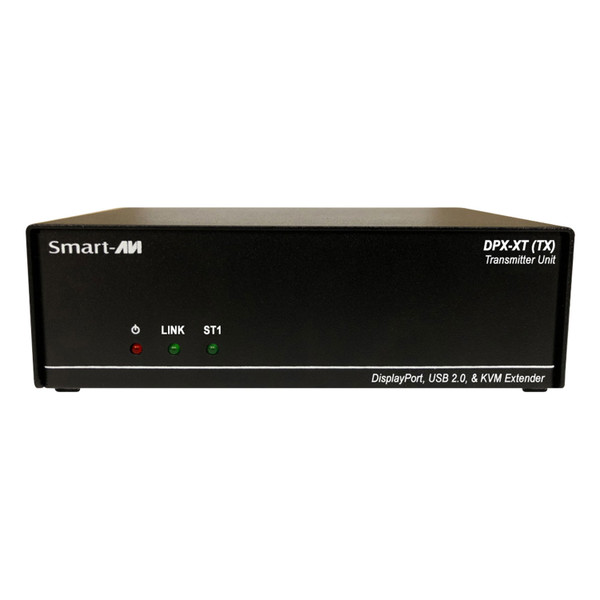

This Smart-AVI DPX-XT-TX-S Single-Head DisplayPort KVM Transmitter with Audio & USB 2.0 is a DisplayPort extender supporting 4K (3840×2160 @ 30 Hz) video, bi-directional audio, and USB 2.0 up to 330 ft.
It provides full KVM functionality for reliable, high-resolution DisplayPort signal extension.
Smart-AVI DPX-XT-TX-S Single-Head DisplayPort KVM Transmitter with Audio & USB 2.0 Feature:
- Extends DisplayPort 1.1 and 1.2, USB 2.0 and audio up to 330 ft (100 m) from the source
- Supports up to 3840×2160 digital video resolution @ 30Hz
- Uncrompressed Video
- Supports keyboard and mouse USB 1.1
- USB 2.0 Transparent
- Carries DP, USB 2.0 and Audio Over a Single CAT 5e/6/6a
- DisplayPort Auxiliary Bypass
- Plug-and-Play Ready
Why not buy this Smart-AVI DPX-XT-TX-S Single-Head DisplayPort KVM Transmitter with Audio & USB 2.0 from HDTV Supply today?
Smart-AVI DPX-XT-TX-S Single-Head DisplayPort KVM Transmitter with Audio & USB 2.0 Specifications:
| VIDEO | |
|---|---|
| Format | DisplayPort 1.1 and 1.2 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface (TX) | (1) DP female |
| Output Interface (RX) | (1) DP female |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| USB | |
| Signal Type | USB 1.1 and USB 2.0 |
| Input Interface (TX) | (1) USB Type B (Female) |
| Output Interface (RX) | (4) USB Type A (Female) |
| AUDIO | |
| Frequency | 30KHz to 80KHz |
| Input Interface (TX) | (1) 3.5mm (Female) |
| Output Interface (RX) | (1) 3.5mm (Female) |
| OTHER | |
| Power | External 100-240 VAC/5VDC3A @ 20 W |
| Dimensions | 5.5” W x 1 7/8” H x 3 1/4” D |
| Weight | 1.0lb per TX/RX unit |
| Operating Temperature | 0-55 °C (32-131°F) |
| Storage Temperature | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
Why not buy this Smart-AVI DPX-XT-TX-S Single-Head DisplayPort KVM Transmitter with Audio & USB 2.0 from HDTV Supply today?
Smart-AVI DPX-XT-TX-S Brochure
Smart-AVI DPX-XT-TX-S User Manual
