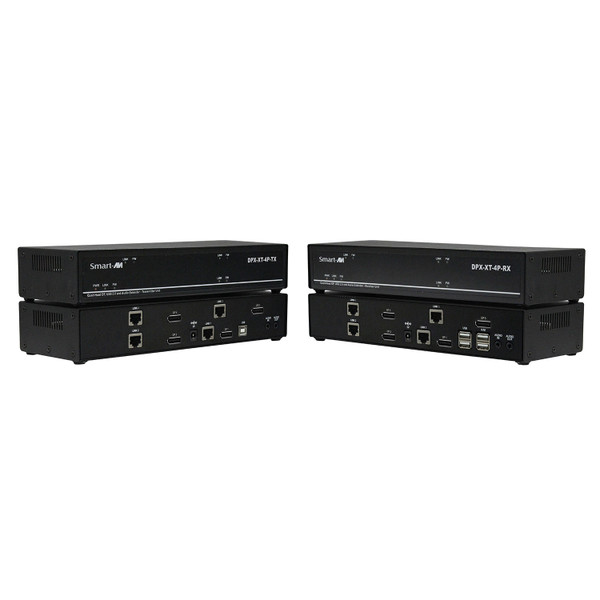

This Smart-AVI DPX-XT-4P-S Quad-Head 4K Displayport with USB 2.0 KVM Extender is an extender supporting Quad Head DisplayPort video signals at resolutions up to 4K/30Hz, with bi-directional audio and fully-transparent USB 2.0 up to 330 ft.
The first extender on the market to feature DP 4K/30Hz, USB 2.0, and full KVM extension on one cohesive system.
Its DisplayPort 4K (3840×2160 @ 30Hz) video output is optimized for HD monitors.
Smart-AVI DPX-XT-4P-S Quad-Head 4K Displayport with USB 2.0 KVM Extender Feature:
- Extends quad DisplayPort 1.1 and 1.2, USB 2.0 and audio up to 330 ft (100 m) from the source
- Supports up to 3840×2160 digital video resolution @ 30Hz
- Uncrompressed Video
- Supports keyboard and mouse USB 1.1
- USB 2.0 Transparent
- Carries DP, USB 2.0 and Audio Over Four CAT 5e/6/6a Cables
- DisplayPort Auxiliary Bypass
- Plug-and-Play Ready
Why not buy this Smart-AVI DPX-XT-4P-S Quad-Head 4K Displayport with USB 2.0 KVM Extender from HDTV Supply today?
Smart-AVI DPX-XT-4P-S Quad-Head 4K Displayport with USB 2.0 KVM Extender Specifications:
| VIDEO | |
|---|---|
| Format | DisplayPort 1.1 and 1.2 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface (TX) | (4) DP female |
| Output Interface (RX) | (4) DP female |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| AUDIO | |
| Format | Stereo |
| Input Interface | 3.5 mm Jack Socket (female) |
| Output Interface | 3.5 mm Jack Socket (female) |
| USB | |
| Input Interface (TX) | (1) USB Type B |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices; (2) USB 2.0 Type A Transparent |
| Keyboard and mouse | Keyboard and mouse emulation |
| SYSTEM | |
| Interface | RJ-45 |
| Cable Requirements | CAT5/5e/6 |
| Maximum Length | 330 ft (100 m) |
| OTHER | |
| Power | 100-240 VAC/ 5VDC @ 3A/15W |
| Dimensions | 11.9” W x 1.7” H x 2.9” D |
| Weight | 1.75 lb (per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Environmental Operating Temperature | +32 to +104°F (0 to +40°C) |
| Environmental Operating Humidity | 20% to 80% (non condensing) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
