HDTV Supply's WolfPack 1080p Seamless 8x16 HDMI Matrix Switcher delivers seamless 1080p HDMI distribution over CAT6 up to 220 feet with near-zero latency, featuring flexible routing and multiple control options for reliable AV management.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on each HDMI card allows manual up/down scaling and selection of multiple resolution settings to match both HDMI source and display devices.
Separate Embedded Audio In and De-embedded Audio Out: The matrix enables video display with independent audio by supporting audio embedding via a 3.5mm input on the input cards and de-embedding through a 3.5mm output on the output cards.
100ms Seamless HDMI Switching: The WolfPack Seamless 8x16 HDMI Matrix Switcher over CAT6 with 16 HDBaseT Receivers delivers seamless 100ms switching, 1080p video distribution, advanced EDID/HDCP management, integrated scaling, and flexible audio processing for reliable AV performance.
What sets our WolfPack Seamless 8x16 HDMI Matrix Switcher via CAT6 apart from others:
- Switches in only 100ms (0.1 second)
- Uses 1080p at 60 Hz 4:4:4 HDMI 1.4 cards for the best picture
- Uses the best seamless 1080p at 60 Hz HDBaseT HDMI to CATx cards and receivers with POC (Power Over Cable), not cheap H.264 with fuzzy compressed video
- 40 - Preset scenes that can be Saved and Recalled
- Closed Caption (CC) Pass-through
- Embedded audio inputs & De-embedded Audio Outputs
- Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
- No latency
- 2-Year WolfPackCare Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Optional low cost Video wall Processors

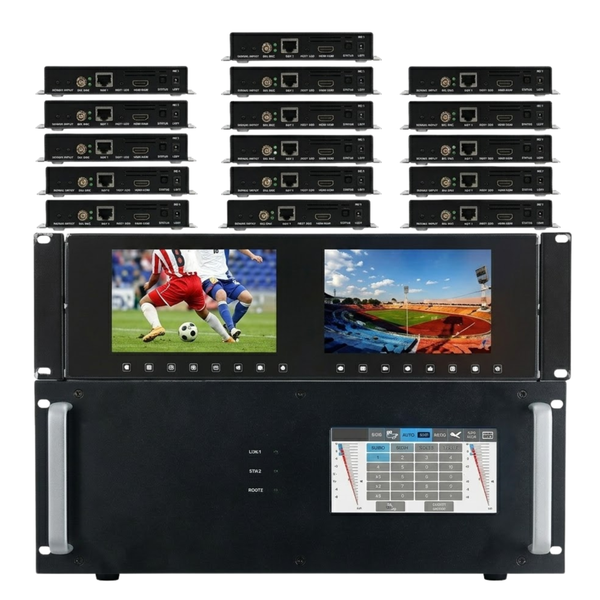

WolfPack 1080p Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers Configuration:
- 1 - 18-card in and 18 card out 1080p card cage
- 8 - 1-port HDMI input cards = 8-HDMI inputs
- 16 - 1-port HDBaseT output cards = 16-HDbaseT (RJ-45) outs
- 16 - HDBaseT Receivers with RJ-45 inputs & POE
- 10 - Input slots for future expansion to 18-total inputs
- 2 - Output slots for future expansion to 18-total outputs
1080p Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers Features:
- Chassis size: 18 input and 18 outputs cards
- Input Cards Supported:
- 8 - 1080p female HDMI single port cards = 8 - HDMI inputs
- Output Cards:
- 16 - 1-port 1080p HDBaseT output cards = 16-HDbaseT (RJ-45) outputs and 16 - 1080p HDBaseT Receivers with RJ-45 inputs and POE
- Backup Power Supply
- Optional 7" Color Touch Screen
- Optional Control4 & Elan Drivers
- Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 1.4 high speed cable
- Flexible card type design supporting 9 input cards and 9 output cards
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled (WEB GUI) via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports seamless switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- 2U Rack-mountable
- Manufactured to ISO 9001 standards
EDID Explained: The 1080p Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not buy this Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers today?
WolfPack 1080p Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers Specs:
- Modular Configuration: 18 inputs/18 outputs card cage
- Supported Input & Outputs Signals:
- HDMI and Display Port: up to 1080p at 60 Hz
- Power Supply: 100 to 240VAC, 50-60Hz
- Power Consumption: 50W to 70W
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -25℃ to 55℃
Why not buy this Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers today?
Reasons To Buy an HDTV Supply WolfPack Product
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional $100 7" Color Touch Screen on select models (Call)
- Dual RS232 ports are standard on select models
- Dual TCPIP ports are standard on select models
- DTVGame Sports Bar DirecTV Control System (Call)
- Allonis Sports Bar DirecTV Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $129 Crestron Drivers
- Optional $99 Elan Drivers
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes for select models (Call)
Control Drivers
- Control4 Drivers
- Elan Drivers
- RTI Drivers
- URC Drivers
- Crestron Modules
- We Need AMX Drivers
- We Need Extron Drivers
- We Need Savant Drivers
DirecTV Controller
Apps
This Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX
- Control4
- Creston
- RTI
- DTVGameControl
- Elan g!
- Media Switcher
- OnControls
- Savant
- SimpleControl
- SwitchItUp
- SAVI Control
- URC Control
...and we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows an "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV & HDMI Matrix Control Software for Bars & Restaurants
A: 40.
Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Mix-n-Match combinations:
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: What are the dimensions of the chassis?
A: 18x18: 4U - 482x390x178mm - 18.97x15.35x7.01 inches (L/W/H)
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
Why not design a 1080p Seamless 8x16 HDMI Matrix Switcher over CAT6 w/16-HDBaseT Receivers today?
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at customerservice@hdtvsupply.com
