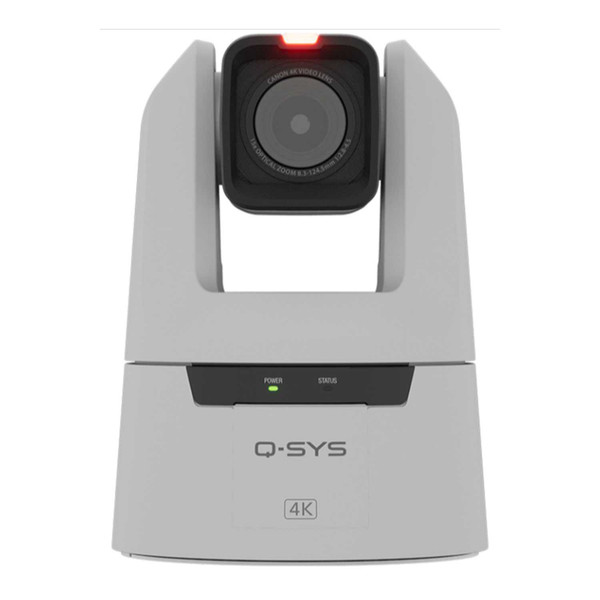

The QSC Q-SYS NC-PRO15X-WH Network PTZ Camera - White is a professional network PTZ camera designed for high-impact spaces requiring broadcast-quality video and production-grade performance. Built by Canon, it delivers smooth pan, tilt, and zoom operation for Q-SYS VisionSuite Presenter Spotlight applications.
The NC-Pro15x features a 1-inch 4K UHD CMOS image sensor, 15x optical zoom, and Canon image processing for detailed video and responsive autofocus.
Powered by the Q-SYS Full Stack AV Platform, NC Series cameras integrate into Q-SYS systems, allowing camera feeds to be routed across the network without complicated programming or dedicated video matrix hardware.
Camera feeds can be delivered to modern video conferencing applications through compatible Q-SYS AV bridging peripherals.
QSC Q-SYS NC-PRO15X-WH Network PTZ Camera - White Features
- Canon-built network PTZ camera for professional AV environments
- 15x optical zoom with a 73° horizontal field of view
- 1-inch 4K UHD CMOS image sensor with Dual Pixel Autofocus
- Canon image processing for high-quality video performance
- Built-in neutral density (ND) filter
- Integrated tally light for production workflows
- Optional HDMI, 3G-SDI, and NDI | HX output capabilities
- Simultaneous 3G-SDI, HDMI, and IP feed output, subject to configuration
- Power over Ethernet Plus (PoE+), Type 2
- Compatible with Canon PTZ camera controllers
QSC Certified Expertise with Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC Q-SYS NC-PRO15X-WH from HDTV Supply?
Choose HDTV Supply for professional AV products and knowledgeable support for your Q-SYS installation. Contact our team for product guidance and compatibility questions.
Ask a Question About the QSC Q-SYS NC-PRO15X-WH
Need help with compatibility, installation, or selecting the right camera for your AV system? Contact HDTV Supply.
Phone: 833-WOLFPACK (833-965-3722)
Website: HDTV Supply
QSC Q-SYS NC-PRO15X-WH Network PTZ Camera - White Specifications
| Image Sensor | 1.0-inch single-plate CMOS |
| Lens | 15x optical zoom; focal length 8.3–124.5 mm; F2.8–F4.5 |
| Sensor Scanning Mode | Progressive |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° to +90° |
| Ceiling Mounting | Supported with an available Canon accessory |
| Audio Inputs | XLR and 3.5 mm audio inputs listed as inactive |
| Minimum Illumination | 4K UHD: approximately 1.5 lux at 1/30 sec, 29.97 Hz, and 33 dB gain; 1080p: approximately 3 lux at 1/60 sec, 59.94 Hz, and 33 dB gain |
| Shutter Speed | 1/3 sec to 1/2000 sec |
| White Balance | Auto, Set A, Set B, daylight, tungsten lamp, manual, and specified color temperature |
| IP Preview Stream | H.264 at 360p |
| Supported Video Formats | |
| HDMI 2.0 Output | 3840 × 2160: 29.97p, 25p, 23.98p; 1920 × 1080: 59.94p/59.94i, 50p/50i, 25p, 29.97p, 23.98p; 1280 × 720: 59.94p, 50p |
| 3G-SDI Output | 1920 × 1080: 59.94p/59.94i, 50p/50i, 25p, 29.97p, 23.98p; 1280 × 720: 59.94p, 50p |
| NDI | HX with Q-SYS Bridging | 1080p at 29.97 and 25 fps |
| NDI | HX without Q-SYS Bridging | 4K at 29.97, 25, and 15 fps; 1080p, 720p, and 360p at 59.94, 50, 29.97, 25, and 15 fps. 4K output requires NDI Only mode. |
| Power | PoE+ (Type 2) |
| Dimensions (H × W × D) | 7.87 × 10.59 × 8.19 inches (200 × 269 × 208 mm), as supplied |
| Net Weight | 9.04 lb (4.1 kg) |
QSC Q-SYS NC-PRO15X-WH Manuals and Downloads
QSC Q-SYS NC-PRO15X-WH Frequently Asked Questions
Q1: What is the QSC NC-PRO15X-WH?
A: The QSC NC-PRO15X-WH is a white network PTZ camera designed for professional AV production and Q-SYS environments.
Q2: Who manufactures the NC-Pro15x camera?
A: The camera is built by Canon and is part of the Q-SYS NC Series camera portfolio.
Q3: What optical zoom does this camera provide?
A: It features 15x optical zoom, with a listed focal length range of 8.3–124.5 mm.
Q4: Does the NC-PRO15X-WH support 4K video?
A: Yes. The camera has a 1-inch 4K UHD CMOS image sensor. Available output formats depend on the selected interface and operating mode.
Q5: Does the camera support autofocus?
A: Yes. The camera features Canon Dual Pixel Autofocus technology.
Q6: Which video outputs are available?
A: The supplied specifications list HDMI 2.0, 3G-SDI, and IP streaming capabilities. Confirm optional output licensing or hardware requirements before purchase.
Q7: Does the NC-PRO15X-WH support NDI?
A: The supplied specifications list NDI | HX output. Supported resolutions vary depending on whether Q-SYS bridging is enabled and whether the camera is operating in NDI Only mode.
Q8: How is the camera powered?
A: The listed power method is Power over Ethernet Plus (PoE+), Type 2. Ensure the network switch or injector meets the camera's power requirements.
Q9: Can the camera be ceiling-mounted?
A: Yes. The supplied specifications indicate that a ceiling-mount accessory is available through Canon.
Q10: Where can I find the user manual?
A: Use the User Manual link in the Manuals tab above to access the available PDF document.
Q11: What are the key benefits of the QSC NC-PRO15X-WH?
A: Key benefits include 15x optical zoom, a 4K UHD sensor, Dual Pixel Autofocus, network video capabilities, and integration options for Q-SYS production and conferencing workflows.
Q12: Is this camera suitable for conference rooms?
A: It can be considered for professional conferencing and production spaces where PTZ control, high-quality imaging, and compatible Q-SYS AV bridging are required. Verify the complete system design for your application.
Q13: What is the difference between HDMI, SDI, and IP output?
A: HDMI and SDI provide physical video connections to compatible equipment, while IP output carries video over a network. The appropriate option depends on your production equipment, network design, and required resolution.
Q14: What should I check before installing the NC-PRO15X-WH?
A: Confirm mounting requirements, PoE+ power availability, network configuration, output format compatibility, and any optional output or mounting accessories required for your system.
Q15: How can I get help choosing this Q-SYS camera?
A: Contact HDTV Supply at 833-WOLFPACK (833-965-3722) for assistance with product selection and compatibility questions.
