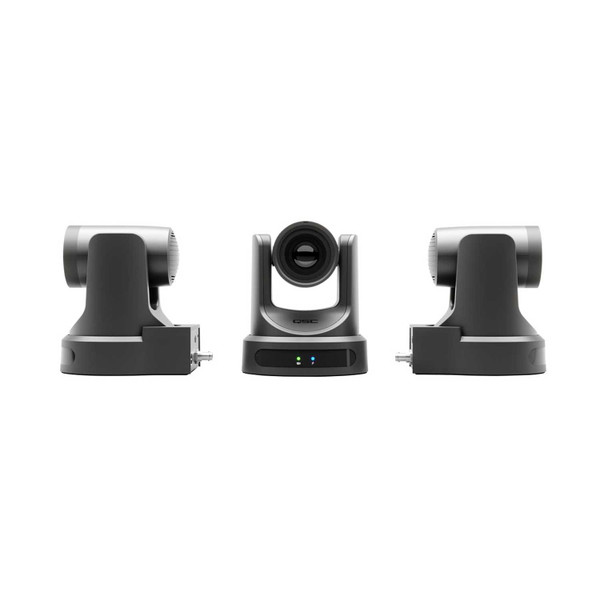

The QSC Q-SYS NC-20x60 20x Optical Zoom 60° Horizontal Field PTZ Network Camera delivers high-quality video feeds natively to the Q-SYS Platform.
The NC-20x60 offers motorized pan, tilt, and zoom (PTZ) functionality to support a broad range of room layouts, sizes, and purposes.
Alongside the NC-110 ePTZ model, the NC Series offers simple and scalable video solutions for meeting spaces of different sizes.
Driven by the Q-SYS OS, the NC Series integrates with Q-SYS systems, allowing camera feeds to be routed across the network without complicated programming or dedicated video matrix hardware.
Camera feeds can be delivered to modern video conferencing applications such as Microsoft Teams, Zoom, Google Meet, and Cisco Webex through a compatible Q-SYS AV bridging peripheral.
Updated Features: The NC Series PTZ conference cameras feature a discreet design and an imaging platform designed for professional conferencing environments. Motorized pan, tilt, and zoom functionality supports a broad range of room types.
The NC-20x60 features a 20x optical zoom lens, helping maintain image quality when zoomed in compared with digital zoom. Its 4K image sensor supports 1080p output for clear video conferencing. When Auto-Framing is enabled, the camera automatically adjusts the framed area to capture detected faces within its field of view.
Network Simplicity, USB Delivery: NC Series cameras use a single network cable to transport video, power, and control data into Q-SYS, then employ USB technology to deliver video to the intended PC or compute device.
This approach simplifies system deployment and reduces reliance on long USB cable runs. Multiple NC Series cameras can be integrated into compatible Q-SYS system designs to support network-based camera routing and switching.
Universal Compatibility: Camera feeds and Q-SYS room audio can be delivered to compatible conferencing applications through an appropriate Q-SYS AV bridging solution.
This functionality allows Q-SYS systems to support conferencing environments using Zoom, Microsoft Teams, Google Meet, Cisco Webex, and other compatible applications.
Designed for Q-SYS: NC Series collaboration cameras are designed for Q-SYS, a cloud-manageable audio, video, and control platform built to deliver scalable AV solutions.
The Q-SYS OS manages NC Series cameras alongside compatible Q-SYS products. The platform's IT architecture and development tools also support integration with approved third-party devices and the broader Q-SYS developer ecosystem.
QSC Q-SYS NC-20x60 20x Optical Zoom 60° Horizontal Field PTZ Network Camera Features
- 20x optical zoom with a 60° horizontal field of view
- Distributes video over the Q-LAN network
- Power over Ethernet (PoE)
- Camera imaging controls, including white balance, focus, and exposure
- User-configurable IP stream resolution and quality, up to 1080p
- Image rotation for inverted mounting; optional PTZ-CMB1 ceiling mount accessory
- 12 V DC power connection; power supply not included
- PTZ-WMB1 wall mount bracket included, according to the supplied product information
- Management through Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
- Auto-Framing to frame detected faces when enabled
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC NC-20x60 from HDTV Supply?
Shop HDTV Supply for your QSC conferencing and AV system needs. Contact our team for assistance selecting compatible products for your installation.
Ask a Question
Have a question about the QSC NC-20x60 PTZ Network Camera, its features, or compatibility with your Q-SYS system? Contact our team for assistance.
Email our customer service team for product information and compatibility guidance.
QSC Q-SYS NC-20x60 PTZ Network Camera Specifications
| Specifications | NC-20x60 |
| Description | Network camera with motorized PTZ, 20x optical zoom, and 60° horizontal field of view |
| Image Sensor | 1/1.8-inch low-noise CMOS |
| Lens Characteristics (Wide to Tele) | 20x optical zoom, f = 6.25 mm to 125 mm, F1.58 to F3.95 |
| Sensor Scanning Mode | Progressive |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° to +90° |
| Pan Speed Range | 1.7° to 100°/s |
| Tilt Speed Range | 1.7° to 69.9°/s |
| Ceiling Mounting | Image rotation for ceiling mounting; PTZ-CMB1 ceiling mount bracket sold separately |
| Minimum Illumination | 0.5 lux at F1.8, AGC on |
| Shutter | 1/30 s to 1/1000 s |
| White Balance | Auto, indoor, outdoor, one-push, manual, and specified color temperature |
| IP Stream Resolutions (Preview Window) | H.264 at 360p, 270p, or 180p |
| Supported Video Formats HDMI 2.0 Output SDI-3G Output |
HDMI 2.0: • 4K at 25, 29.97, and 30 fps • 1080p at 25, 29.97, 30, 50, 59.94, and 60 fps • 1080i at 50, 59.94, and 60 fps • 720p at 30, 50, 59.94, and 60 fps SDI-3G: • 1080p at 25, 29.97, 30, 50, 59.94, and 60 fps • 1080i at 50, 59.94, and 60 fps • 720p at 50, 59.94, and 60 fps |
| DC Power Input | 12 V (±20%), 12 W, JEITA connector |
| Power over Ethernet (PoE) | PoE Class 3 (Type 1) |
| Power Consumption | 12.95 W maximum |
| Dimensions | 6.7 x 7.95 x 5.6 inches (170 x 201 x 142 mm) |
| Net Weight | 3.5 lb (1.6 kg) |
QSC Q-SYS NC-20x60 Manuals and Downloads
Frequently Asked Questions About the QSC NC-20x60
Q1: What is the QSC NC-20x60?
A: The QSC NC-20x60 is a PTZ network camera designed to deliver video to a Q-SYS system. It features motorized pan, tilt, and zoom, with 20x optical zoom and a 60° horizontal field of view.
Q2: What does PTZ mean?
A: PTZ stands for pan, tilt, and zoom. These functions allow the camera to move horizontally and vertically and optically zoom in on subjects.
Q3: How much optical zoom does the NC-20x60 provide?
A: The NC-20x60 provides 20x optical zoom, allowing it to capture subjects at a distance while retaining image detail.
Q4: What is the horizontal field of view?
A: The NC-20x60 has a 60° horizontal field of view.
Q5: Can the NC-20x60 be used for video conferencing?
A: Yes. Its video feed can be incorporated into compatible conferencing workflows, including Microsoft Teams, Zoom, Google Meet, and Cisco Webex, through an appropriate Q-SYS AV bridging solution.
Q6: Does the NC-20x60 support Power over Ethernet?
A: Yes. The supplied specifications list PoE Class 3 (Type 1). Confirm that your network equipment provides compatible PoE power before installation.
Q7: Can the camera use a 12 V DC power supply?
A: The specifications list a 12 V DC power input. The supplied product information notes that the power supply is not included.
Q8: Can the NC-20x60 be ceiling-mounted?
A: The camera supports image rotation for inverted mounting. The PTZ-CMB1 ceiling mount bracket is listed as an optional accessory.
Q9: Is a wall mount bracket included?
A: The supplied product information lists the PTZ-WMB1 wall mount bracket as included. Confirm the package contents when ordering.
Q10: What software manages the NC-20x60?
A: The camera is managed through Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager, according to the supplied product information.
Q11: How does the QSC NC-20x60 integrate with Q-SYS?
A: The NC-20x60 is designed to deliver camera video into the Q-SYS platform over the network, enabling integration with compatible Q-SYS audio, video, and control workflows.
Q12: What video formats does the NC-20x60 support?
A: The supplied specifications list HDMI 2.0 output formats up to 4K at 30 fps, along with several 1080p, 1080i, and 720p formats. SDI-3G output supports the listed 1080p, 1080i, and 720p formats. Refer to the manual for exact format and frame-rate compatibility.
Q13: What does Auto-Framing do?
A: When enabled, Auto-Framing adjusts the framed area to capture detected faces within the camera's field of view.
Q14: Can multiple NC Series cameras be used in one Q-SYS system?
A: Multiple NC Series cameras can be integrated into compatible Q-SYS system designs. Available routing and switching functions depend on the system configuration and selected components.
Q15: What should I check before purchasing the NC-20x60?
A: Check Q-SYS compatibility, network and PoE requirements, mounting options, video output needs, and conferencing bridge compatibility. Contact HDTV Supply for assistance selecting products for your system.
QSC Q-SYS NC-20x60 Warranty
For warranty coverage and service terms applicable to the QSC Q-SYS NC-20x60 Network Camera, refer to the manufacturer's current warranty documentation or contact HDTV Supply for assistance.
