We are sorry, but the QSC CORE 510i KIT Q-SYS Integrated Core Processor has been discontinued by the manufacturer and is no longer available. This page is retained for reference only.
Please call us at 833-965-3722 for assistance finding a replacement product.

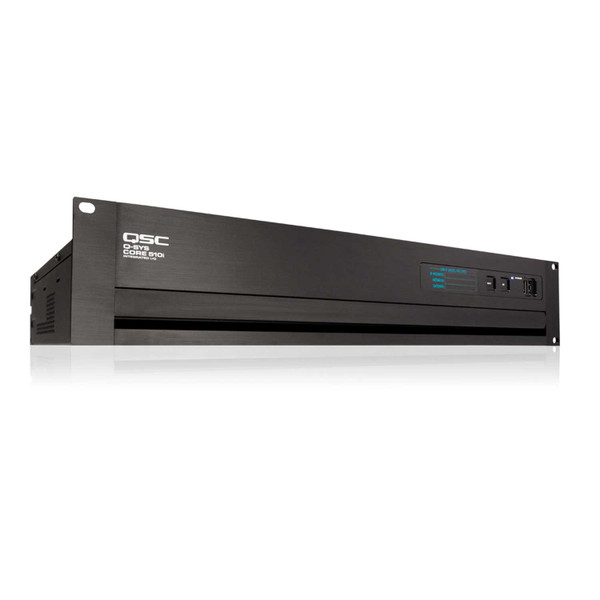

The QSC CORE 510i KIT Q-SYS Integrated Core Processor is an audio, video, and control processing system designed for professional AV installations. It uses Intel-based hardware and the Q-SYS real-time operating system to deliver integrated processing and control for systems ranging from individual rooms to complex installations.
The Core 510i offers flexible audio connectivity through eight onboard I/O card slots, supporting combinations of compatible Q-SYS Type II I/O cards. This modular design accommodates a variety of analog, digital, and networked audio requirements.
QSC CORE 510i KIT Features
- Networked audio: Supports up to 256 × 256 Q-LAN network audio channels with AES67 support, according to the supplied specifications.
- Flexible audio I/O: Eight onboard I/O card slots support configurable audio connectivity.
- Acoustic echo cancellation: Supports up to 64 AEC channels at a 200 ms tail length in Q-SYS Core mode.
- Network microphone support: Supports up to 14 Q-SYS NM-T1 network microphones, as listed in the supplied specifications.
- Dante audio: Supports up to 128 × 128 Dante channels, with 8 × 8 included according to the supplied product description.
- Q-SYS control: Provides a full-featured control engine, with an optional feature license as specified in the supplied information.
- GPIO connectivity: Provides 16 × 16 GPIO capability.
- Rackmount design: A 3.5-inch-high chassis designed for professional AV rack installations.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Looking for a replacement processor? Contact 833-965-3722 or visit HDTV Supply for assistance identifying an alternative for your AV system.
Ask a Question About the QSC CORE 510i KIT
The QSC CORE 510i KIT has been discontinued. Contact our team for questions about the archived specifications, system compatibility, or potential replacement processors.
Phone: 833-WOLFPACK (833-965-3722)
Website: HDTV Supply
QSC CORE 510i KIT Specifications
The following information is based on the supplied product specifications. Confirm configuration-dependent capabilities and critical technical details against the original manufacturer documentation.
| Specification | Details |
|---|---|
| Channel Capacity | |
| Total Network I/O Channels | 256 × 256 |
| Total Network I/O Streams | 256 × 256, as listed in the supplied data |
| Onboard Audio I/O | Eight audio I/O card slots; supports up to 128 × 128 total onboard I/O channels, depending on installed cards |
| AEC Channel Capacity | 64 channels at 200 ms tail length in Q-SYS Core mode |
| Q-SYS NM-T1 Capacity | Up to 14 network microphones, as listed in the supplied specifications |
| Multitrack Player Capacity | 16 tracks, expandable to 128 tracks in Q-SYS Core mode |
| Media Drive Capacity | Approximately 6 GB on the default drive in Q-SYS Core mode; upgrade options may be available |
| Front Panel and Controls | |
| Front Panel Controls | NEXT capacitive-touch button for OLED page navigation; ID capacitive-touch button for device identification; simultaneous NEXT and ID operation to clear network settings |
| Front Panel Connectors | Two USB host Type-A ports |
| Rear Panel Connections | |
| Serial | RS-232, male 9-pin DE-9 connector |
| Video Output | HDMI |
| USB | Four USB host Type-A ports |
| Auxiliary Network | RJ-45, 10/100/1000 Mbps |
| GPIO | Two female 15-pin DA-15 connectors; 16 × 16 GPIO capability as listed in the product description |
| Media Network LAN A and LAN B | Two Gigabit RJ-45 ports for Q-LAN, AES67, VoIP, WAN, media streaming, and other supported network functions |
| AC Power Connection | IEC power connector |
| Electrical and Environmental | |
| Line Voltage | 100–240 VAC, 50–60 Hz |
| Maximum Current Draw | 3.7 A at 100 VAC maximum, according to the supplied data; actual draw depends on configuration and workload |
| Operating Temperature | 0°C to 50°C |
| Maximum Relative Humidity | 85% RH, as listed in the supplied data |
| Heat Dissipation | 600 BTU/hour, listed as a power-conversion estimate under typical load |
| Physical and Regulatory | |
| Product Dimensions (H × W × D) | 3.5 × 19 × 15 inches (89 × 483 × 381 mm) |
| Regulatory Compliance | FCC 47 CFR Part 15 Class A, IC ICES-003, CE (EN55032 and EN55035), EU RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, China RoHS GB/T26572, EAC, RTL, UL, and C-UL, as listed in the supplied data |
| Included Accessories | 6 ft UL/CSA/IEC power cord, installation manual, and I/O connectors when purchasing I/O cards with Euro-style terminal blocks |
Configuration note: Audio I/O, Dante capacity, media storage, and other features may depend on installed cards, licenses, software mode, and configuration. Verify the required capabilities before choosing a replacement processor.
