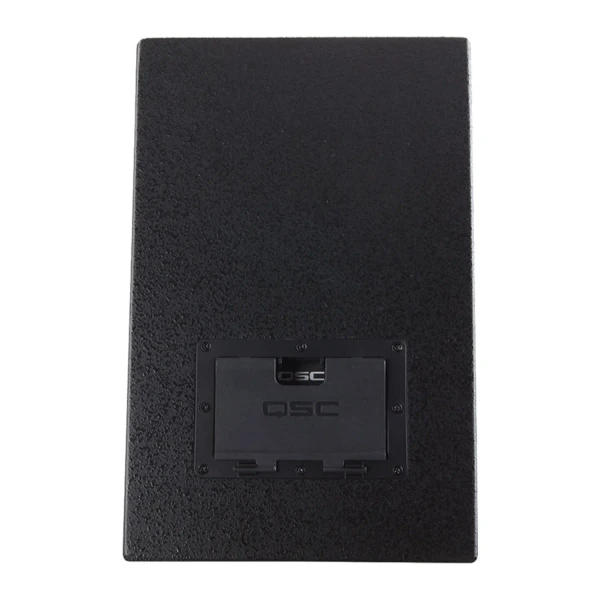

The QSC AD-S28Tw-BK AcousticDesign Surface Mount Subwoofer is a professional subwoofer designed to deliver controlled low-frequency reinforcement for compatible QSC AcousticDesign loudspeakers. Its dual 8-inch woofer configuration and dual-chamber bandpass enclosure make it suitable for commercial audio installations requiring enhanced bass performance.
Built with a marine-grade plywood cabinet, weather-resistant polypropylene woofers, a zinc-coated steel grille, and molded ABS endcaps, the AD-S28Tw-BK is designed for demanding audio installations. Its 70V/100V transformer and selectable 8-ohm bypass provide flexibility for distributed and low-impedance sound systems.
QSC AD-S28Tw-BK Features
- Dual 8-inch woofers: Weather-resistant polypropylene cones with rubber surrounds deliver low-frequency reinforcement.
- Dual-chamber bandpass enclosure: Designed for efficient, controlled bass reproduction.
- Flexible system integration: Supports 70V and 100V transformer operation and selectable 8-ohm bypass.
- Installation versatility: Features a marine-grade plywood cabinet, protective grille, ABS endcaps, and multiple mounting options.
Additional features: Defeatable passive 120Hz low-pass filter with impedance compensation, 250W continuous power rating as supplied, and textured black finish.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase QSC products from HDTV Supply, you are working with a team that understands the QSC ecosystem and can help you make informed product and system decisions.
Why Buy the QSC AD-S28Tw-BK from HDTV Supply?
Enhance your commercial audio system with the QSC AD-S28Tw-BK AcousticDesign Surface Mount Subwoofer. Contact HDTV Supply for product information and help selecting compatible audio equipment.
Call: 833-WOLFPACK
Website: www.hdtvsupply.com
Ask a Question
Have questions about the QSC AD-S28Tw-BK AcousticDesign Surface Mount Subwoofer? Contact HDTV Supply for product information, compatibility guidance, or installation assistance.
Phone: 833-WOLFPACK
Website: www.hdtvsupply.com
QSC AD-S28Tw-BK AcousticDesign Surface Mount Subwoofer Specifications
| Speaker System | |
|---|---|
| Product Type | Surface-mount bandpass subwoofer |
| Drivers | 2 × 8-inch (200 mm) weather-resistant polypropylene cone woofers with rubber surrounds |
| Nominal Impedance | 8 ohms |
| Continuous Power Rating | 250W RMS, as supplied |
| Maximum Recommended Amplifier Power | 500W RMS, as supplied |
| Peak Power Handling | 700W peak, as stated in the supplied feature information; verify with the manufacturer |
| Sensitivity | 94 dB, 2.83V, 1m, half space (2π) |
| Audio Performance | |
| Frequency Response (-6 dB) | 42 Hz–165 Hz |
| Frequency Response (-10 dB) | 36 Hz–205 Hz |
| Low-Pass Filter | Passive 120Hz filter, bypassable, with impedance compensation |
| Maximum SPL (2π Half Space) | 124 dB peak / 118 dB continuous |
| Maximum SPL (4π Full Space) | 118 dB peak / 112 dB continuous |
| Transformer and Connections | |
| Transformer Design | Custom low-distortion laminated core, wide-bandwidth design, as supplied |
| 70V Transformer Taps | 200W, 100W, 50W, 25W, as supplied |
| 100V Transformer Taps | The supplied information lists 200W, 100W, and 15W; confirm the tap settings with the manufacturer before publishing |
| Transformer Bypass | Switch-selectable 8-ohm bypass mode |
| Connectors | Four-position screw-terminal barrier strip (2 inputs, 2 outputs), as supplied |
| Construction and Environmental Rating | |
| Enclosure | Marine-grade plywood with ABS endcaps and steel grille |
| Finish | Textured black paint |
| Environmental Resistance | The supplied information describes resistance to humidity, salt spray, and dust; confirm the applicable test standard with QSC |
| Ingress Protection | IPX4, as supplied |
| Mounting and Physical Details | |
| Mounting Options | Rubber feet, forged-shoulder M6 steel eyebolts, steel yoke, and steel shear plates are listed in the supplied information. Confirm included accessories for the specific package. |
| Product Dimensions | Not provided in the supplied information |
| Product Weight | Conflicting values were supplied (43 lb / 19.5 kg and 55 lb / 25 kg); verify the correct weight before publishing |
| Packaging Information | |
| Package Weight | 59.35 lb, as supplied |
| Box Dimensions (L × W × H) | 29 × 20 × 14.75 inches, as supplied |
