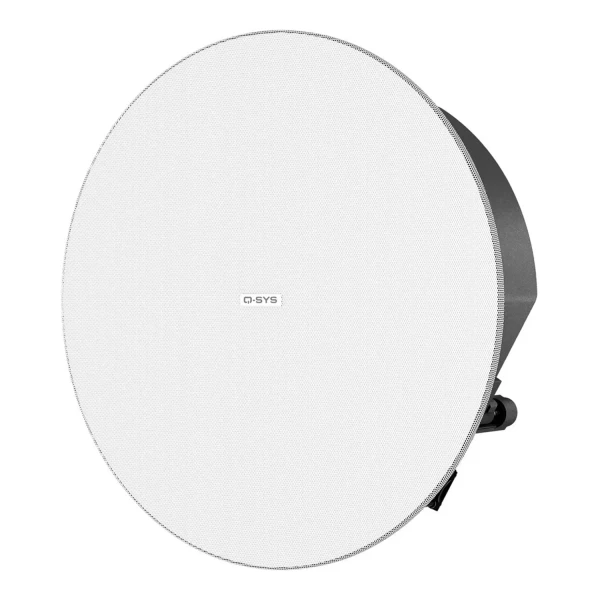

This QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) is designed for foreground and background sound reinforcement applications. Each speaker has a 70/100V multi-tap transformer that can also be bypassed for use with 16-ohm speaker systems.
Each speaker features a 6.5" weather-treated paper cone woofer and a 0.75" aluminum dome tweeter, positioned on a 135° DMT waveguide.
With a frequency response of 65 Hz to 20 kHz and a maximum SPL of 112 dB, these speakers are suitable for use in restaurants, retail stores, educational facilities, airports, and train stations.
Each speaker includes a C-ring, tile rail, rail screws, a Euroblock connector, a cutout template, and a grille.
QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) Features:
- Zero-bezel design for the needs of modern applications
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3 x double-stepped, long-travel dog-ear blind-mount system
- Intrinsic Correction voicings available via the Q-SYS Platform, including CX-Q amplifiers
- Blemish-free removable logo
- Removable conduit cover plate, also available as an accessory for pre-installation wiring
- UL1480 and UL2043 certified
- Available in white (RAL 9003), with black grille accessory sold separately.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why not buy this QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) from HDTV Supply today?
Ask a Question (0):
There are no questions for this product, click the button below to ask one.
QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) Specifications:
| Specification | Details |
|---|---|
| Active/Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | 2-Way |
| Power Handling | 60 W |
| 70 V Transformer Taps | 60 / 30 / 15 / 7.5 W or 16 Ohms Bypass |
| 100 V Transformer Taps | 60 / 30 / 15 W or 16 Ohms Bypass |
| Impedance | 83 to 667 Ohms |
| Transformer Wattage | 60 W |
| Enclosure Type | Sealed |
| HF Driver | 1x 0.75" / 19.05 mm Waveguide-Coupled Aluminum Dome Tweeter |
| LF Driver | 1x 6.5" / 165.1 mm Paper Woofer |
| Frequency Range | 65 Hz to 20 kHz -10 dB |
| Maximum SPL (Continuous) | 106 dB |
| Maximum SPL (Peak) | 112 dB |
| Sensitivity | 88 dB |
| Coverage Angle | 135° (Conical) |
| Directivity / Q Factor | 6.5 |
| Directivity Index | 8 |
| Inputs/Outputs | 1x Block 4-Pin Speaker Input/Thru |
| Environmental Resistance | No |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Color | White |
| Mounting | Ceiling Tile |
| Cutout Size | 13.4" / 340.9 mm |
| Construction Material | ABS, Steel |
| Dimensions | 13.37 x 3.95" / 33.96 x 10.03 cm |
| Weight | 9.3 lb / 4.2 kg |
| Package Weight | 28.72 lb |
| Box Dimensions (LxWxH) | 33.63 x 18.05 x 7.03" |
Why not buy this QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) from HDTV Supply today?
QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) Manuals:
What is the QSC AD-C6T-LPZB-WH?
A: The QSC AD-C6T-LPZB-WH is a pair of 6.5-inch, 2-way, low-profile, zero-bezel ceiling loudspeakers designed for foreground and background sound reinforcement.
How many speakers are included?
A: The package includes two white ceiling loudspeakers.
What type of woofer does this speaker use?
A: Each speaker features a 6.5-inch weather-treated paper cone woofer.
What type of tweeter does it have?
A: Each speaker uses a 0.75-inch waveguide-coupled aluminum dome tweeter.
What is the frequency range?
A: The specified frequency range is 65 Hz to 20 kHz at -10 dB.
What is the maximum SPL?
A: The speakers deliver 106 dB continuous SPL and 112 dB peak SPL.
Does this speaker support 70V and 100V audio systems?
A: Yes. Each speaker includes a multi-tap transformer for 70V and 100V distributed audio systems.
Can the transformer be bypassed?
A: Yes. The transformer can be bypassed to operate with 16-ohm speaker systems.
What is the speaker's coverage angle?
A: The speaker provides 135-degree conical coverage using a DMT waveguide.
What accessories are included?
A: Included accessories are C-rings, tile rails, rail screws, Euroblock connectors, cutout templates, and grilles.
Where can the QSC AD-C6T-LPZB-WH be installed?
A: These ceiling loudspeakers are suitable for foreground and background sound reinforcement in restaurants, retail stores, educational facilities, airports, and train stations.
What is the benefit of the zero-bezel design?
A: The zero-bezel design provides a clean, low-profile appearance that integrates neatly into modern ceiling installations.
Is a black grille available for this speaker?
A: The speakers are supplied in white (RAL 9003). A black grille accessory is sold separately.
Does this model support Q-SYS Intrinsic Correction voicings?
A: Yes. Intrinsic Correction voicings are available through the Q-SYS Platform, including CX-Q amplifiers.
Where can I find the QSC AD-C6T-LPZB-WH user manual?
A: The user manual is linked in the Manuals tab on this product page.
Why not buy this QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) from HDTV Supply today?
QSC AD-C6T-LPZB-WH AcousticDesign 6.5 Inch 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White) Warranty:
QSC Q-SYS hardware products, including applicable NL, NM, NC, NV, and QIO series products, carry a 3-year warranty. Please confirm the warranty terms applicable to this specific model with HDTV Supply or QSC.
