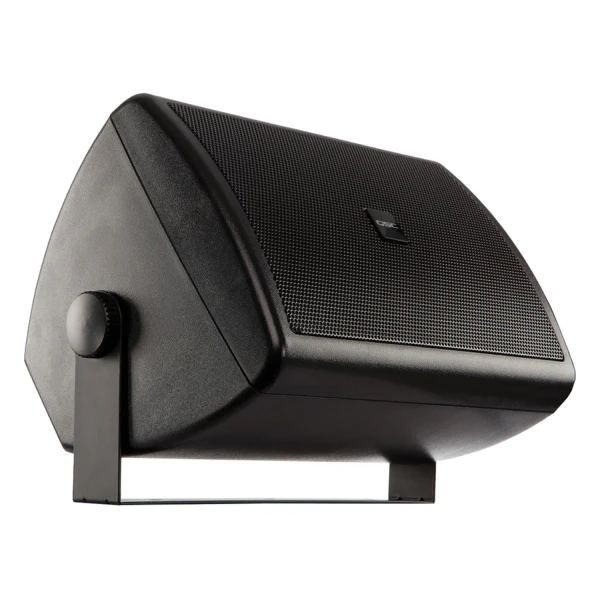

The QSC AC-S6T-BK AcousticCoverage Series 6.5-Inch 2-Way 30W Loudspeaker (Pair, Black) is a pair of transformer-equipped surface-mount loudspeakers designed to deliver clear vocal reproduction and balanced background music. Supporting 70V, 100V, and 8-ohm operation, these speakers are suitable for paging, audiovisual conferencing, and background music applications.
Each speaker features a 6.5-inch polypropylene woofer and a 1-inch aluminum dome tweeter housed in a UV-treated ABS enclosure with a ported baffle. With 130-degree conical coverage and a frequency range of 60 Hz to 20 kHz (-10 dB), the AC-S6T-BK provides broad sound distribution for commercial environments.
The speakers support 30W RMS power handling and deliver up to 107 dB peak SPL. A rear-panel 4-pole Euroblock connector supports input and loop-through wiring, while the included yoke brackets simplify surface-mount installation.
QSC AC-S6T-BK Features
- Clear Vocal Reproduction: High-quality transducers enhance speech clarity and musicality for paging, conferencing, and background music.
- 6.5-Inch Two-Way Design: Combines a polypropylene woofer with a 1-inch aluminum dome tweeter in each speaker.
- Wide 130-Degree Coverage: Provides broad conical sound dispersion to help achieve even coverage across listening areas.
- Flexible Audio Integration: Supports 70V/100V transformer operation and an 8-ohm bypass, with a rear-panel tap selector and 4-pole Euroblock input/loop-through connector.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC AC-S6T-BK from HDTV Supply?
Choose HDTV Supply for the QSC AC-S6T-BK AcousticCoverage loudspeaker pair. These speakers combine broad audio coverage, flexible transformer settings, and clear sound for commercial paging, conferencing, and background music systems. Contact our team for product information and compatibility guidance.
Ask a Question
Have questions about the QSC AC-S6T-BK AcousticCoverage Series loudspeaker pair? Contact HDTV Supply for product information, installation guidance, and assistance with your audio system requirements.
Phone: 833-WOLFPACK
QSC AC-S6T-BK Specifications
| Speaker | |
|---|---|
| Active/Passive | Passive |
| Number of Included Speakers | 2 (pair) |
| Speaker Configuration | 2-Way |
| Power Handling | 30W RMS (2-hour rating, as supplied) |
| Recommended Amplifier Power | 60W |
| Transformer Wattage | 30W |
| 70V Transformer Taps | 30W / 15W / 7.5W / 3.7W / 1.9W, or 8-ohm bypass |
| 100V Transformer Taps | 30W / 15W / 7.5W / 3.8W, or 8-ohm bypass |
| Impedance | 8 ohms (transformer bypassed) |
| Enclosure Type | Bass-reflex |
| Drivers | |
| HF Driver | 1 × 1-inch (2.54 cm) aluminum dome tweeter per speaker |
| HF Voice Coil | 1 inch (2.54 cm) |
| LF Driver | 1 × 6.5-inch (16.51 cm) polypropylene woofer per speaker |
| LF Voice Coil | 1 inch (2.54 cm) |
| Performance | |
| Frequency Range | 60 Hz–20 kHz (-10 dB) |
| Maximum SPL (Continuous) | 101 dB |
| Maximum SPL (Peak) | 107 dB |
| Sensitivity | 86 dB SPL |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 6 |
| Directivity Index | 8 dB |
| Connectivity | |
| Inputs/Outputs | 1 × removable 4-pole block speaker input/through connector |
| Maximum Wire Gauge | 18 AWG |
| Physical | |
| Environmental Resistance | IP44 dust and water resistance |
| Operating Conditions | -4°F to 122°F (-20°C to 50°C) |
| Color | Black |
| Mounting | One bracket point on each side; yoke bracket included |
| Construction Material | ABS enclosure and metal grille |
| Dimensions (Each Speaker) | 11.9 × 8.5 × 7.8 inches (30.23 × 21.59 × 19.81 cm) |
| Weight (Each Speaker) | 8.3 lb (3.8 kg) |
| Packaging Information | |
| Package Weight | 18.5 lb |
| Box Dimensions (L × W × H) | 14 × 10 × 10 inches |
