QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White)

QSC

QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White)
$370.00
Part Number:
QSC-AC-C6T
Condition:
New
Availability:
3-5 Days
1:
30W RMS Power Handling
2:
110 dB Peak Maximum SPL
3:
65 Hz to 20 kHz Frequency Range
4:
Low-Saturation Multi-Tap Transformer
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

This QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White) is a pair of transformer-equipped 6-inch ceiling loudspeakers designed to deliver enhanced vocal clarity. Supporting 70/100V and 8-ohm operation, these speakers are suitable for paging, A/V conferencing, and background music applications.

Featuring a 6-inch polypropylene woofer and a coaxially mounted 0.86-inch silk dome tweeter, the AC-C6T uses a blind-mount assembly with a ported baffle to provide broad 110-degree conical coverage and a frequency range of 65 Hz to 20 kHz (-10 dB).

With 30W RMS power handling and a peak maximum SPL of 110 dB, the AC-C6T delivers clear sound for commercial audio installations.

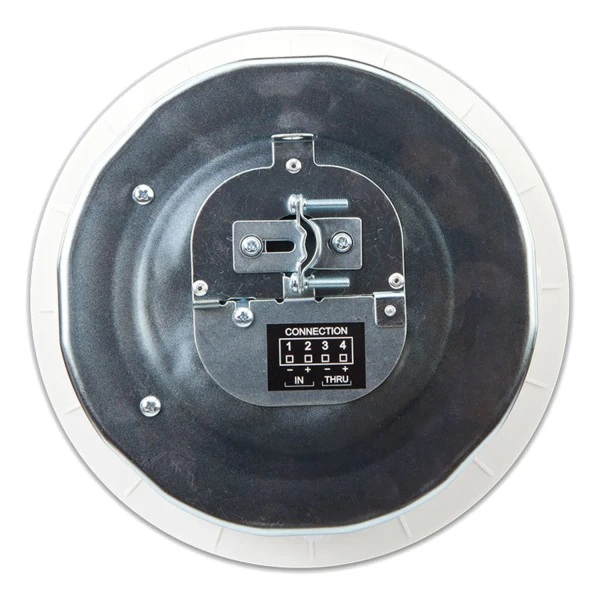

A 4-pole Euroblock connector with loop-through wiring is positioned under a swivel plate for convenient system connections. Included mounting hardware simplifies in-ceiling installation.

READ MORE

QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White) Features:

  • High-quality transducers enhance vocal clarity and musical performance compared with typical background music loudspeakers.
  • 6-inch polypropylene cone woofer with butyl rubber surround and sensitivity-matched, coaxially mounted 0.86-inch silk dome tweeter.
  • 110-degree conical coverage helps reduce the number of loudspeakers needed for even coverage in low-ceiling applications.
  • Blind-mount assembly with a ported baffle optimizes the galvanized steel back can for low-frequency extension down to 65 Hz (-10 dB).
  • Low-saturation, low-loss 70/100V transformer with 8-ohm bypass.
  • Rotary tap-selector switch accessible beneath the painted steel grille.
  • Removable 4-pole Euroblock connector with loop-through wiring under a quick-access swivel plate.
  • QSC Intrinsic Correction voicing filters are available through compatible Q-SYS processing or CXD amplifier platforms, sold separately.
  • White RAL 9010 finish with UV inhibitors to help prevent discoloration over time.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why not buy this QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White) from HDTV Supply today?

Ask a Question About the QSC AC-C6T Ceiling Loudspeaker

Need help selecting the right ceiling loudspeaker for your installation? Contact HDTV Supply for product information and assistance.

Phone: 833-WOLFPACK

Website: www.hdtvsupply.com

Get Expert Help Choosing Your QSC Audio Solution

QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White) Specifications:

Speaker
Active/Passive Passive
Number of Included Speakers 2
Speaker Configuration 2-Way
Power Handling 30 W RMS
70V Transformer Taps 30 / 15 / 7.5 / 3.7 / 1.9 W or 8 Ohms Bypass
100V Transformer Taps 30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass
Impedance 8 Ohms (Transformer Bypassed)
Transformer Wattage 30 W
Enclosure Type Bass-Reflex
Drivers
HF Driver 1 × 0.86-inch / 2.18 cm Silk Dome Tweeter
LF Driver 1 × 6-inch / 15.24 cm Polypropylene Woofer
Performance
Frequency Range 65 Hz to 20 kHz (-10 dB)
Maximum SPL (Continuous) 104 dB
Maximum SPL (Peak) 110 dB
Sensitivity 89 dB (Half-Space)
Coverage Angle 110° (Conical)
Connectivity
Inputs/Outputs 1 × Removable 4-Pole Block Speaker Input/Thru
Maximum Wire Gauge 18 AWG
Physical
Certifications UL
Environmental Resistance No
Color White
Mounting In-Ceiling
Cutout Size 9 × 9 inches / 22.9 × 22.9 cm
Mount Surface Thickness 0.3 to 1.5 inches / 6.4 to 38.1 mm
Construction Material ABS, Metal Grille, Steel
Dimensions 10.24 × [dimension not provided] inches / 26.01 × [dimension not provided] cm
Weight 7.6 lb / 3.4 kg
Packaging Info
Package Weight 20.8 lb
Box Dimensions (L × W × H) 24.3 × 12.8 × 12.5 inches

Why not buy this QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White) from HDTV Supply today?

QSC AC-C6T Manuals and Documentation

QSC AC-C6T User Manual

QSC AC-C6T Datasheet

Why not buy this QSC AC-C6T AcousticCoverage Series 6 Inch 2-Way 30W Ceiling Loudspeaker (Pair, White) from HDTV Supply today?

QSC AC-C6T AcousticCoverage Series Ceiling Loudspeaker FAQs

The QSC AC-C6T is a passive 6-inch, 2-way ceiling loudspeaker sold as a pair for commercial paging, conferencing, and background music systems.

The package includes two QSC AC-C6T ceiling loudspeakers in white.

The AC-C6T is rated for 30W RMS power handling.

Yes. Its built-in transformer supports 70V and 100V distributed audio systems and includes an 8-ohm bypass setting.

The AC-C6T features a 6-inch polypropylene woofer with a butyl rubber surround and a coaxially mounted 0.86-inch silk dome tweeter.

The specified frequency range is 65 Hz to 20 kHz at -10 dB.

The supplied specifications list a maximum SPL of 104 dB continuous and 110 dB peak.

The AC-C6T provides 110-degree conical coverage to help distribute sound across the listening area.

It uses a removable 4-pole Euroblock connector with input and loop-through wiring.

Yes. It is designed for in-ceiling mounting and includes mounting hardware to simplify installation.

The AC-C6T is suitable for paging, A/V conferencing, and background music in offices, retail spaces, hospitality venues, and other commercial environments.

Yes. Use the 8-ohm bypass setting and ensure the amplifier is compatible with the speaker load and installation requirements.

Its wide conical coverage helps distribute audio evenly and may reduce the number of speakers needed in suitable low-ceiling installations.

Compatible QSC Intrinsic Correction voicing filter sets are available through supported Q-SYS processing or CXD amplifier platforms, sold separately.

Check the required system voltage, transformer tap setting, ceiling cutout size, mounting surface thickness, wiring, and amplifier compatibility before installation.
