QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White)

QSC

QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White)
$540.00
Part Number:
QSC-AC-C8T
Condition:
New
Availability:
3-5 Days
1:
80W RMS Power Handling
2:
114 dB Peak Maximum SPL
3:
52 Hz to 20 kHz Frequency Range
4:
Low-Saturation Multi-Tap Transformer
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

This QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White) is a pair of transformer-equipped 8-inch ceiling loudspeakers designed to deliver enhanced vocal clarity. Supporting both 70/100V and 8-ohm operation, these speakers are ideal for paging, A/V conferencing, and background music applications.

Featuring an 8-inch polypropylene woofer and a coaxially mounted 0.86-inch silk dome tweeter, the AC-C8T uses a blind-mount assembly with a ported baffle to deliver broad 100-degree conical coverage and a frequency range of 52 Hz to 20 kHz (-10 dB).

With 80W RMS power handling and a peak maximum SPL of 114 dB, the AC-C8T provides clear, consistent audio for commercial sound installations.

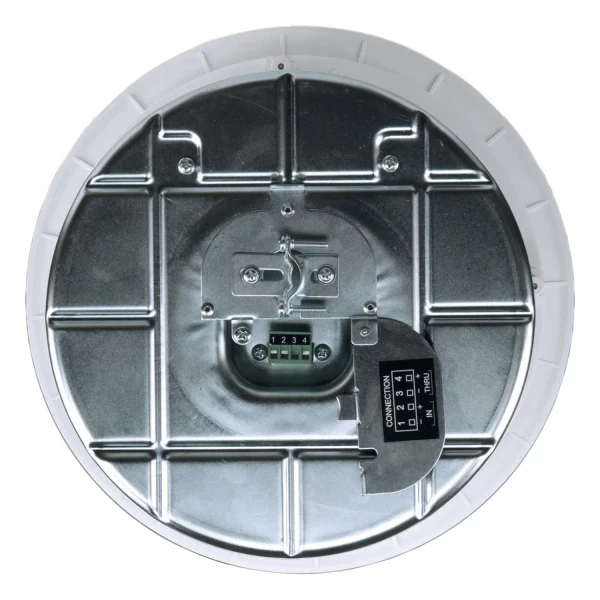

A 4-pole Euroblock connector with loop-through wiring is located under a swivel plate for convenient system connections. Included mounting hardware simplifies in-ceiling installation.

READ MORE

QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White) Features:

  • High-quality transducers enhance vocal clarity and musical performance for background music applications.
  • 8-inch polypropylene woofer with butyl rubber surround and sensitivity-matched, coaxially mounted 0.86-inch silk dome tweeter.
  • 100-degree conical coverage helps reduce the number of loudspeakers needed for even coverage in low-ceiling spaces.
  • Blind-mount assembly with a ported baffle optimizes the galvanized steel back can for low-frequency extension.
  • Low-saturation, low-loss 70/100V transformer with 8-ohm bypass.
  • Rotary tap-selector switch accessible beneath the painted steel grille.
  • 4-pole removable Euroblock connector with loop-through wiring under a quick-access swivel plate.
  • QSC Intrinsic Correction voicing filters are available through compatible Q-SYS processing or CXD amplifier platforms, sold separately.
  • White RAL 9010 finish with UV inhibitors to help prevent discoloration over time.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why not buy this QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White) from HDTV Supply today?

Ask a Question About the QSC AC-C8T Ceiling Loudspeaker

Need help choosing the right ceiling loudspeaker for your installation? Contact HDTV Supply for product information and assistance.

Phone: 833-WOLFPACK

Website: www.hdtvsupply.com

Get Expert Help Choosing Your QSC Audio Solution

QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White) Specifications:

Speaker
Active/Passive Passive
Number of Included Speakers 2
Speaker Configuration 2-Way
Power Handling 80 W RMS
70V Transformer Taps 60 / 30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass
100V Transformer Taps 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
Impedance 8 Ohms (Transformer Bypassed)
Transformer Wattage 60 W
Enclosure Type Bass-Reflex
Drivers
HF Driver 1 × 0.86-inch / 2.18 cm Silk Dome Tweeter
LF Driver 1 × 8-inch / 20.32 cm Polypropylene Woofer
Performance
Frequency Range 52 Hz to 20 kHz (-10 dB)
Maximum SPL (Continuous) 108 dB
Maximum SPL (Peak) 114 dB
Sensitivity 89 dB (Half-Space)
Coverage Angle 100° (Conical)
Connectivity
Inputs/Outputs 1 × Removable 4-Pole Block Speaker Input/Thru
Maximum Wire Gauge 18 AWG
Physical
Certifications UL
Environmental Resistance No
Color White
Mounting In-Ceiling
Cutout Size 11.2 × 11.2 inches / 28.4 × 28.4 cm
Mount Surface Thickness 0.2 to 1.5 inches / 0.6 to 3.8 cm
Construction Material ABS, Metal Grille, Steel
Dimensions 12.4 × [dimension not provided] inches / 31.5 × [dimension not provided] cm
Weight 11.5 lb / 5.2 kg
Packaging Info
Package Weight 30.3 lb
Box Dimensions (L × W × H) 29.5 × 15.5 × 15.3 inches

Why not buy this QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White) from HDTV Supply today?

QSC AC-C8T Manuals and Documentation

QSC AC-C8T User Manual

QSC AC-C8T Datasheet

Why not buy this QSC AC-C8T AcousticCoverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker (Pair, White) from HDTV Supply today?

QSC AC-C8T AcousticCoverage Series Ceiling Loudspeaker FAQs

The QSC AC-C8T is an 8-inch, 2-way passive ceiling loudspeaker sold as a pair, designed for commercial paging, conferencing, and background music systems.

The package includes two QSC AC-C8T ceiling loudspeakers.

The AC-C8T is rated for 80W RMS power handling.

Yes. The built-in transformer supports 70V and 100V distributed audio systems and also offers an 8-ohm bypass setting.

It uses an 8-inch polypropylene woofer and a coaxially mounted 0.86-inch silk dome tweeter.

The specified frequency range is 52 Hz to 20 kHz at -10 dB.

The supplied specifications list a maximum SPL of 108 dB continuous and 114 dB peak.

The AC-C8T provides 100-degree conical coverage for broad sound distribution.

It features a removable 4-pole Euroblock connector with input and loop-through wiring for system connections.

Yes. It is designed for in-ceiling mounting and includes hardware to simplify installation.

The QSC AC-C8T is designed for commercial paging, A/V conferencing, and background music in offices, retail spaces, hospitality venues, and other commercial environments.

Yes. Set the transformer to bypass for 8-ohm operation and ensure the connected amplifier is compatible with the speaker load.

Its broad conical coverage can help distribute sound more evenly and reduce the number of speakers needed in suitable low-ceiling installations.

Compatible QSC Intrinsic Correction voicing filter sets are available through supported Q-SYS processing or CXD amplifier platforms, which are sold separately.

Confirm the required system voltage, transformer tap setting, ceiling cutout dimensions, mounting depth, and amplifier compatibility before installation.

Need Help Selecting QSC Ceiling Loudspeakers?

Contact HDTV Supply for assistance choosing a suitable speaker solution for your installation.

QSC AC-C8T Warranty Information

Please confirm the applicable warranty terms for the QSC AC-C8T with HDTV Supply or the manufacturer before purchase.
