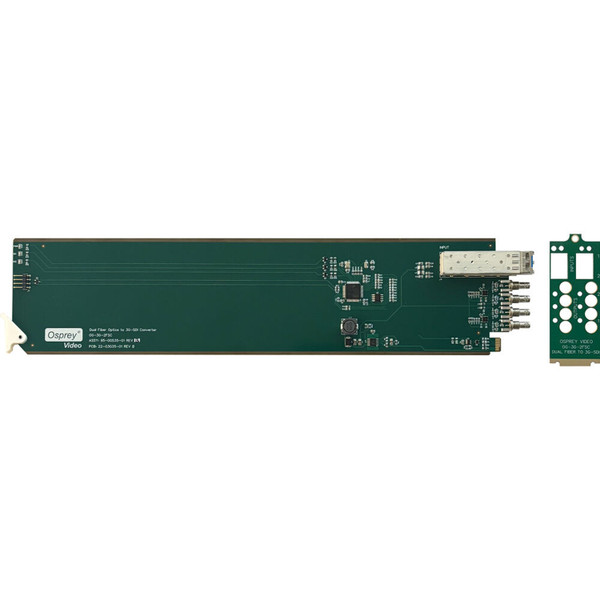

This Osprey OG-3G-2FSC Dual Fiber Optic to 3G-SDI Converter Card is video signal converter card is designed to take up one slot in an openGear DFR-8321, OGx, or OG3 frame, and it includes a rear module that takes up two slots to accommodate up to two cards. It can be monitored and configured via the openGear Dashboard control software for Windows, Linux, or macOS.
Connections include dual LC fiber inputs that receive SDI signals for output to dual 3G-SDI per fiber signal. The fiber input supports wavelengths between 1270 through 1610nm. The card supports SMPTE-259/292/424 and DVB-ASI standards, supports HDR video, and it features power and signal lock status LEDs. The card supports BNC cable lengths up to 492'.
Osprey OG-3G-2FSC Dual Fiber Optic to 3G-SDI Converter Card Features:
- openGear Card with Rear I/O Module
- Dual Single-Mode Duplex LC Fiber Inputs
- Dual 3G-SDI Outputs per Fiber Signal
- SMPTE-259/292/424 and DVB-ASI Standards
- HDR Support, Status LEDs
- Includes Dual-Slot Rear Module
- For an openGear OGx and OG3 Frame
- Also Fits DFR-8321 Frame
Why not buy this Osprey OG-3G-2FSC Dual Fiber Optic to 3G-SDI Converter Card from HDTV Supply today?
Osprey OG-3G-2FSC Dual Fiber Optic to 3G-SDI Converter Card Specification:
- Inputs/Outputs
- Video I/O: Input: 2x LC Fiber Duplex, Output: 2x BNC (3G-SDI)
- Expansion Slots: No
- Latency: No
- Format Support
- Video Resolution: BNC Input: 1920 x 1080p up to 60 fps
- Embedded Audio: SDI
- Reclocking: Yes
- Standards
- Video Standard Compliance: SMPTE: 259M/292M/424M
- HDR Support: Yes
- Hardware
- Wireless: No
- Power
- Power Consumption: 3 W
- General
- Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
- Storage Conditions: -40 to 140°F / -40 to 60°C at 10 to 90% Humidity
- Packaging Info
- Package Weight: 0.565 lb
- Box Dimensions (LxWxH): 15 x 4.8 x 2.3"
