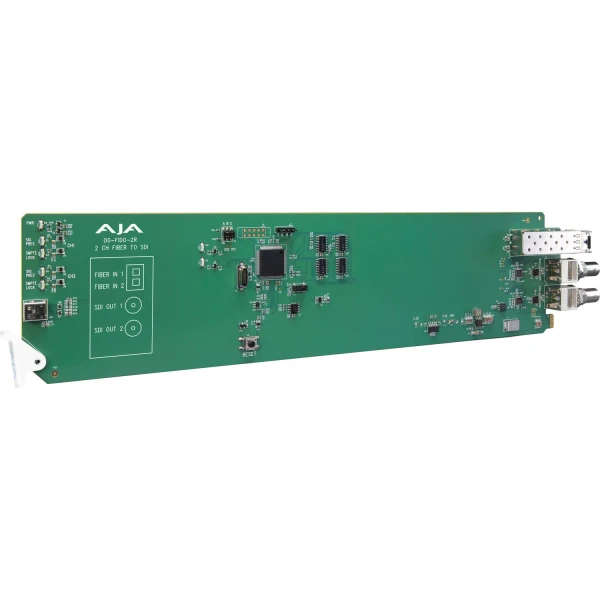

This AJA OG-FiDO-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables - useful for eliminating ground loop problems.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
READ MORE
AJA OG-FiDO-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver Features:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 2x Multi-Mode LC Fiber
- Outputs: 2x 3G-SDI BNC
- Supports pass-through of SDI metadata, including HDR
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Nominal Wavelength: 850 nm
- Power: 2.5 watts
- Hot swap capable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Why not buy this AJA OG-FiDO-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver from HDTV Supply today?
AJA OG-FiDO-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver Specifications:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Video Input Digital
- 2-channel independent Multi-Mode LC Fiber Inputs, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Sensitivity: 0dBm (Min), -15dBm (Max)
- Video Output Digital
- 2-channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424
- Reclocking:
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.966 Gbps
- 2.970 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
- Size (w x d x h):
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight: 0.5 lb (0.3 kg)
- Power: openGear frame compatible, 2.5 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
