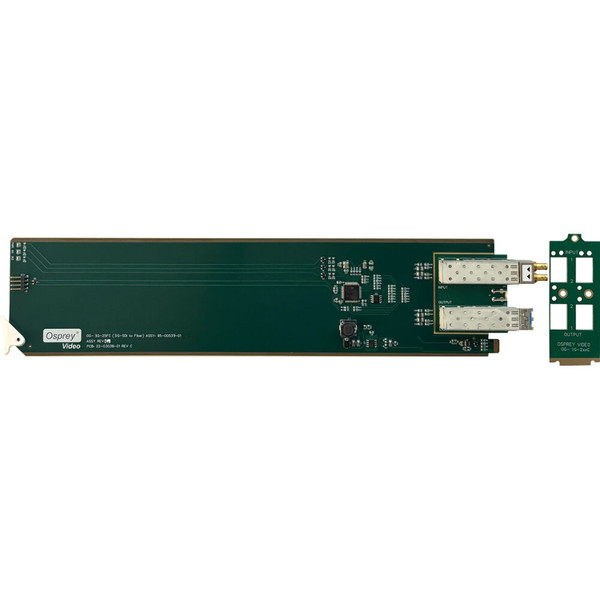

This Osprey OG-3G-2SFC Dual-Channel 3G-SDI to Dual Single-Mode LC Fiber Converter Card is designed to take up one slot in an openGear DFR-8321, OGx, or OG3 frame, and it includes a rear module that takes up two slots to accommodate up to two cards. It can be monitored and configured via the openGear Dashboard control software for Windows, Linux, or macOS.
Connections include dual 3G-SDI HD-BNC inputs that convert to dual single-mode LC fiber outputs. The fiber output supports the 1310nm wavelength. The card also supports SMPTE-259/292/424 and DVB-ASI standards, and it features power and signal lock status LEDs.
Osprey OG-3G-2SFC Dual-Channel 3G-SDI to Dual Single-Mode LC Fiber Converter Card Features:
- openGear Card with Rear I/O Module
- Dual 3G-SDI HD-BNC Inputs
- Single-Mode Duplex LC Fiber Output
- Integrated Reclocking, Status LEDs
- SMPTE-259/292/424 and DVB-ASI Standards
- Includes Dual-Slot Rear Module
- For an openGear OGx and OG3 Frame
- Also Fits DFR-8321 Frame
Why not buy this Osprey OG-3G-2SFC Dual-Channel 3G-SDI to Dual Single-Mode LC Fiber Converter Card from HDTV Supply today?
Osprey OG-3G-2SFC Dual-Channel 3G-SDI to Dual Single-Mode LC Fiber Converter Card Specification:
- Inputs/Outputs
- Video I/O:
- Input: 2x BNC (3G-SDI)
- Output: 2x LC Fiber Simplex
- Expansion Slots: No
- Latency: No
- Video I/O:
- Format Support
- Video Resolution: BNC Input: 1920 x 1080p up to 60 fps
- Embedded Audio: SDI
- Reclocking: Yes
- Standards
- Video Standard Compliance: SMPTE: 259M/292M/424M
- HDR Support: Yes
- Hardware
- Wireless: No
- Power
- Power Consumption: 3 W
- General
- Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
- Storage Conditions: -40 to 140°F / -40 to 60°C at 10 to 90% Humidity
- Packaging Info
- Package Weight: 0.605 lb
- Box Dimensions (LxWxH): 14.9 x 4.8 x 2.3"
