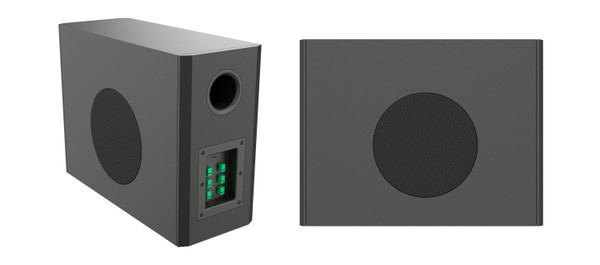

The Kramer WM-8P-SUB adds low-frequency output to an installed audio system. It supports low-impedance or transformer-tapped operation and provides connection points for satellite speakers.
WM-8P-SUB Detailed Features
- Add low-frequency support to installed audio. The passive eight-inch subwoofer reinforces the lower part of the audio range. It works with an appropriate external amplifier and satellite speakers in a complete installed sound system.
- Select 8-ohm or distributed-line operation. Support for 8-ohm, 70V, and 100V systems provides installation flexibility. Set the operating mode or transformer tap to match the amplifier and speaker-line design.
- Match the amplifier to the speaker rating. The listed handling is 80W continuous and 120W peak. Use the relevant operating mode and load requirements when selecting amplifier capacity.
- Connect satellite speakers through the integrated crossover. Four 8-ohm satellite outputs and a passive crossover support a combined speaker arrangement. Check the approved satellite configuration and total amplifier load before wiring the system.
- Use the built-in low-pass filtering. A 300Hz passive low-pass crossover directs appropriate low-frequency content to the subwoofer. The side-firing bass-reflex port supports its low-frequency acoustic design.
- Extend a supported subwoofer arrangement. A loop output is provided for daisy-chaining additional WM-8P-SUB units. The resulting load and wiring must remain within the amplifier and product requirements.
- Keep the installed wiring concealed. A recessed side connector compartment and removable cover help organize and conceal cables. The wall bracket and isolation feet provide installation options suited to the room.
- Match the black finish to the room. This listing is for the black enclosure. The acoustically transparent cloth grille and compact wall-mount design help integrate the speaker into a finished interior.
Specifications
| Manufacturer part number | 60-000136 |
|---|---|
| Audio — Driver | LF Driver: 200mm (8") high output driver with polypropylene cone and rubber surround |
| Audio — Frequency Characteristics | Frequency Range (–10dB): 40Hz — 600Hz |
| Audio — Frequency Characteristics | Frequency Response (±3dB): 60Hz — 300Hz (crossover frequency) |
| Audio — Power | Power Handling: 80W continuous / 120W peak |
| Audio — Power | Impedance: 8Ω |
| Audio — Multi-Tap Transformer Settings | 70V: 80W / 40W / 20W / 10W |
| Audio — Multi-Tap Transformer Settings | 100V: 80W / 40W / 20W |
| Audio — Acoustical Parameters | Sensitivity (1W @ 1m): 83dB |
| Audio — Acoustical Parameters | Maximum SPL @ 1m: Continuous: 102dB SPL / Peak: 104dB SPL |
| Audio — Acoustical Parameters | Dispersion: Omnidirectional |
| MECHANICAL — Installation | Type: Surface mounted or desktop with decoupling pads |
| MECHANICAL — Installation | Mounting: Wall–mount bracket (included); decoupling pads for desktop installation (included) |
| MECHANICAL — Installation | Connectors: 6 × 2–pin pluggable Euroblock connectors, 28–12 AWG |
| MECHANICAL — Physical | Weight: 15kg (33lbs) |
| MECHANICAL — Physical | Dimensions: 500 × 380 × 200mm (19.7" × 15" × 7.9") |
| MECHANICAL — Materials | Grille: Powder–coated steel |
| MECHANICAL — Materials | Cabinet: MDF |
| MECHANICAL — Materials | Bracket: Galvanized steel |
| Shipping | Packaging: Single speaker per box |
| Shipping | Packaging Materials: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling |
| Shipping | Shipping Dimensions: 572 × 272 × 455mm (22.6" × 10.7" × 17.9") |
| Shipping | Shipping Weight: 18kg (40lbs) |
| Environmental Conditions | Operating Temperature: — 5°C to +50°C (23°F to 122°F) |
| Environmental Conditions | Storage Temperature: — 10°C to +55°C (14°F to 131°F) |
| Environmental Conditions | Humidity: 40% to 75% RH, non–condensing |
| Regulatory Compliance (Standards Compliance) | Environmental: RoHS, REACH, WEEE |
| Included in Box | 1 WM–8P–SUB speaker (single unit) |
| Included in Box | 1 wall mounting bracket |
| Included in Box | 4 bracket screws |
| Included in Box | 6 x 2–pin pluggable Euroblock connectors, 28–12AWG |
| Included in Box | 1 cable cover |
| Included in Box | 4 decoupling pads (for desktop use) |
| Included in Box | Quick Start Guide |
| Color | Black |
Technical Questions and Answers
What does the WM-8P-SUB do?
The Kramer WM-8P-SUB adds low-frequency output to an installed audio system. It supports low-impedance or transformer-tapped operation and provides connection points for satellite speakers.
What is specified for driver?
LF Driver: 200mm (8") high output driver with polypropylene cone and rubber surround
What is specified for frequency characteristics?
Frequency Range (–10dB): 40Hz — 600Hz
What are the power requirements?
Power Handling: 80W continuous / 120W peak
What is specified for multi-tap transformer settings?
70V: 80W / 40W / 20W / 10W
What is specified for acoustical parameters?
Sensitivity (1W @ 1m): 83dB
What is specified for installation?
Type: Surface mounted or desktop with decoupling pads
What is specified for physical?
Weight: 15kg (33lbs)
Choosing the Right Product
What is the Kramer WM-8P-SUB used for?
It is used for commercial sound systems that need additional bass. Adds low-frequency output to an installed audio system. It supports low-impedance or transformer-tapped operation and provides connection points for satellite speakers.
Who should choose the WM-8P-SUB?
Choose this model when your project needs commercial sound systems that need additional bass. Compare the model-specific connections and specifications above with the equipment in your system.
What should I check before ordering the WM-8P-SUB?
Confirm manufacturer part 60-000136, the black finish, the required connections and the installation requirements. Use the linked documentation to check compatible equipment and required accessories.
