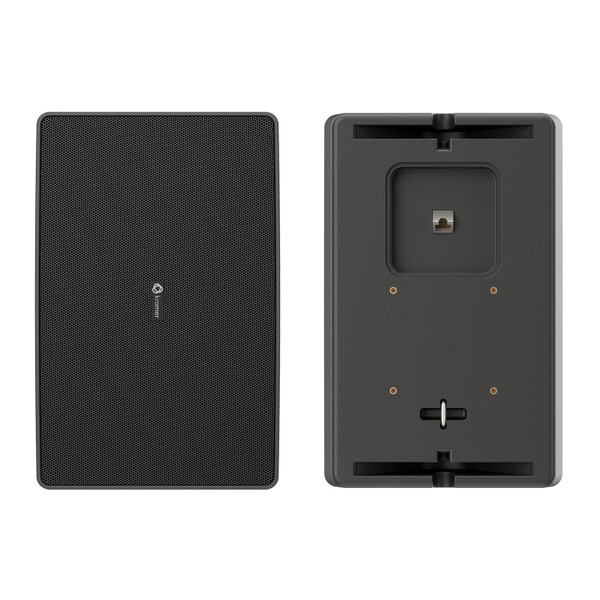

This Kramer WM-8D/60-000139 8 Inch 2-Way Wall Mounted PoE Powered Dante Speaker is a high−performance 8” wall−mounted PoE−powered Dante speaker designed to deliver rich, full−bodied sound for premium indoor environments such as boardrooms, auditoriums, restaurants, and premium meeting spaces. Featuring a built−in amplifier, DSP, and mixer, the WM−8D supports two−channel mixing and advanced sound shaping with parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “find me” tone − applicable via Kramer’s intuitive Speaker Utility software.
Designed with the system integrator in mind, the WM−8D comes with Kramer’s EasyMount bracket for flexible vertical, horizontal, or corner installation, and includes standard 75mm VESA mount threads for additional mounting options. Available in black or white, the WM−8D combines exceptional audio performance with a clean, professional design and integrates smoothly with Kramer Control or third−party control systems via its robust API.
Kramer WM-8D/60-000139 8 Inch 2-Way Wall Mounted PoE Powered Dante Speaker Features:
- Exceptional sound performance
- Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
- Supports PoE++/PoE+/PoE (auto–negotiate)
- Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
- Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
- Power handling: 10W continuous / 30W peak
- Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL - Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
FCC/IC, BIS, RCM
RoHS, REACH, WEEE - Industrial design: — EasyMount bracket for flexible wall installation in vertical, horizontal, or corner orientations, and features standard 75mm VESA mount threads for expanded mounting options, available in black & white colors, removable logo
- Eco–friendly mono–material packaging
- The WM–8D wall–mounted Speaker is a high–end solution for indoor applications delivering high–performance high–quality sound in professional Dante networked audio installations.
Why not buy this Kramer WM-8D/60-000139 8 Inch 2-Way Wall Mounted PoE Powered Dante Speaker from HDTV Supply today?
Kramer WM-8D/60-000139 8 Inch 2-Way Wall Mounted PoE Powered Dante Speaker Specifications:
- DESCRIPTION
- Premium 8” two–way wall mounted PoE powered Dante speaker
- Available in black & white colors
- Audio
- LF Driver: 200 mm (8 in) with polypropylene cone and rubber surround
- HF Driver: 25 mm (1 in) liquid cooled soft–dome tweeter
- Frequency Characteristics
- Frequency Range (-10dB): 60Hz–20kHz
- Frequency Response (±3dB): 79Hz–20kHz
- Dispersion Angle: 124deg. (1 kHz to 4 kHz)
- Power Handling
- PoE++: 10W continuous / 30W peak
- PoE+: 10W continuous / 20W peak
- PoE: 10W continuous / 10W peak
- Sound Pressure Level (SPL)
- Sensitivity (1W@1m, free field): 90dB SPL
- PoE++: Continuous: 100dB / Peak: 105dB
- PoE+: Continuous: 100dB / Peak: 103dB
- PoE: Continuous: 100dB / Peak: 100dB
- Mechanical
- Installation Type: Surface mounted vertical, horizontal or in corners
- Mounting: EasyMount bracket included, standard 75mm VESA mount threads
- Connectors: RJ–45, factory reset button
- Dimensions
- Without Bracket: 250mm x 222mm x 390mm / 98.5" x 87.4" x 153.6"
- With Bracket: 250mm x 306mm x 390mm / 98.5" x 120.5" x 153.6"
- Shipping (Single Unit): 422mm x 332mm x 480mm / 16.6" x 13.1" x 18.9"
- Shipping (2 Units Master Box): 670mm x 430mm x 498mm / 26.4" x 17.0" x 19.6"
- Weight
- Single Speaker (Including Bracket): 4.4kg (9.7lbs)
- Shipping Weight (Single Unit): 6.3Kg / 13.9lbs
- Shipping Weight (Master Box): 15Kg / 33lbs
- Material
- Grill: Powder Coated Steel, removable logo
- Baffle & Back Enclosure: V–0 Flame Retardant
- Bracket: Aluminum
- Environmental
- Operating Temperature: –5° to +50°C (23°F to 122°F.)
- Storage Temperature: –10° to +55°C (14°F to 131°F.)
- Humidity: 30% to 85%, RHL non–condensing
- Regulatory
- Safety: UL1480A Compliant
- IEC 62368 (CB) / CE LVD
- UL 62368-1
- BIS (India)
- RCM
- EMI: FCC / IC
- Environmental: RoHS, REACH, WEEE
