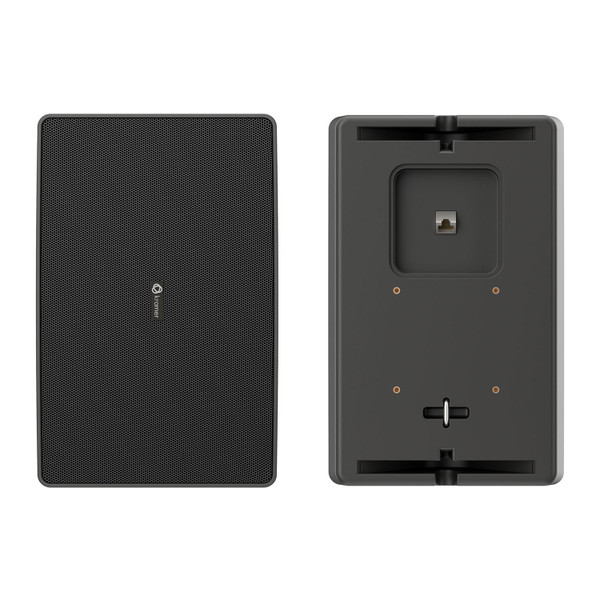

This Kramer WM−6D 6.5” Wall−Mounted PoE−Powered Dante Speaker is a premium 6.5” wall−mounted PoE−powered Dante speaker, purpose−built for commercial indoor installations where high−quality audio and elegant design are essential. Featuring a built−in amplifier, DSP, and mixer, the WM−6D supports two−channel mixing and advanced sound tuning capabilities, including parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “find me” tone – applicable via Kramer’s intuitive Speaker Utility software.
Designed with the system integrator in mind, the WM−6D includes Kramer’s EasyMount bracket for flexible wall installation in vertical, horizontal, or corner orientations, and features standard 75mm VESA mount threads for additional mounting options. Available in black or white, the WM−6D blends seamlessly into any professional indoor environment and is fully controllable via Kramer Control or third−party automation systems through its robust control API.
Kramer WM−6D 6.5” Wall−Mounted PoE−Powered Dante Speaker Features:
- Exceptional sound performance
- Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
- Supports PoE++/PoE+/PoE (auto–negotiate)
- Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
- Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
- Power handling: 10W continuous / 30W peak
- Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL - Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
FCC/IC, BIS, RCM
RoHS, REACH, WEEE - Industrial design: — EasyMount bracket for flexible wall installation in vertical, horizontal, or corner orientations, and features standard 75mm VESA mount threads for expanded mounting options, available in black & white colors, removable logo
- Eco–friendly mono–material packaging
- The WM–6D wall–mounted Speaker is a high–end solution for indoor applications delivering high–performance high–quality sound in professional Dante networked audio installations.
- Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
L–shaped Allen key (M6)
Quick Start Guide
Why not buy this Kramer WM−6D 6.5” Wall−Mounted PoE−Powered Dante Speaker from HDTV Supply today?
Kramer WM−6D 6.5” Wall−Mounted PoE−Powered Dante Speaker Specifications:
- DESCRIPTION
- Premium 6.5” two–way wall mounted PoE powered Dante speaker. Available in black & white colors
- Audio
- Driver: LF Driver: 165 mm (6.5”) driver with polypropylene cone and rubber surround
- HF Driver: 25mm (1") soft dome with dampening, ferrofluid — cooled
- Frequency characteristics
- Frequency Range (-10dB): 60Hz–20kHz
- Frequency Response (±3dB): 84Hz–20kHz
- Dispersion angle: 126deg. (1 kHz to 4 kHz)
- Power handling
- PoE++: 10W continuous / 30W peak
- PoE+: 10W continuous / 20W peak
- PoE: 10W continuous / 10W peak
- Sound Pressure Level (SPL)
- Sensitivity (1W@1m, free field): 90dB SPL
- PoE++ : Continuous: 100dB / Peak: 105dB
- PoE+ : Continuous: 100dB / Peak: 103dB
- PoE : Continuous: 100dB / Peak: 100dB
- Mechanical
- Installation Type: Surface mounted vertical, horizontal or in corners
- Mounting: EasyMount bracket included, standard 75mm VESA mount threads
- Connectors: RJ–45, factory reset button
- Dimensions
- Dimensions without Bracket: 200mm x 182mm x 310mm / 7.17” x 6.63” / 12.2”
- Dimensions with Bracket: 200mm x 246mm x 310mm / 7.17” x 9.67” / 12.2”
- Shipping dimensions (single unit): 342mm x 292mm x 400mm / 13.5" x 11.5" x 15.8"
- Shipping dimensions (2 units in a Master box): 592mm x 352mm x 418mm / 23.3" x 13.9" x 16.5"
- Weight
- Weight per single speaker (including mounting bracket): 2.9kg (6.3lbs)
- Shipping weight (single unit): 4.2Kg / 2.2lbs
- Shipping weight (Master box): 9.1Kg / 20.1lbs
- Material
- Grill: Powder Coated Steel, removable logo
- Baffle & back enclosure: V–0 Flame Retardant
- Bracket: Aluminum
- Environmental
- Operating Temperature: –5° to +50°C (23°F to 122°F.)
- Storage Temperature: –10° to +55°C (14°F to 131°F.)
- Humidity: 30% to 85%, RHL non–condensing
- Regulatory
- Safety: UL1480A Compliant, IEC 62368 (CB) / CE LVD, UL 62368-1, BIS (India), RCM
- EMI: FCC / IC
- Environmental: RoHS, REACH, WEEE
- Accessories
- In the Box: 1 speaker (single unit), 2 speakers are packed in a single master box
- In the Box: 1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
- In the Box: L–shaped Allen key (M6)
- In the Box: Quick Start Guide
