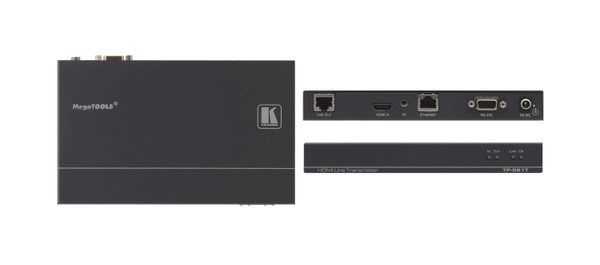

Kramer TP-581T HDMI HDBaseT Transmitter

The Kramer TP-581T extends HDMI, bidirectional RS232, Ethernet and IR over a compatible HDBaseT link. It is the transmitter end of a wired extension system.

TP-581T Detailed Features

• Send HDMI over a long wired extension link. The transmitter converts an HDMI input to HDBaseT for a compatible receiver. It is useful when a source must be located well away from its display.
• Extend Full HD over recommended cabling. The manufacturer specifies up to 130m at 1080p60 with 36-bit color using Kramer HDBaseT cable. Actual system design must account for the receiver, signal format, and cable installation.
• Carry control alongside the video. Bidirectional RS-232 and IR extension allow compatible source or display control signals to travel with the AV link. This can reduce the number of separate control runs.
• Extend an Ethernet connection. A 10/100 Ethernet interface supports a network connection across the HDBaseT path. Its published extended data rate is up to 100Mbps, which should be considered when selecting network applications.
• Integrate compatible protected HDMI sources. The specifications list HDCP 2.2 signal compliance and a 6.75Gbps video bandwidth. Match source and display modes to this transmitter's Full HD capability.
• Install as one end of a complete system. The HDBaseT RJ45 connection is the extension link, not an ordinary switched-network video output. Select a compatible receiver and suitable twisted-pair cabling separately.
• Use the supplied installation accessories. A 5V power supply and bracket kit are listed with the transmitter. Its convection-cooled enclosure needs a mounting position that leaves ventilation available.
