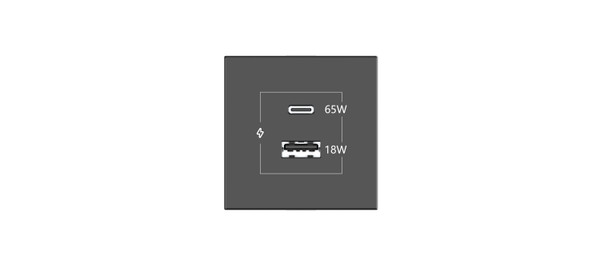

The Kramer MC-C65W/A18W provides built-in USB charging in a compatible Kramer TBUS enclosure. The USB-C port supplies up to 65W and the USB-A port up to 18W, for 83W combined output.
MC-C65W/A18W Detailed Features
- Build USB charging into the table. The module fits a compatible Kramer TBUS enclosure, placing charging connections at the work surface. This helps users power portable devices without reaching for a floor-level outlet.
- Provide both USB-C and USB-A charging. A USB-C port and a USB-A port accommodate devices with different charging connections. Users can connect suitable charging cables for their equipment at the table.
- Supply up to 65W through USB-C. The USB-C output supports charging up to 65W for compatible equipment. Actual charging power depends on the connected device and the rating of its cable.
- Add up to 18W USB-A charging. The USB-A output supplies up to 18W, giving the module a stated combined output of 83W. It can accommodate a suitable accessory or phone alongside a USB-C device.
- Reduce separate chargers at the workspace. An integrated charging point can reduce loose power adapters around a meeting table or desk. Users still need suitable device cables and compatible charging equipment.
- Choose the black module finish. This part is supplied in black. Check the TBUS enclosure configuration and required installation accessories before ordering the module.
- Use it as a charging module. The listed function is USB power delivery. Do not assume these charging ports provide video, USB data switching, or conferencing-device connectivity.
Specifications
| Manufacturer part number | 80-000342 |
|---|---|
| Ports | 1 USB-C and 1 USB-A |
| Single-port output | USB-C: 65W; USB-A: 18W |
| Simultaneous output | 65W + 18W; 83W total |
| AC input | 100–240V AC, 50/60Hz, 1.8A |
| Enclosure compatibility | Kramer TBUS enclosures |
| Dimensions | 50 x 50 x 130mm (2 x 2 x 5.12 inches) |
| Product weight | 0.3kg (0.66lb) |
| Color | Black (RAL 9011) |
| USB-A charging standard | Quick Charge 3.0 |
Technical Questions and Answers
What does the MC-C65W/A18W do?
The Kramer MC-C65W/A18W provides built-in USB charging in a compatible Kramer TBUS enclosure. The USB-C port supplies up to 65W and the USB-A port up to 18W, for 83W combined output.
What is specified for ports?
1 USB-C and 1 USB-A
What is specified for single-port output?
USB-C: 65W; USB-A: 18W
What is specified for simultaneous output?
65W + 18W; 83W total
What are the ac input requirements?
100–240V AC, 50/60Hz, 1.8A
What is specified for enclosure compatibility?
Kramer TBUS enclosures
What is specified for dimensions?
50 x 50 x 130mm (2 x 2 x 5.12 inches)
What is specified for color?
Black (RAL 9011)
Choosing the Right Product
What is the Kramer MC-C65W/A18W used for?
It is used for conference tables with integrated USB charging. Provides built-in USB charging in a compatible Kramer TBUS enclosure. The USB-C port supplies up to 65W and the USB-A port up to 18W, for 83W combined output.
Who should choose the MC-C65W/A18W?
Choose this model when your project needs conference tables with integrated USB charging. Compare the model-specific connections and specifications above with the equipment in your system.
What should I check before ordering the MC-C65W/A18W?
Confirm manufacturer part 80-000342, the black finish, the required connections and the installation requirements. Use the linked documentation to check compatible equipment and required accessories.
