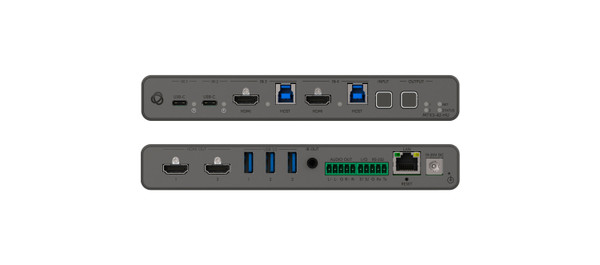

The Kramer MTX3-42-HU switches two USB-C and two HDMI sources to two HDMI displays, with USB peripheral routing for a shared meeting-room setup.
MTX3-42-HU Detailed Features
- Connect several meeting-room sources. Two USB-C and two HDMI inputs feed a system with two HDMI display outputs. Participants can connect different device types while sharing the room's display and USB equipment.
- Switch presentation and USB connections together. Coupled AV and USB-host switching lets a selected computer use the room peripherals as it presents. This is useful when the meeting host changes between participants during a hybrid session.
- Support compatible USB-C laptops. DP Alt Mode USB-C connectivity carries presentation video alongside supported data functions. The unit supports charging up to 100W; the manufacturer describes the full connection arrangement using two USB-C cables.
- Share higher-bandwidth USB devices. USB 3.2 switching supports suitable cameras, audio devices, keyboards, and mice. Match each peripheral's bandwidth and connection requirements to the system before selecting cables and hosts.
- Send sound to a separate audio system. HDMI audio can be de-embedded to a balanced analog stereo output. This allows the room DSP or speakers to reproduce presentation audio alongside the video display.
- Simplify source selection. Configurable automatic switching can select a newly connected source. Manual controls remain available for rooms where presenters need to choose an input explicitly.
- Control presentation displays. CEC and serial control support automatic or manual display power operation. This can reduce the number of separate actions needed when starting or finishing a meeting.
- Integrate additional room devices. The control gateway supports CEC, RS-232, IR, and I/O functions for compatible equipment. IP control, browser setup, front-panel buttons, and contact closures provide several operating methods.
- Install in a compact equipment location. The fanless enclosure supports surface or dropped-ceiling mounting, with rack mounting available using the recommended adapter. Network authentication and remote management support managed installations.
Specifications
| Manufacturer part number | 20-80611090 |
|---|---|
| Inputs — 2 DP Alt Mode & PD 3.0 USB-C | On a USB type–C female connector |
| Inputs — 2 HDMI | On an HDMI female connector |
| Outputs — 2 HDMI | On an HDMI female connector |
| Outputs — 1 Balanced Stereo Audio Line | On 5–pin terminal block connector |
| Outputs — 1 IR | On a 3.5mm mini jack for IR extension |
| Ports — 2 USB 3.2 Host | On a USB–C female connector |
| Ports — 2 USB 3.2 Host | On a USB–B female connector |
| Ports — 3 USB 3.2 Device | On USB type–A female connectors |
| Ports — 1 Ethernet | On an RJ–45 female connector for LAN connection |
| Ports — 1 RS–232 | On a 3–pin terminal block |
| Ports — 2 GPIO | On a 2–pin terminal block |
| Video — Max Data Rate | 18Gbps bandwidth (6Gbps per graphic channel) |
| Video — Max Resolution | 4K@60Hz (4:4:4) resolution |
| Video — Content Protection | HDCP 2.3 |
| Video — HDMI Support | Deep Color, 3D, HDR as specified in HDMI 2.0b |
| USB Features — USB 3.2 Data Rate | Up to 10Gbps |
| USB Features — Integrated USB Hubs | 1 |
| USB Features — Standards Compliance | USB 3.2 GEN 2, 2.0 and 1.1 |
| Analog Audio — Max Output Signal Level | 14.5dBu |
| Analog Audio — Impedance | 500Ω |
| Analog Audio — Bandwidth | 20Hz — 20kHz |
| Analog Audio — Crosstalk | –114dB |
| Analog Audio — THD + N | 0.005% @1kHz at nominal level |
| Analog Audio — S/N Ratio | 85dB, 20Hz — 20kHz |
| Analog Audio — Coupling | DC |
| Power — Power Adapter (included): Source | 20V DC, 12A |
| Power — Max. Power: No external power delivery | 5.8W |
| Power — Maximum deliverable power to external devices | 178W |
| Power — Max. Heat Dissipation With no external power delivery | 19BTU/hr (5.5W) |
| Power — With maximum external power delivery | 47BTU/hr (14W) |
| Power — USB Device Charging USB-C port 1 | 100W |
| Power — USB-C port 2 | 60W |
| Environmental Conditions — Operating Temperature | 0° to +40°C (32° to 104°F) |
| Environmental Conditions — Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Environmental Conditions — Humidity | 10% to 90%, RHL non–condensing |
| Regulatory Compliance (Standards Compliance) — Safety | CE, UL |
| Regulatory Compliance (Standards Compliance) — Environmental | RoHs, WEEE |
| Enclosure — Size | Mega Tool |
| Enclosure — Type | Aluminum |
| Enclosure — Cooling | Convection, fan–less ventilation |
| General — Net Dimensions (W, D, H) | 19cm x 11.60cm x 2.7cm |
| General — Net Dimensions (W, D, H) | (7.48" x 4.57" x 1.06") |
| General — Shipping Dimensions (W, D, H) | 35.1cm x 21.2cm x 7.2cm |
| General — Shipping Dimensions (W, D, H) | (13.8" x 8.34" x 2.83") |
| General — Net Weight | 0.892kg (1.96bs) approx. |
| General — Shipping Weight | 1.446kg (3.18lbs) approx. |
| Accessories — included | Power Cord |
| Product Dimensions — PRODUCT DIMENSION | 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H |
| Product Weight | 0.5kg (1.1lbs) approx. |
| Shipping Dimensions — SHIPPING DIMENSION | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H |
| Shipping Weight | 1.5kg (3.2lbs) approx. |
