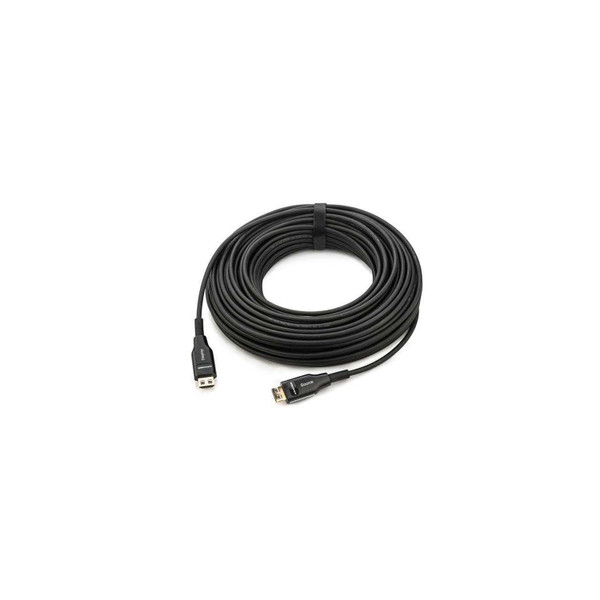

This Kramer CP-AOCH/60F-262 262ft Fiber Optic Plenum - High speed HDMI cable is an innovative active optical HDMI cable for 4K signals up to 90 meters (262ft). CP−AOCH/60F cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CP−AOCH/60F cables are an ideal solution for maximizing signal integrity in critical AV installations.
Kramer CP-AOCH/60F-262 262ft Fiber Optic Plenum - High speed HDMI cable Features:
- Video Resolution — Up to 4K@60Hz (4:4:4).
- High Data Transfer Rate — Up to 18Gbps.
- Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio.
- HDMI Support — HDCP 2.2/1.4, HDR, EDID, ARC and CEC.
- High–Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
- Reduced EMI & RFI.
- Thin Construction — 4.5mm diameter.
- Jacket Construction — Plenum rated.
- RoHS 2011/65/EU CE,FCC Compliant
Why not buy this Kramer CP-AOCH/60F-262 262ft Fiber Optic Plenum - High speed HDMI cable today?
Kramer CP-AOCH/60F-262 262ft Fiber Optic Plenum - High speed HDMI cable Specifications:
VIDEO
- Max Resolution: 4K@60Hz
- Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
- HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC
AUDIO
- Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
- HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
- HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
GENERAL
- Cable Type: Hybrid with OM3 fiber and copper wire
- O/E Converter: 4 channel 850 nm VCSEL array
- Material: Bare Copper
MECHANICAL
- Cable Bending Radius: 20mm
JACKET
- Color: Black
- Diameter : 4.5mm
POWER
- Consumption: 250mW (max)
ENVIRONMENTAL CONDITIONS
- Operating Temperature: 50°C
- Storage Temperature: –40–70°C
STANDARDS COMPLIANCE - EC VERIFIED
- Safety: CE/FCC
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Environmental: REACH,RoHS 2011/65/ EU
Why not buy this Kramer CP-AOCH/60F-262 262ft Fiber Optic Plenum - High speed HDMI cable today?
Kramer CP-AOCH/60F-262 Data Sheet
