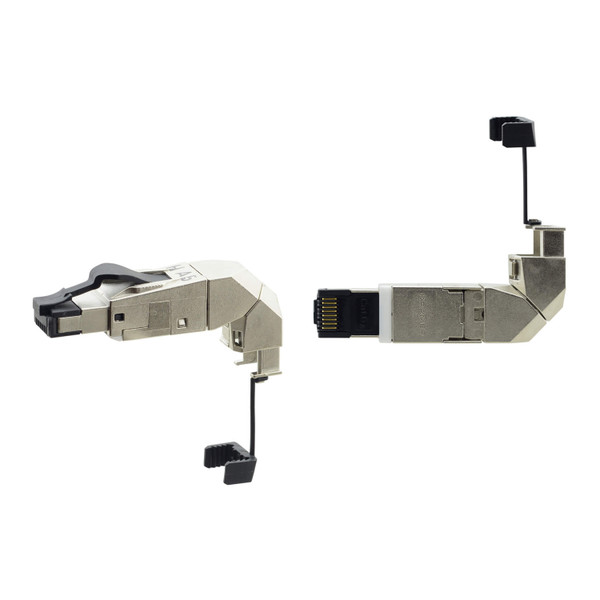

This Kramer CON-FIELD-360/99-921036001 Field Assembly Shielded RJ-45 Connectors for CAT Cable are high−bandwidth, shielded RJ−45 connectors used for terminating Kramer LAN cables. This connector requires no crimping tool to install, and provides fast and reliable termination of shielded twisted−pair cables in the field. The connector is suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE) and HDBaseT.
Kramer CON-FIELD-360/99-921036001 Field Assembly Shielded RJ-45 Connectors for CAT Cable Features:
- CON–FIELD — Fixed connector
- CON–FIELD–360 — With variable cable entry, 8 positions possible.
- Robust Zinc Die–cast Housing — For industrial use and a protected latch.
- Compact Design — Makes the connector multiport–capable while being fully shielded.
- Easy Assembly — Strain relief snapped on directly to stuffer cap and protected catch, no crimping tool needed.
- Reconnectable for Reuse.
- Transmission Characteristics — CAT 6A per ISO/IEC 11801 Ed.2.2:2011–06.
- Wide Uses — Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT.
- Availability — Both connectors sold in packages of 10
Why not buy this Kramer CON-FIELD-360/99-921036001 Field Assembly Shielded RJ-45 Connectors for CAT Cable from HDTV Supply today?
Kramer CON-FIELD-360/99-921036001 Field Assembly Shielded RJ-45 Connectors for CAT Cable Specification:
- OVERALL
- DESIGN: Plug
- SHIELDING: Shielded
- TRANSMISSION TECHNOLOGY: Copper
- COLOR: Black
- MULTI-PORT CAPABILITY: Yes
- CABLE ACCESS / OUTLET: CON–FIELD–360: Variable, 8 positions, CON–FIELD: 180°
- REGULATORY PERFORMANCE
- CATEGORY (ISO): 6A
- CATEGORY (TIA): 6A
- CLASS (ISO/IEC): EA
- REMOTE POWERING: Yes
- POE / POE PLUS: IEEE 802.3af / IEEE 802.3at
- UPOE: Yes
- HDBASET: Yes
- TRANSMISSION RATE UP TO 10GBIT: IEEE 802.3an
- CONSTRUCTION
- HOUSING: GD–Zn (Zinc die–cast)
- CONTACTS: CuSn (tinned bronze)
- CONTACT FINISH: Ni + Au (nickel–gold)
- LATCH: Plastic
- REGULATORY
- GENERAL REQUIREMENTS: ISO/IEC 11801 Ed. 2.2:2011–06
- GENERAL REQUIREMENTS: DIN EN 50173–1:2011–09
- GENERAL REQUIREMENTS: TIA/EIA 568–C
- OFFICE BUILDINGS: ISO/IEC 11801 Ed. 2.2:2011–06
- OFFICE BUILDINGS: DIN EN 50173–2:2011–09
- OFFICE BUILDINGS: TIA/EIA 568–C
- INDUSTRIAL AREAS: ISO/IEC 24702
- INDUSTRIAL AREAS: DIN EN 50173–3:2011–09
- INDUSTRIAL AREAS: TIA/EIA 1005
- RESIDENTIAL AREAS: ISO/IEC 15018
- RESIDENTIAL AREAS: DIN EN 50173–4:2011–09
- RESIDENTIAL AREAS: TIA/EIA 570–B
- CE: Compliant
- ROHS: Compliant
- DIAMETERS
- TERMINATION, SOLID WIRE – CONDUCTOR CROSS SECTION AWG: AWG 26/1–22/1
- TERMINATION, SOLID WIRE – CONDUCTOR CROSS SECTION: 0.128–0.324 mm²
- TERMINATION, SOLID WIRE – CONDUCTOR DIAMETER: 0.409–0.643 mm (0.016–0.025")
- TERMINATION, STRANDED WIRE – CONDUCTOR CROSS SECTION AWG: AWG 27/7–22/7
- TERMINATION, STRANDED WIRE – CONDUCTOR CROSS SECTION: 0.111–0.355 mm²
- TERMINATION, STRANDED WIRE – CONDUCTOR DIAMETER: 0.457–0.762 mm (0.018–0.030")
- CABLE SHEATH DIAMETER: 5.5–10.5 mm (0.217–0.413")
- ELECTRICAL
- CURRENT: 1A (max)
- RATED VOLTAGE: 50V (max)
- CONTACT RESISTANCE: 20 mΩ (max)
- INSULATION RESISTANCE: 500 MΩ (min)
- DIELECTRIC STRENGTH: CONDUCTOR–SHIELD: 1500V DC
- USAGE AND ENVIRONMENTAL
- INSERTION AND WITHDRAWAL FORCE: 20N max
- LIFE – NUMBER OF MATING CYCLES: 750 min
- STRAIN RELIEF: Latching clip
- STORAGE TEMPERATURE: –40 to 70°C (–40 to 158°F)
- OPERATING TEMPERATURE: –40 to 70°C (–40 to 158°F)
Why not buy this Kramer CON-FIELD-360/99-921036001 Field Assembly Shielded RJ-45 Connectors for CAT Cable from HDTV Supply today?
Kramer CON-FIELD-360/99-921036001 Datasheet
