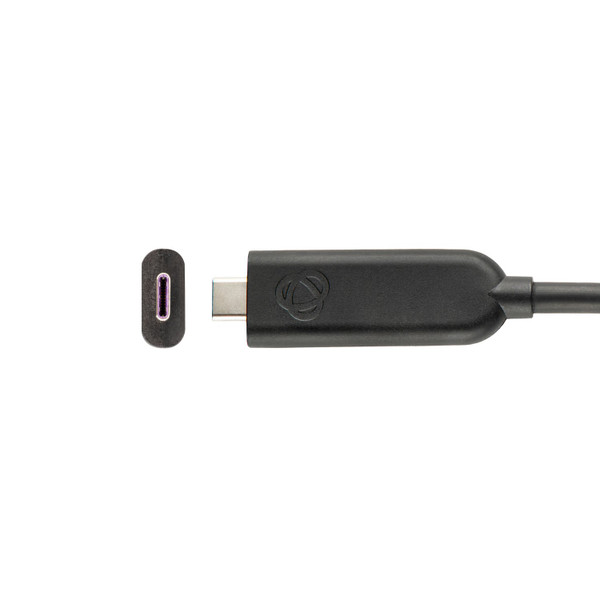

This Kramer CLS-AOCU32/FF-50 50ft USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ Active AOC Hybrid cable offering a whole new level of reliable connectivity thanks to kramer's unique K−lock. Transfers Video 4K@60, data at incredible speeds (10G) in parallel to USB 2.0, supports 100W charging power − all with just one Active AOC Hybrid cable.
CLS−AOCU32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any orientation, thus eliminating the frustration of getting the port insertion just right.
Kramer CLS-AOCU32/FF-50 50ft USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable Features:
- 4K@60 Video
- Reversible USB Type–C Connector — With integrated locking mechanism.
- Transfer Rates — Up to 10Gbps.
- Current Rating — 100W power (5A, 20V).
- Compatibility — PC, Mac & Mobile.
- Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
- USB Backward Compatibility — 1.0, 1.1, 2.0, and 3.0.
- RoHS REACH Compliant
Why not buy this Kramer CLS-AOCU32/FF-50 50ft USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable from HDTV Supply today?
Kramer CLS-AOCU32/FF-50 50ft USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable Specification:
- USB Features
- Type: USB 3.2 GEN–2
- Video: 4K@60 4:4:4 (DP Alt Mode)
- Data: 10Gbps (USB 3.2 Gen 2) & USB 2.0
- Power Charging: 20V, 5A (100W)
- ETH Support: 10/100/1000 Mbps
- Physical
- Connector A: USB Type–C Male, Nickel-plated K–Lock connector with gold pins
- Connector A Dimensions (L x W x H): 39.5 x 18 x 9mm (1.6" x 0.71" x 0.356")
- Note: For limited space, use adapter model PG–U32/FF (Part number: 96–0235100)
- Connector B: USB Type–C Male, Nickel-plated K–Lock connector with gold pins
- Jacket
- Material: PVC, LSHF
- Color: Black
- Diameter: 5.8mm ±0.2mm (0.23" ±0.008")
- Bending Radius: 36mm (1.42")
- Electrical
- Temperature Rating: 80°C (176°F)
- Voltage Rating: 30V
- Conductor Resistance – 28AWG: 237?/km MAX at 20°C (68°F)
- Conductor Resistance – 20AWG: 38?/km MAX at 20°C (68°F)
- Standards Compliance
- Safety: CE, FCC
- Flammability Rating: CPR Dca
Why not buy this Kramer CLS-AOCU32/FF-50 50ft USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable from HDTV Supply today?
Kramer CLS-AOCU32/FF-50 Datasheet
