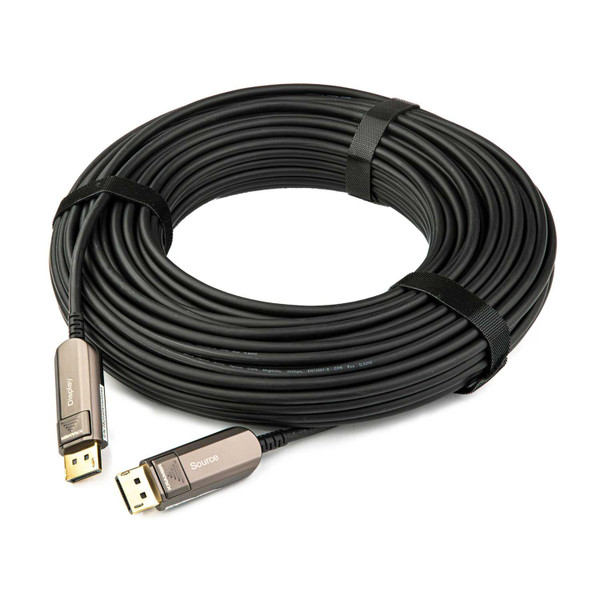

This Kramer CLS-AOCDP/UF-230 70m/230ft 8K@60Hz Active Optical DisplayPort Cable is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS−AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator−oriented features and the latest advances in DisplayPort1.4 technology.
Kramer CLS-AOCDP/UF-230 70m/230ft 8K@60Hz Active Optical DisplayPort Cable Features:
- Latest DisplayPort Technology — Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.
- Streamlines Installations — Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
- High Data Transfer Rate — Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- No External Power Needed — Powers the active units via the DisplayPort connector.
- Thin Construction — 4.8mm diameter.
- Safe Construction — Low smoke & halogen free.
- Compliance — RoHS 2011/65/EU compliant, CE/FCC
Why not buy this Kramer CLS-AOCDP/UF-230 70m/230ft 8K@60Hz Active Optical DisplayPort Cable from HDTV Supply today?
Kramer CLS-AOCDP/UF-230 70m/230ft 8K@60Hz Active Optical DisplayPort Cable Specification:
- Video
- Max. Resolution: 8K @ 60Hz (7680 × 4320)
- Max. Data Rate: 32.4 Gbps (HBR3)
- Max. Color Depth: 48-bit
- DisplayPort Support: HDCP 2.2, EDID, DPCP
- Audio
- Channels: Up to 8 channels, 16-bit or 24-bit linear PCM
- Sampling Rate: 32 kHz to 192 kHz
- Construction
- Connectors: Male DisplayPort, gold-plated
- Cable Structure: Hybrid optical fiber cable
- Fiber Optic: 4 × 850nm multi-mode fiber
- Fiber Cable Type: Hybrid cable (4 × fiber + 8 × copper wires)
- Conductors: 2p × 26AWG + 4c × 28AWG + 2c × 24AWG
- Jacket
- Outer Sheath Material: LSHF
- Outer Sheath Color: PVC Black
- Outer Sheath Diameter: 4.8mm
- Physical
- Minimum Cable Bending Radius: 48mm
- Connector Max. Pulling Strength: 25.173kg
- Max. Compression Load Resistance: 300N
- Environmental Conditions
- Operating Temperature: 0°C to +50°C
- Storage Temperature: –20°C to +85°C
- Operating Humidity: 5% to 85%
- Power
- Consumption: < 0.5W per end
- Regulatory Compliance
- LSHF: EN 60332-1-2, EN 50399
- RoHS: 2011/65/EU
- Certified: CE, FCC
