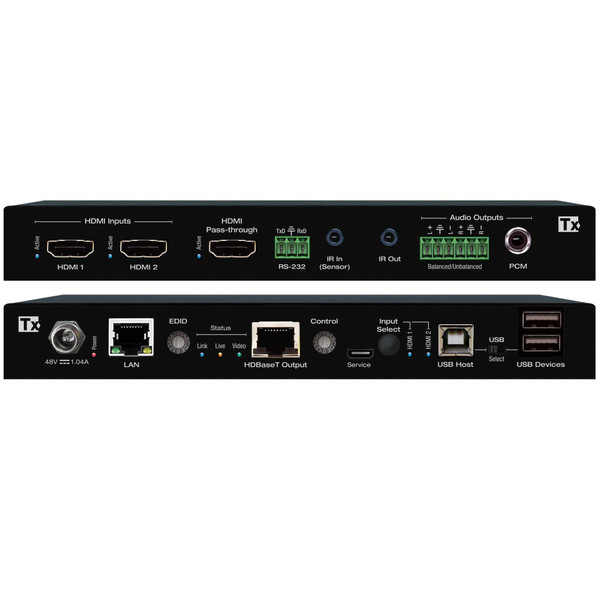

Key Digital KD-XPS22U 4K 18G Smart Extender Kit with HDMI

Key Digital

Key Digital KD-XPS22U 4K 18G Smart Extender Kit with HDMI
$1,150.00

10% Discount. Apply Code 10percentOff at Checkout!

Part Number:
KD-XPS22U
UPC:
815996021546
Availability:
In Stock
1:
Unit Control Mode
2:
Signal Extension
3:
Visually Lossless Compression
4:
Audio De-embedding
5:
Dual LAN Ports
10:
Free USA Shipping
11:
3-Year Key Digital Warranty
6:
Ships with the Latest Firmware
7:
Save 5% w/Check or Wire Transfer
8:
International Shipping - Call
ADD OPTIONS:

This Key Digital KD-XPS22U 4K 18G Smart Extender Kit with HDMI utilizes HDBaseT technology to extend HDMI, IR, RS-232 control, TCP/IP, and USB 2.0 over a single CAT6.

A built-in 2x1 HDMI switcher on the Tx unit makes selection of HDMI sources in Conference Rooms, Lecture Halls, Entertainment or Gaming spaces possible without additional hardware.

The transmit unit also features a local pass-through output for an additional display on confidence monitors or output to AVRs.

USB 2.0 connectivity may be used to enable soft codec conferencing systems.

Connect Key Digital’s KD-CAMUSB or other USB camera and a USB mic + speaker conferencing combo into the USB Device ports on the Rx unit so users may bring their own device and bring their own meeting, using the professional video and audio equipment within the conferencing software of their choosing by simply connecting their laptop to the USB host port on the Tx unit.

READ MORE

Key Digital KD-XPS22U 4K 18G Smart Extender Kit with HDMI Features:

  • Signal Extension: 4K/UHD (18G): Up to 100m / 328ft • 1080p: Up to 150m / 492ft
  • UHD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate HDBaseT transmission channel
  • 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
  • Mirrored Outputs: 2 HDMI and HDBaseT Outputs
  • Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • Power Over HDBaseT: Tx can be powered by Rx unit
  • CEC Manager™: Software API includes commands for controlling power, volume, and mute of connected CEC supporting display / projector
  • Audio De-embedding: Audio of the selected HDMI input or returned audio signal is output at the digital coaxial PCM and analog 3.5mm stereo connectors.
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10: More life-like images through a greater range of luminance levels
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • IR Bi-Directional control: Tx supports IR input via the included IR sensor and output via the included IR emitter
  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
  • Unit Control Mode: Provides TCP/IP control and status of/from Tx unit
  • Soft-Codec & KVM Enabling System: USB Host + Device ports on Tx and Rx create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
  • ARC: Audio may be returned from the connected display or Rx unit and output on the external analog & digital outputs
  • Surround Sound Audio: Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ multi-channel audio formats
  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
  • Control System Support: Key Digital® App Ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Why not buy this Key Digital KD-XPS22U 4K 18G Smart Extender Kit with HDMI today?

Key Digital KD-XPS22U 4K 18G Smart Extender Kit with HDMI Specifications:

  • Regulation: CE, RoHS, WEEE, EAC;
  • Enclosure: Black Metal
  • KD-PS22UTx - Unit: 5.5 x 4.1 x 1.43” (200.3 x 153 x 25.4mm), Weight: 1 lbs
  • KD-X100MRx - Unit: 7.16 x 4.8 x 0.87” (182 x 122.5 x 22.2mm); Weight: 1 lbs
