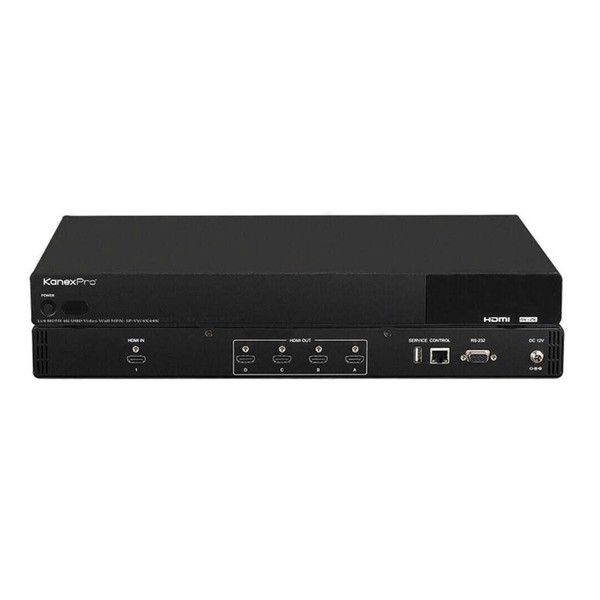

KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor

KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor
KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor
KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor - Extra Image 1KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor - Extra Image 2KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor - Extra Image 3
KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor
KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor
KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor

Create Video Walls from 2x2, 2x3 & 3x3 screens up to 9-Displays

Supports 4K x 2K@24/25/30Hz

Control via RS-232 & Telnet (Ethernet)

One locking power supply included

Free Shipping & Free 3-Year KanexPro Warranty

Part # VW-SP1X44K
Usually ships the same business day
Today's Price: $2,999.95
Ask Our WolfPack Experts

Features

KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction

KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction is a 4K based video processor which allows one HDMI input to be freely arranged on to four 4K displays. It offers bezel correction support with a simple and easy to use control application. The device supports video output timings up to WUXGA@60 and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID.

KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction Features:

  • 1x4 Video Processor with Built-in Bezel Correction and Control
  • Can be cascaded to create up to 3x3 Video Wall (9- displays)
  • Can also be used as a 1x4 DA (splitter)
  • Supports 4K x 2K@24/25/30Hz
  • HDCP compliant
  • Outputs video signal to 4 displays with a full image & adjustable Bezel Correction
  • Input PC resolutions: from VGA~WUXGA & HDTV from 480i~1080p & 4K2K@24/25/30Hz
  • Various Audio Format Support: AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
  • Control via RS-232 & Telnet (Ethernet)
  • One locking power supply included
  • 1U (19") rack mountable enclosure
  • Backed by KanexPro 3-year parts and labor warranty

Why not buy this KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction today?

Specs

KanexPro VW-SP1X44K 1-4 HDMI 4K UHD Video Wall Processor with Bezel Correction Specifications:

  • Video Bandwidth: 300MHz/9Gbps
  • Input Ports: 1-HDMI (Female type), 1-Control (RJ45), 1-RS-232 (D-sub 9-pin), 1-USB (Service only)
  • Output Ports: 4-HDMI (Female type) 10M/8-bit 1080p
  • HDMI Cable Distance:
    • 5 meters for 4Kx2K,
    • 10 meters for /8-bit FullHD 1080p
    • 100-150 meters over CAT5e/6 Exenders can be used to create long distances (optional)
  • Baud Rate: 115200 bps
  • Chassis Material: Metal enclosure
  • Color: Black
  • Operating Temperature: 0 ˚C~40 ˚C / 32 ˚F~ 04 ˚F
  • Storage Temperature: -20 ˚C~60 ˚C / -4 ˚F~140 ˚F
  • Relative Humidity: 20~90 % RH (non-condensing)
  • ESD Protection: Human body model: ± 8 kV (air-gap discharge) ± 4 kV (contact discharge)
  • Power Supply: 12V/3A DC (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 12.98W
  • Weight : 6.51lbs. (2956g)
  • Dimensions: 17.0"(W) - 11.0"(D) x 1.7" (H) - Jacks Excluded, 19.0"(W) - 10.78"(D) x 2.0" (H) - Jacks Included

Why not buy this KanexPro VW-SP1X44K 1-4 HDMI 4K UHD Video Wall Processor with Bezel Correction today?

Software

Accessories

4K HDMI CABLES
4K HDMI CABLES
Reviews

Similar

Make Offer

Videos

Manuals

VW-SP1X44KData Sheet

VW-SP1X44KUser Manual

Why not buy this KanexPro VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction today?

3D

Q/A

Warranty

Warranty HDTV Supply includes a 3 Year Limited Warranty on all Kanex Pro products. The warranty states that (a) its products (the will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 3 years. In order to get a warranty replacement for a defective item, HDTV Supplys and Kanex Pros Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.

HDTV Supply also sells a 5 Year Extended U.S. Warranty for this Long-Runner HDMI 100M Extender. Please go to Extended Warranties or see the above Options to purchase it.
