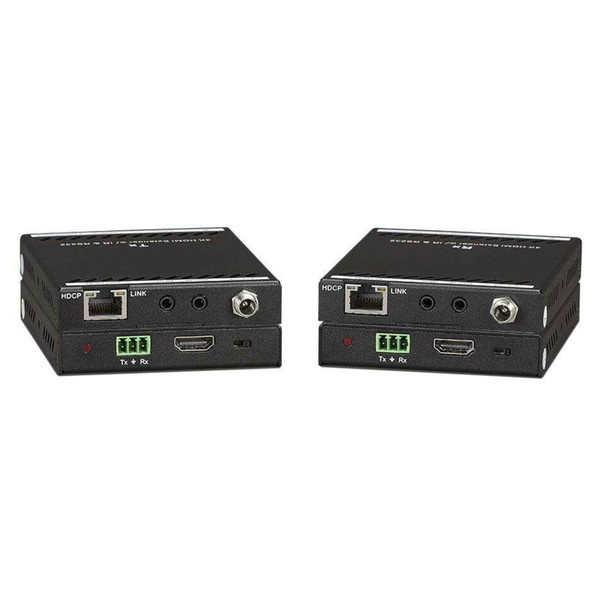

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT
KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT
KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT - Extra Image 1KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT - Extra Image 2KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT - Extra Image 3
KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT
KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT
KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT

Extend pristine 4K/30

Bi-directional PoH, IR & RS-232 up to 40m

Extend full HD 1080p up to 70m

Video resolutions from 1080p/60@48bit

Free Shipping & Free 3-Year KanexPro Warranty

Part # EXT-HDBT70C
Usually ships the same business day
Today's Price: $249.95
Ask Our WolfPack Experts

Features

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoC (power over cable) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT Features:

  • Basic point-to-point HDMI extender over HDBaseT
  • Extend full HD 1080p up to 70m (230ft.)
  • Extend 4K/30 up to 40m (131ft.)
  • Supports Ultra HD 4K@30Hz resolutions &
  • Video resolutions from 1080p/60@48bit
  • Bi-directional PoC (power over cable)
  • HDCP 2.2 & EDID compliant
  • Bandwidth 10.2 Gbps
  • Bi-directional RS-232 & IR control
  • Supports CEC/IR/RS-232 pass-thru
  • IR input/output - embedded over CATx extension
  • Dolby TrueHD & DTS Master Audio ready
  • Supports uncompressed audio - LPCM
  • Includes separate mounting ears
  • One locking power supply included
  • Backed by KanexPro 3-year parts and labor warranty

Why not buy this KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT today?

Specs

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT Specifications:

  • Transmitter:
    • Input Signal: (1) HDMI, (1) IR; (1) RS232
    • Input Connector: (1) HDMI female; (1) 3.5mm mini jack, (1) 3p captive screw connector
    • Output: (1) RJ-45, (1) IR, (1) RS232
    • Output Connector: (1) RJ-45; (1) 3.5mm mini jack, (1) 3-pin captive screw connector
    • Audio: (1) Digital audio,transmit through HDMI audio
  • Receiver
    • Input Signal: (1) IR; (1) RJ-45; (1) RS232
    • Input Connector: (1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw connector
    • Output: (1) HDMI, (1) IR, (1) RS232
    • Output Connector: (1) HDMI female, (1) 3.5mm mini jack, (1) 3-pin captive screw connector
  • General
    • Resolution Range: 640x480@60Hz~4K×2K@30Hz
    • Transmission Mode: HDBaseT
    • Transmission Distance: 1080p ≤ 70m; 4Kx2K ≤ 40m
    • Bandwidth: 10.2Gbps
    • HDMI Standards:
    • Supports HDMI1.4 and HDCP2.2
    • Impedance: 75Ω
    • Temperature: 0~ 50 C
    • Humidity: 10% ~ 90%
    • External Power Supply: Input: 100VAC~240VAC, 50/60Hz, Output: DC 24V, 1.25A
    • Power Consumption: 14w (max)
    • Dimensions (W*H*D): 4.17' x 0.60" x 3.30"
    • Net Weight: 0.55 lbs (250g)
