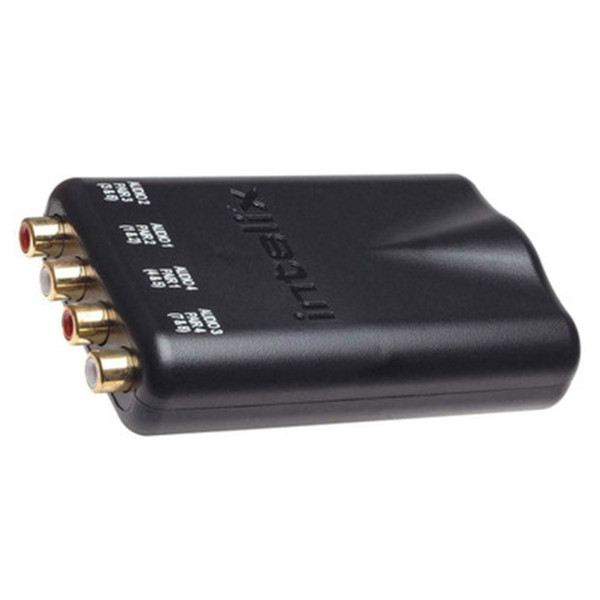

Intelix AVO-A4-F Dual Analog Stereo Audio Balun

Intelix AVO-A4-F Dual Analog Stereo Audio Balun
Intelix AVO-A4-F Dual Analog Stereo Audio Balun
Intelix AVO-A4-F Dual Analog Stereo Audio Balun - Extra Image 1Intelix AVO-A4-F Dual Analog Stereo Audio Balun - Extra Image 2Intelix AVO-A4-F Dual Analog Stereo Audio Balun - Extra Image 3
Intelix AVO-A4-F Dual Analog Stereo Audio Balun
Intelix AVO-A4-F Dual Analog Stereo Audio Balun
Intelix AVO-A4-F Dual Analog Stereo Audio Balun



DUAL ANALOG STEREO AUDIO BALUN

4 RCA female to RJ45 connectivity

High fidelity audio 20 Hz to 20 kHz

Free Shipping & Free 2-Year Intelix Warranty

Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support

Part # AV0-A4-F
Today's Price: $128.32
Out Of Stock
Ask Our WolfPack Experts

Features

Intelix AVO-A4-F Dual Analog Stereo Audio Balun

Intelix AVO-A4-F Dual Analog Stereo Audio Balun transmits four mono or two stereo analog audio signals via standard structured cabling, such as Cat 5e. Used in pairs, the AVO-A4-F transmits analog audio in either direction up to 2,500 feet.

NOTE: This product has been discontinued. See the above SIMILAR Tab for equivalent products or, if not there, call us at 833-WOLFPACK (833-965-3722) right now to discuss your needs.

Intelix AVO-A4-F Dual Analog Stereo Audio Balun Features:

  • 4 RCA female to RJ45 connectivity
  • This is one unit, two units needed to complete the circuit
  • Up to 2,500 feet cable lengths on U/UTP category 5/5e/6
  • High fidelity audio 20 Hz to 20 kHz

Applications:

  • Ideal for corporate facilities, churches, schools, auditoriums and almost any other situation involving audio signal distribution
  • Long distance routing of high quality stereo or mono audio
  • Transmit two stereo, four mono, or one stereo and two mono audio signals in the same or opposite directions

Why not buy this Intelix AVO-A4-F Dual Analog Stereo Audio Balun today?

Specs

Intelix AVO-A4-F Dual Analog Stereo Audio Balun

  • I/O Connections
    • Audio: One (1) RCA per channel
    • Twisted Pair: One (1) 8P8C port (RJ45)
  • Supported Audio
    • Maximum Distance via Cat 5e: 2500 ft.
    • RJ45 Pin Configuration
      • Pins 1 and 2: Audio 1
      • Pins 3 and 6: Audio 2
      • Pins 4 and 5: Audio 4
      • Pins 7 and 8: Audio 3
    • Audio Frequency Response: 20 Hz to 20 kHz
    • Impedance: 600 ohms, unbalanced
    • Audio Transformer Isolation: 500V
    • Nominal Level: 1.0 volts
    • Insertion Loss: 1 dB
    • Common Mode Rejection: Greater than 40 dB
  • Chassis and Environmental
    • Enclosure: Black ABS plastic
    • Dimensions (without connectors): 99 mm x 64 mm x 23 mm (3.9" x 2.5" x 0.9")
    • Dimensions (with connectors): 106 mm x 64 mm x 23 mm (4.2" x 2.5" x 0.9")
    • Shipping Weight: 0.24 kg (0.54 lbs)
    • Operating Temperature (Environment): 0˚ to +40˚C (+32˚ to +104˚F)
    • Operating Humidity (Environment): 20% to 90%, Non-condensing
    • Storage Temperature (Environment): -10˚ to +60˚C (+14˚ to +140˚F)
  • Other
    • Regulatory: RoHS
    • Standard Warranty: 2 Years
    • Included Accessories: Installation Guide
    • Compatible Products: AVO-A4-WP-F, AVO-A4-WP110
    • Mounting Solution: AVO-CLIP-F
