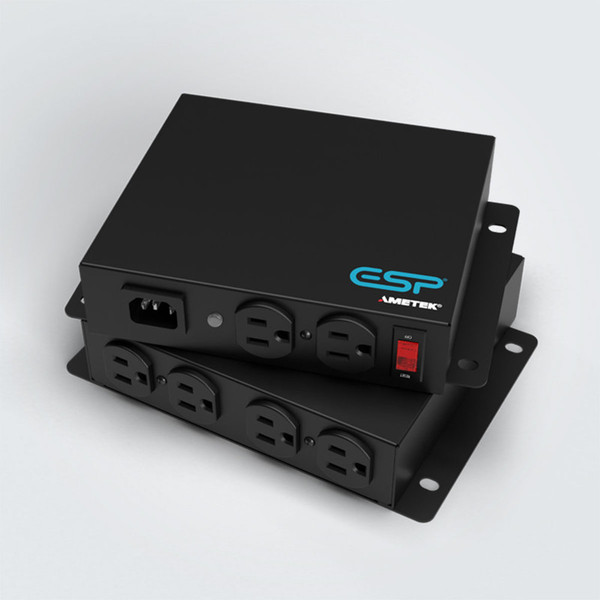

The ESP BasePak ESP-BP-3C-126 supplies six outlets with single-stage surge protection. Its compact enclosure mounts behind displays or under tables where space is limited.
COMPACT POWER DISTRIBUTION: Six NEMA 5-15R outlets share a 12A total load rating.
MOUNTING OPTIONS: Built-in brackets support horizontal or vertical mounting on a wall or table.
SURGE PROTECTION: Single-stage protection includes a surge-status LED.
- Local on/off switch with built-in 15A circuit breaker.
Reasons that set this BasePak 6-Outlet PDU apart from others:
- Power six devices from one compact unit.
- Fit power distribution behind a display.
- Mount beneath a table to conserve workspace.
- Choose horizontal or vertical positioning.
- Secure the enclosure with built-in brackets.
- Check surge status with the LED.
- Use the local on/off switch.
- Connect with the supplied 3-foot cord.
ESP BasePak ESP-BP-3C-126 120V 12A 6-Outlet Surge-Protected PDU with 3-Foot Cord Specifications:
- Model: ESP-BP-3C-126
- Configuration: 120V/12A
- Receptacles: 6 NEMA 5-15R (3 duplex receptacles)
- Input plug: NEMA 5-15P
- Power cord: 3 FT SJT14AWG x 3C
- Frequency: 50/60 Hz
- Published power rating: 1500 W
- Maximum current: 12 A total; 12 A per outlet
- Power control: On/off switch with built-in 15A circuit breaker
- Protection: Single Stage Surge Protection
- Indicator: 1 x LED Surge Protection Status
- Construction: Metal
- Mounting: Horizontal or vertical; built-in mounting brackets
- Use: Indoor only
- Dimensions (manufacturer data sheet): 8.46" (L) x 6.15" (D) x 1.86" (H); length includes mounting brackets
- Certifications (manufacturer data sheet): UL/cUL (UL60950-1)
Why not buy this BasePak 6-Outlet PDU today?
HDTV Supply's ESP BasePak Family of Power Distribution Units can be created however you wish. Just SCROLL DOWN and fill out the below and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at customerservice@hdtvsupply.com
What does the ESP-BP-3C-126 do?
A: It distributes AC power and provides single-stage surge protection through six outlets.
What connections does it use?
A: It has a NEMA 5-15P input plug and six NEMA 5-15R receptacles.
What load can it support?
A: The limit is 12A total, with a 12A maximum per outlet. Connected equipment must stay within both limits.
How is power switched?
A: A local on/off switch controls power and incorporates a 15A circuit breaker.
How do I check the protection indicator?
A: Look for the surge-status LED. If it is off, use the troubleshooting information in the manufacturer manual.
How can I power several devices behind a display?
A: A compact PDU provides multiple outlets in a confined space. BasePak is designed for behind-display installations.
What can I mount under a conference table to organize power?
A: A mountable PDU can consolidate device connections. BasePak provides six outlets and built-in mounting brackets.
How can I add power distribution without using a large enclosure?
A: A compact power distribution unit suits limited-space installations. BasePak supports wall or table mounting.
Can I connect another power strip to make this reach farther?
A: No. The BasePak instructions prohibit connecting it to a relocatable power tap and prohibit extension cords or adapters.
What should I check before connecting several devices to one power unit?
A: Check the combined current and each outlet load. BasePak permits 12A total, so six outlets do not mean six separate 12A supplies.
How can I contact HDTV Supply?
A: For questions about this product, compatibility, installation, or purchasing, please call 833-WolfPack (833-965-3722) or email us at customerservice@hdtvsupply.com.
ESP lists BasePak and vertical PDU products under its Limited Two-Year Product Warranty, subject to the manufacturer terms and exclusions. Connected-equipment protection excludes these PDU products.
