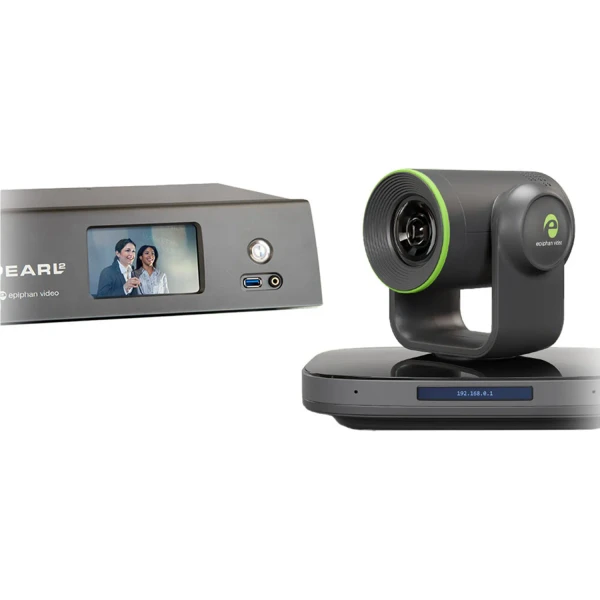

This Epiphan EPI-ESP1909 Production Starter Pearl2 Bundle with EC20 PTZ Camera comprises the Pearl-2 Base Video Mixer and the EC20 PTZ Camera with wall and ceiling mounts.
This single-camera kit is ideal for small event capture or basic corporate studio setups, providing professional streaming and recording in a simple package.
The Pearl-2 Base Video Mixer from Epiphan is a powerful live-production mixer that lets you create visually appealing live video programs by combining, encoding, switching, and recording up to six video sources and two audio sources.
With Pearl-2 you can share any kind of video, anytime, anywhere. Simple to use with a web-based portal for initial configuration, you get a drag and drop interface to create completely customizable layouts for your live stream.
You can choose to keep Pearl-2's default encoding settings or customize them to meet your exact needs. Control the video recorder and video switcher capabilities via the touchscreen or the tablet-friendly Epiphan Live interface.
Add a high-resolution streaming camera to your video lecture capture with the EC20 4K SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom for Lecture Capture from Epiphan.
The EC20 supports resolutions up to UHD 4K60 via IP, NDI HX2, and HDMI, and 1080p60 over 3G-SDI.
Designed for lecture capture, it features native integration with the Epiphan ecosystem, direct to Panopto recording, AI-powered auto-tracking with user-defined zones, and fleet management.
Epiphan EPI-ESP1909 Production Starter Pearl2 Bundle with EC20 PTZ Camera Features:
- Reliable, simple live streaming with Pearl-2's integrated live video production workflow
- Works with video sources from SD to 4K (separate add-on required for 4K)
- Connect up to six sources at once to encode and stream one 4K Ultra HD program, or up to six 1080p Full HD programs
- Use any combination of your video sources connected to the HDMI, 4K HDMI, or 12G-SDI, USB video input ports, or from network sources via NDI, RTSP, or SRT
- Sixth generation Intel i7 processor
- Use the touchscreen or Epiphan Live to preview and change the live content in your video programs
- See changes immediately in your live video stream, and on displays connected to Pearl-2’s 4K HDMI video output ports
- Simultaneously send live stream to YouTube, Facebook, and any other CDN or video portal
- At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes
- Control your streaming and recording from any mobile device or computer on your local network
- Capture embedded HDMI and SDI audio, or use the XLR/RCA ports for professional level audio from mixing consoles and sound equipment
- Built-in attenuation and gain adjustment
- Design your own custom layouts, including picture-in-picture, by using the drag and drop editor in Pearl-2’s web-based Admin panel
- Combine, crop, and scale up to six video sources
- Customize the video source completely with backgrounds, overlay images, text, and timestamping
- Hold hundreds of hours of HD recordings on the 512GB solid-state hard drive
- Configure automatic file transfer to a networked storage or local USB drive via USB 3.0, to ensure your files are always protected
- Connect your headphones and monitor audio using the front-mounted 3.5mm audio jack and on-screen VU meter
- Send the content to a larger confidence monitor with Pearl-2’s two 4K HDMI video output ports
- Use Pearl-2’s built-in streaming server to share via unicast or multicast stream to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP, and SAP
- Publish your live video stream to a large audience using an enterprise streaming server or CDN using RTMP or RTSP
- Supported CDNs including Facebook Live, YouTube, Wowza, Livestream, Akamai, Ustream, and more
- Stream your final program output, in any desired resolution, while also recording high quality ISOs for post-processing
- Pearl-2 integrates easily with content management systems (CMS) and with learning management systems (LMS) such as Blackboard, Kaltura, Mediasite, and Moodle
Why not buy this Epiphan EPI-ESP1909 Production Starter Pearl2 Bundle with EC20 PTZ Camera from HDTV Supply today?
Epiphan EPI-ESP1909 Production Starter Pearl2 Bundle with EC20 PTZ Camera Specifications:
- Processing
- Processing Resolution: DCI 4K
- Input
- Video Inputs
- 2x BNC (12G-SDI)
- 4x HDMI (DVI/HDMI 1.4a)
- 1x RJ45 (HX/NDI)
- Audio Inputs
- 4x XLR 3-Pin Stereo Analog Female
- 1x 2RCA Stereo Analog Female
- Video Inputs
- Output
- Video Outputs
- 1x HDMI (1.4a)
- 1x HDMI (2.0)
- Audio Outputs
- 1x 1/8" / 3.5 mm TRS Stereo Analog Female
- Embedded Audio Output: HDMI
- Video Outputs
- Connectivity
- HDCP Support: Yes
- IP Encoding/Decoding
- IP Video: H.264: 4096 x 2160 Encoding
- Internal Recording
- Internal Storage: 512 GB
- Display
- Display Size: 4.3"
- Screen Resolution: 800 x 480
- Hardware
- Wireless: No
- Power
- Power Consumption: Device: 100 to 240 VAC
- General
- Operating Conditions: 32 to 104°F / 0 to 40°C
- Dimensions: 11.81 x 9.45 x 3.54" / 30 x 24 x 8.99 cm
- Weight: 8.4 lb / 3.8 kg
- Packaging Info
- Package Weight: 19.8 lb
- Box Dimensions (LxWxH): 19.1 x 15.7 x 7.9"
Why not buy this Epiphan EPI-ESP1909 Production Starter Pearl2 Bundle with EC20 PTZ Camera from HDTV Supply today?
