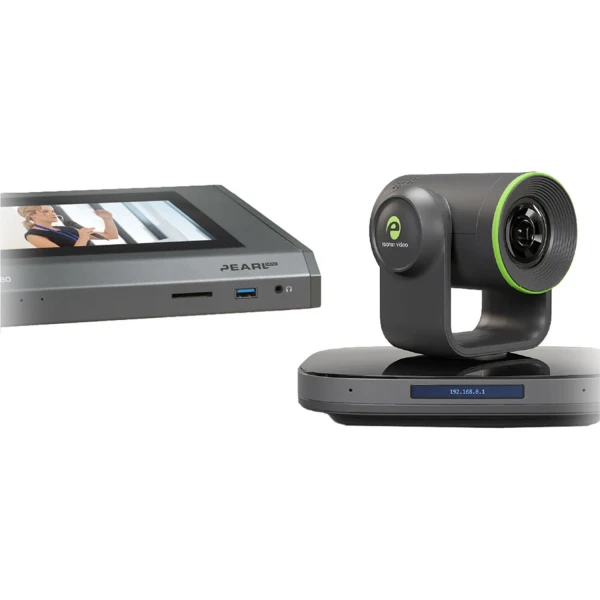

This Epiphan EPI-ESP1906 Studio Essential Mini Bundle with EC20 PTZ Camera comprises the Pearl Mini streamer/recorder and the EC20 PTZ Camera with wall and ceiling mounts.
This simple, self-serve setup is ideal for quick recording and live events, letting any user enter your studio space and hit record to capture professional-looking content.
The Epiphan Pearl Mini Live Video Production System lets you switch, record, and stream up to three HD video inputs.
This touchscreen-operated device will fit right into classrooms, lecture halls, houses of worship, or any other situation that requires simple switching operations with the capacity to record and stream content live.
On the rear panel, SDI and HDMI inputs are available for cameras, playback devices, and computers; no scaling or scan-conversion is necessary. For audio, combo jacks support XLR microphones and 1/4" TRS connections.
3.5mm microphone and stereo RCA line inputs are available as well. An HDMI output can be used to monitor any video input or the switched program.
Built-in, hardware-accelerated encoding happens in real time for streaming and recording. A choice of formats is available to match your workflow for streaming to popular CDNs or recording to an SD card.
After recording to the card, you have the option of copying the recording to an attached USB drive.
Add a high-resolution streaming camera to your video lecture capture with the EC20 4K SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom for Lecture Capture from Epiphan.
The EC20 supports resolutions up to UHD 4K60 via IP, NDI HX2, and HDMI, and 1080p60 over 3G-SDI.
Designed for lecture capture, it features native integration with the Epiphan ecosystem, direct to Panopto recording, AI-powered auto-tracking with user-defined zones, and fleet management.
Epiphan EPI-ESP1906 Studio Essential Mini Bundle with EC20 PTZ Camera Features:
- Pearl Mini 3-Input Streamer/Recorder
- 1080p60 3G-SDI & HDMI Video Inputs
- Simultaneous 1080p30 LAN & HDMI Outputs
- EC20 4K Streaming PTZ Camera, 20x Zoom
- HDMI, 3G-SDI, NDI HX 2, and IP Output
- Touchscreen Monitor, SD Card Recording
- Custom Layouts, PiP & Image Overlays
- XLR & 3.5mm Mic, TRS & RCA Line Inputs
- 60° Horizontal Angle of View
- Wall and Ceiling Camera Mounts
Why not buy this Epiphan EPI-ESP1906 Studio Essential Mini Bundle with EC20 PTZ Camera from HDTV Supply today?
Epiphan EPI-ESP1906 Studio Essential Mini Bundle with EC20 PTZ Camera Specifications:
- Processing
- Processing Resolution: 1080p
- Color Processing: 8-Bit 4:2:0
- Input
- Video Inputs
- 1x BNC (3G-SDI) Female
- 2x HDMI (1.4a) Female
- 2x USB-A (3.0)
- Input Video Format
- HDMI (4:4:4 RGB)
- WUXGA (1920 x 1200) up to 60 fps
- 1080p up to 60 fps
- 720p up to 60 fps
- 576p up to 60 fps
- 480p up to 60 fps
- HDMI (4:4:4/4:2:2 YCC)
- WUXGA (1920 x 1200) up to 60 fps
- 1080p up to 60 fps
- 720p up to 60 fps
- 576p up to 60 fps
- 480p up to 60 fps
- SDI (4:4:4 RGB)
- WUXGA (1920 x 1200) up to 60 fps
- 1080p up to 60 fps
- 720p up to 60 fps
- 576p up to 60 fps
- 480p up to 60 fps
- SDI (4:2:2 YCC)
- WUXGA (1920 x 1200) up to 60 fps
- 1080p up to 60 fps
- 720p up to 60 fps
- 576p up to 60 fps
- 480p up to 60 fps
- HDMI (4:4:4 RGB)
- Audio Inputs
- 2x XLR 3-Pin Mic/Line Female
- 1x 2RCA Stereo Analog Female
- 1x 1/8" / 3.5 mm TRS Mic
- Input Audio Format: AES/EBU
- Embedded Audio Input
- HDMI
- SDI
- USB-A
- RJ45
- Video Inputs
- Output
- Video Outputs
- 1x HDMI (1.4a)
- 1x RJ45
- Output Video Format
- HDMI
- 1080p 30 fps
- RJ45
- 1080p up to 30 fps
- HDMI
- Audio Outputs
- 1x 1/8" / 3.5 mm TRS
- Output Audio Format: AES/EBU
- Embedded Audio Output
- HDMI
- RJ45
- Video Outputs
- Connectivity
- Other I/O: 1x USB-A Control
- HDCP Support: Yes
- IP Encoding/Decoding
- IP Video: H.264
- Encoding Resolution: 640 x 480 to 1920 x 1200
- Transport Protocols: HLS, HTTP, NDI/HX, RTMP, RTMPS, RTSP, SAP, SRT, TCP, TS-MPEG, UDP
- Simultaneous Streams: 2 Streams
- Compatible Services: Facebook Live, YouTube Live
- Internal Recording
- Recording Media: 1x SD (Unspecified Type), SATA M.2 SSD
- Display
- Display Size: 7"
- Hardware
- Wireless: No
- Power
- Power I/O: 1x Barrel (12 VDC up to 7 A) Input
- Power Consumption
- Power Supply: 100 to 240 VAC at 1.5 A (60 W)
- Power Supply: 100 to 240 VAC at 1.3 A (84 W)
- General
- Operating Conditions: 32 to 104°F / 0 to 40°C
- Certifications: FCC Part 15, RoHS
- Dimensions: 14.2 x 6.8 x 2.4" / 361 x 172 x 60 mm
- Weight: 3.7 lb / 1.7 kg
- Packaging Info
- Package Weight: 9.445 lb
- Box Dimensions (LxWxH): 18.3 x 15.7 x 9.6"
