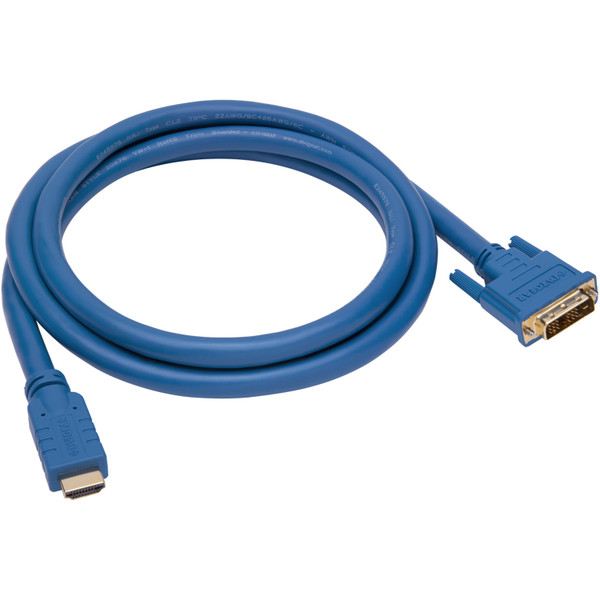

This DVIGear DVI-2450-SHR HDMI to DVI-D Super High Resolution Copper Cables, 50 meters is a Super High Resolution (SHR) HDMI to DVI cables are engineered for unsurpassed performance and reliability in mission critical applications
These cables are designed to transport high speed digital DVI and HDMI signals over very long distances while maintaining pristine signal / bit integrity.
High-Speed Signals — Long distance transport of high resolution DVI and HDMI signals over copper cables must overcome several challenges, such as insertion loss, differential skew and jitter
Insertion loss is caused by cable capacitance, which acts as a low-pass filter, blocking higher frequency signal components from passing
Skew occurs when the differential DVI and HDMI signals get delayed and become out of phase as they pass over a long cable
Both factors contribute to increased digital jitter, which degrades the performance of the cable
This jitter becomes more severe with higher resolutions and longer cable distances
Conventional cables that support lower resolutions at short distances are often unable to support the data rates required by higher resolutions at longer distances
The resulting video can be disrupted by visual artifacts or may not be visible at all.
Advanced Design — Built to overcome these challenges, the SHR Series HDMI to DVI Cables are constructed using heavy gauge 22AWG copper wires
This increases the cross-sectional cable area and decreases the capacitance of the cables, which allows signals with higher data rates to pass with minimal jitter
When coupled with DVIGear’s Active Cable Extenders (ACE), cable lengths of up to 200 ft. (~ 60 meters) are possible while maintaining full compliance with DVI and HDMI signal parameters
The combination of these products are active copper cables with minimal insertion loss and skew
These cables rival the performance of fiber cables at a fraction of the cost, while providing superior ruggedness and durability.
DVIGear DVI-2450-SHR HDMI to DVI-D Super High Resolution Copper Cables, 50 meters Features:
- Cables 20m or longer include DVIGear's ACE (Active Cable Extender)
- Supports HDTV resolutions up to 1080p with 12-bit color
- Supports PC resolutions up to 1920x1200 and 2048x1080 at cable lengths up to 60m
- Supports HDMI data rates up to 3.4 Gpbs. at lengths up to 7.5m
- Supports HDMI data rates up to 2.25 Gbps. at lengths up to 40m
- Supports PC data rates up to 1.65 Gbps. at lengths up to 60m
- Heavy-duty 22AWG copper wires provide minimal insertion loss
- Ultra-low Skew guarantees unsurpassed digital fidelity
- Triple shielded for superior noise immunity
- Dual UL Ratings: UL13 (CL2) and UL758 (AWM20276). These cables are in-wall rated.
Why not buy this DVIGear DVI-2450-SHR HDMI to DVI-D Super High Resolution Copper Cables, 50 meters today?
DVIGear DVI-2450-SHR HDMI to DVI-D Super High Resolution Copper Cables, 50 meters Specifications:
- Model
- Product Designation: SHR
- Product Description: 22AWG HDMI to DVI-D Cables
- Connectors
- Input / Output Connectors: 1x 19-pin HDMI Male Connector, 1x 18+1 DVI Male Connector
- Contacts: 19 pins, 30μ Gold Plated, long life design
- Shell: Gold Flash Plated
- Performance
- Standards Compliance: DVI 1.0, HDMI 1.3
- Maximum Pixel Clock Frequency:
- 165 MHz - up to 60 meters
- 225 MHz - up to 40 meters
- 340 MHz - up to 7.5 meters
- Maximum Bit Rate (per Channel):
- 1.65 Gbps - up to 60 meters
- 2.25 Gbps - up to 40 meters
- 3.40 Gbps - up to 7.5 meters
- Maximum Bit Rate (Aggregate):
- 4.95 Gbps - up to 60 meters
- 6.75 Gbps - up to 40 meters
- 10.2 Gbps - up to 7.5 meters
- Supported HDTV Resolutions: 1080p / 60 Hz with 8, 10 and 12-bit color
- Supported Single-Link PC Resolutions: Up to 2048x1080, 1920x1200
- Supported Dual-Link PC Resolutions: n/a
- Cable Equalization: DVIGear's Active Cable Extender (ACE) is included with cables 50 meters (~ 65.6 ft.) and longer.
- Typical Parametric Data
- Voltage Rating: 75 V
- Differential Impedance: 100 ohms ± 5%
- Insertion Loss (SDD21): < 32 dB @ 825 MHz with 60 meter cable
- Intra-pair Skew: < 2.2 nsec (from 250 MHz - 2.5 GHz) with 60 meter cable
- Inter-pair Skew: < 150 psec (from 250 MHz - 2.5 GHz) with 60 meter cable
- Far End Crosstalk (FEXT): < -20 dB
- Propagation Delay: 4.55 nsec/meter
- Cable Lengths
- Available Cable Lengths (meters) (1): 0.5, 1, 2, 3, 5, 7.5, 10, 12.5, 15, 20, 25, 30, 35, 40, 45, 50, 60
- Available Cable Lengths (ft.) (1): 1.6, 3.3, 6.6, 9.8, 16.4, 24.6, 32.8, 41.0, 49.2, 65.6, 82.0, 98.4, 114.8,
- 131.2, 147.6, 164.0, 196.9
- Maximum Cable Length: 200 ft. (~ 60 meters)
- Mechanical
- Construction: 19 Conductor Cable with 4x high speed twisted pairs
- High Speed Conductors: 22AWG, FM-PE+SKIN Construction
- Shielding: Triple Shielding
- Jacket Material / Color: PVC / Blue (PMS 301c)
- Outside Diameter: 11.50 ± 0.20 mm
- Minimum Bend Radius: 43.5 mm
- Environmental
- Operating Temperature: -13° to 140° F (-25° to 60° C)
- Storage Temperature: -40° to 167° F (-40° to 75° C)
- Humidity (storage / operating): 10% to 90% (non-condensing)
- Regulatory Approvals
- Compliance:
- UL13 (CL2)
- UL758 (AWM20276)
- RoHS
- UL File Numbers:
- AVLV2.E245407
- AVLV8.E245407
- QPTZ.E245576
- Warranty
- Limited Warranty: 3 Years
- Accessories Included
- DVIGear's Active Cable Extender (ACE) is included with cables 50 meters (~ 65.6 ft.) and longer.
Why not buy this DVIGear DVI-2450-SHR HDMI to DVI-D Super High Resolution Copper Cables, 50 meters today?
DVIGear DVI-2450-SHR Specifications
Why not buy this DVIGear DVI-2450-SHR HDMI to DVI-D Super High Resolution Copper Cables, 50 meters today?
Will this cable carry 1080p/60 video with high color depth?
A: Yes — the cable supports 1080p/60 with 8-, 10- and 12ābit color.
What HDMI/DVI data rates does the cable support at different lengths?
A: The cable supports up to 3.40 Gbps per channel at short runs, 2.25 Gbps per channel to moderate lengths, and 1.65 Gbps per channel for the longest listed lengths.
What pixel clock frequencies are supported and how do they vary by length?
A: Supported pixel clocks are 340 MHz at short lengths, 225 MHz to moderate lengths, and 165 MHz to the longest listed length.
Is the cable single-link or dual-link DVI?
A: Single-link; dual-link is listed as not applicable.
What electrical/mechanical design features reduce insertion loss and skew?
A: The cable uses heavy 22AWG conductors, four high-speed twisted pairs, and triple shielding to lower capacitance, insertion loss, and skew.
What impedance and insertion-loss characteristics are documented for long runs?
A: The cable's differential impedance is 100 ohms ±5%, and insertion loss is listed as under 32 dB at 825 MHz for a 60 meter cable.
What connector types and contact plating does this cable use?
A: It uses a 19āpin HDMI male and an 18+1 DVI male connector with 30μ goldāplated contacts and a goldāflash plated shell.
Can I run 1920x1200 PC resolution over this cable at long distances?
A: Yes — the cable supports PC resolutions up to 1920x1200 at the longer listed lengths.
Is this cable suitable for in-wall installation?
A: Yes — it carries dual UL ratings that include an in-wall rating (UL13 / CL2 and UL758 AWM20276).
What is the stated maximum practical cable length for these SHR cables?
A: The documentation lists a maximum cable length of about 200 ft. (approximately 60 meters).
