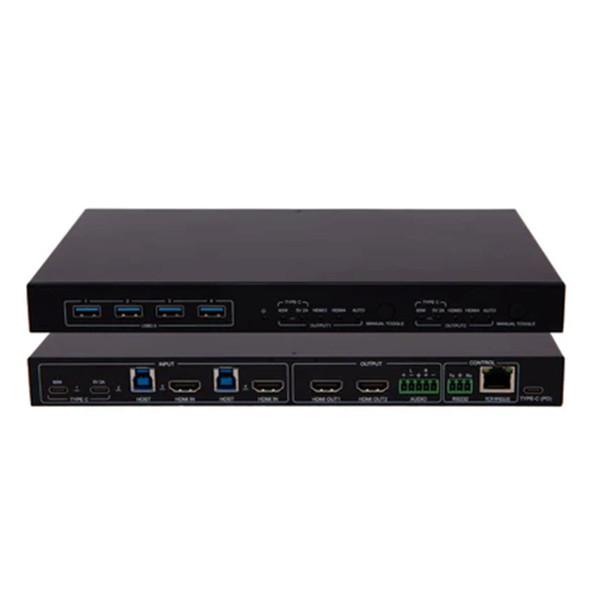

This DVDO USBC-HDMI-PS-42 4K 4x2 Presentation Switcher with USB-C & HDMI Inputs is a 4x2 presentation switcher with 2 HDMI inputs, 2 USB-C inputs and 2 HDMI outputs with a separate audio output.
The HDMI inputs support incoming video signals with resolutions up to 4K60 4:4:4 at 18Gbps. The USB-C inputs support resolutions up to 4K30 and can each drive both HDMI outputs through the DP 1.2 MST function.
The first USB-C input provides 65W charging and the second USB-C input provides 10W charging for mobile devices.
The unit includes 4 USB 3.2 type-A ports on the back panel for peripherals as well as 2 USB 3.2 type-B ports on the front panel for host devices.
It can be controlled over IP, RS-232, CEC or via the front panel buttons.
DVDO USBC-HDMI-PS-42 4K 4x2 Presentation Switcher with USB-C & HDMI Inputs Features:
- Two HDMI inputs support resolutions up to 4K@60 4:4:4 18Gbps
- HDMI 2.0 & HDCP2.2 compliant
- HDMI audio pass-through + separate audio output with de-embedding
- Two USB-C 3.2 Gen 1 inputs support video resolutions up to 4K30 4:2:0, data transfer up to 5Gbps and 65W charging (first port)
- USB-C inputs support DP 1.2 MST (Multi-Stream Transport) function
- Dual HDMI output with conference, matrix, mirror & manual modes as well as 4K to 1080p downscaling
- Four USB 3.2 Gen 1 ports (5Gbps) for peripherals such as KVM, cameras, speakerphones, touch monitors, etc…
- Two additional USB 3.2 ports for host switching
- CEC control & EDID management
- Controllable via front panel, RS232, TCP/IP (GUI) and Auto-switching
- Firmware upgraded by TCP/IP (GUI)
Why not buy this DVDO USBC-HDMI-PS-42 4K 4x2 Presentation Switcher with USB-C & HDMI Inputs today?
DVDO-USBC-HDMI-PS-42 User Manual
DVDO-USBC-HDMI-PS-42 Datasheet
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO USBC-HDMI-PS-42 4K 4x2 Presentation Switcher with USB-C & HDMI Inputs today?
What video resolutions do the USB‑C inputs support and can a USB‑C host drive both HDMI outputs?
A: Each USB‑C input supports video up to 4K@30Hz and can drive both HDMI outputs using DP 1.2 MST.
How much charging power do the USB‑C ports provide?
A: USB‑C input 1 provides up to 65W charging and USB‑C input 2 provides 10W (5V 2A) charging for mobile devices.
Can the switcher downscale 4K to 1080p and can that be controlled per output?
A: Yes — the unit supports 4K to 1080p downscaling and the downscaling function can be enabled or disabled for HDMI output 1.
Does the device expose a COM port on USB‑C1 for RS‑232 control?
A: Yes — the RS‑232 control can use the phoenix connector or the USB‑C input #1, which has a built‑in COM port.
How do I access the web GUI and what are the default network settings?
A: You can access the TCP/IP GUI by browsing to 192.168.1.239 (default) and logging in with username admin and password admin.
Can I control connected displays’ 5V HPD/TMDS signals from the GUI?
A: Yes — the HDMI outputs’ 5V (HPD) and TMDS clock signals can be turned ON or OFF from the controller.
