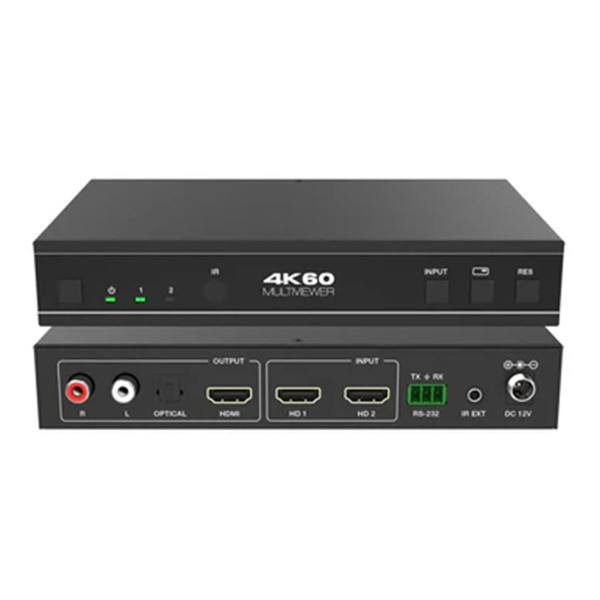

This DVDO Switcher-21SS-MV 4K 2x1 Seamless HDMI Switcher with Multiview & Audio Output is a 2x1 seamless HDMI switcher that can route up to two sources to a single display.
It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.
The HDMI output has separate analog and optical audio connections.
DVDO-Switcher-21SS-MV offers 4 different display modes including a single view mode and 3 multiview modes allowing both sources to be displayed on the same screen.
The unit can be controlled via the front panel buttons, IR remote, OSD menu navigation, control software or RS-232.
DVDO Switcher-21SS-MV 4K 2x1 Seamless HDMI Switcher with Multiview & Audio Output Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Supports resolutions up to 4K@60Hz 4:4:4 18Gbps
- Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
- 4 display modes: Single, PIP, PBP (1), PBP (2)
- Seamless switching
- Audio de-embedding via analog and optical fiber audio ports
- Volume control and independent audio selection
- EDID management
- Control via front panel buttons, IR remote, OSD menu navigation, control software, RS-232
Why not buy this DVDO Switcher-21SS-MV 4K 2x1 Seamless HDMI Switcher with Multiview & Audio Output today?
DVDO-Switcher-21SS-MV User Manual
DVDO-Switcher-21SS-MV Datasheet
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Switcher-21SS-MV 4K 2x1 Seamless HDMI Switcher with Multiview & Audio Output today?
What multiview modes and layout controls are available?
A: It offers four display modes — SINGLE, PIP, PBP (1) and PBP (2) — with input selection, PIP size/position control, and PBP aspect options.
Can I run the Controller software from my PC and connect to the switcher?
A: Yes — the Controller software connects to the device over RS‑232 using an RS‑232/USB adapter, selecting COM Control Mode and the port/baud (default 115200) in the software.
Will this box accept HDCP 2.2 protected content?
A: Yes — the device is HDCP 2.2 and HDCP 1.x compliant.
Can the unit automatically switch inputs when a source changes?
A: Yes — an Auto Switch feature can be enabled or disabled in SINGLE mode to automatically switch input source.
What formats will the optical (S/PDIF) output carry?
A: The optical output supports Dolby Digital, DTS 5.1 and PCM 2.0; it does not support high‑bit‑rate (HBR) audio.
Does the manual recommend protecting the unit from power surges?
A: Yes — the manual recommends using surge protection to protect the device from electrical spikes and extend its life.
